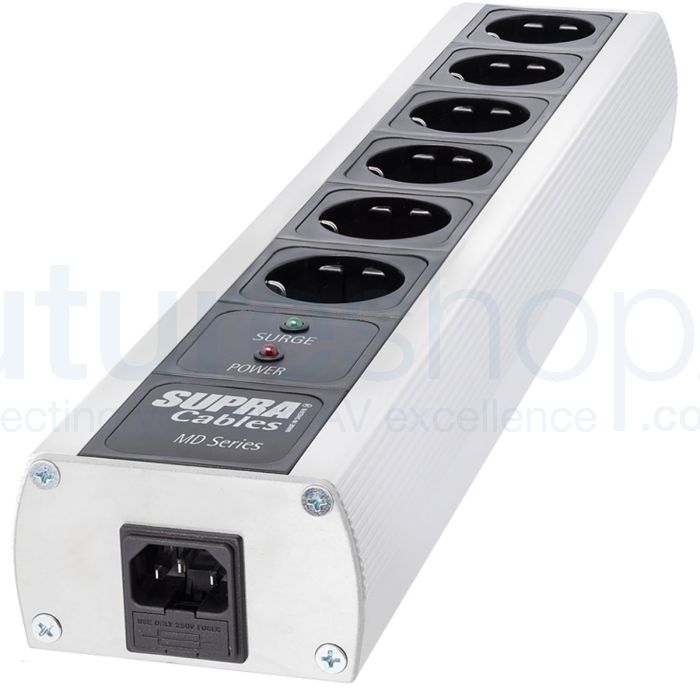

Supra LoRad Mk3 Surge-Protected Schuko Mains Distribution Block

Supra LoRad Mk3 Surge-Protected Schuko Mains Distribution Block

Please Note : Power Cables are not supplied with this block. 2, 3, 4 & 6 way power blocks require a 10A IEC power cable for the 10A inlet. 8, 10 & 15 way power blocks require a 16A IEC power cable for the 16A inlet.

The new EU Mk3 mains blocks are greatly improvement on the MD06 Mk2 version. Better connectors, filters and surge protection. All of the parts are made in Germany and Sweden and are assembled in the Supra factory, Ljungskile, Sweden. The new range will be available in 6, 8, even 10 sockets per block. Once safety approval has been gained, they expect to have UK versions available in due course. A shielded mains distribution block in Aluminium with surge protection. Free from noise deriving from a variety of noise fields from e.g. cell phones, DECT phones, dimmers and many other domestic electrical equipment? SUPRA MD is a sound and performance enhancing mains distribution strip, containing a proprietary SUPRA NIF, Non-Intrusive Filtering circuitry, providing a mild noise and radio frequency filtering that will not slow down or mute the dynamics from your Hi-Fi audio system. The conscious Hi-Fi enthusiast connects the Supra MD mains distribution strip only to wall sockets with earth terminal using Supra LoRad mains flex (optional).

Features:

• LoRad stands for low radiation of electric and magnetic alternating fields, keeping you and your family free from harmful influence
• The screen protects your equipment from radiated mains, RF pick-up and allows you to enjoy your hi-fi set or TV's full potential
• The Surge Protection will give your hifi gear the chance to survive a close by lightning strike
• LoRad result in a cleaner sound, better picture and a more healthy home and working invironment with low levels of harmful fields
• Unbeatable price-performance ratio
• 3-way Surge Protection
• Supra NIF Transient Filter

3-Way Surge Protection

The SP-models are all equipped with the Supra Surge Protection which protects all three ways; i.e. Live to Earth, Neutral to Earth and Live to Neutral. The standard surge protection manufacturer think that it is sufficient to offer only Live to Neutral protection, and they do not protect against field surges by proximate lightning strikes. The only better way to protect your equipment compared to Supra SP is to disconnect all mains power, interconnects and communications with adjacent devices completely. Unfortunatly the thunder storms does not follow a schedule, next time you may be at work...

All filtering and all protection need a mains wall socket with a ground terminal to operate. If your multimedia- and hifi equipment is of a certain standard, they will probably require ground connection themselves and use a IEC-320 socket for detachable mains power cords. If your equipment is such and you do not have ground terminal in your mains wall sockets, we recommend you to contact your landlord and/or an electrician to arrange for ground connection. Doing so, will undoubtedly both increase sound quality and the security for your equipment.

SUPRA NIF Transient Filter

A Non-Intrusive Filtering circuitry, providing a mild noise and radio frequency filtering that will not slow down or mute the dynamics from your Hi-Fi audio system.

Specification:

• 2-way to 6-way blocks:
• • Output 1 - Non Filtered, Surge protected
  • Outputs 2 to 6 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
• 8-way to 15-way blocks:
• • Outputs 1 & 2 - Non filtered, Surge protected
  • Outputs 3 to 15 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
• 2, 3, 4 & 6 way power blocks require a 10A IEC power cable for the 10A inlet. 8, 10 & 15 way power blocks require a 16A IEC power cable for the 16A inlet.
• Chassis: Aluminium
• Sockets: European Standard
• Inlet: SUPRA MCH-10, IEC320 10A
• Available Number of Outlets: 2, 3, 4, 6, 8, 10, 15
• Outlets: Schuko EU sockets, fully shielded in Aluminium
• Radiation Free, with Non-Intrusive Filtering and 3-way Surge Protection
• NIF-filter & Shielded
• Radio frequency interference reduced by 40dB!
• Internal wiring of 2.5sq mm oxygen free copper conductors
• Supports a staggering 2300W of continuous power!
• Protects you and your Hi-Fi audio system from harmful noise fields and radiation!
• Max AC Current: 10A
• Max AC Voltage: 250V
• Max Continuous Power: 2300W
• Fuse: Ceramic 10A, Slow
• Surge Protection: Type 3
• Uoc = 2.5kV(P-N), 4.0kV(P(N)-PE)
• Up = 2.0kV(P-N), 2.05V(P(N)-PE)
• Weight: 1.3Kg
• Dimensions: (LxWxH): 432mm x 89mm x 53mm
• Suitable for wall mounting
