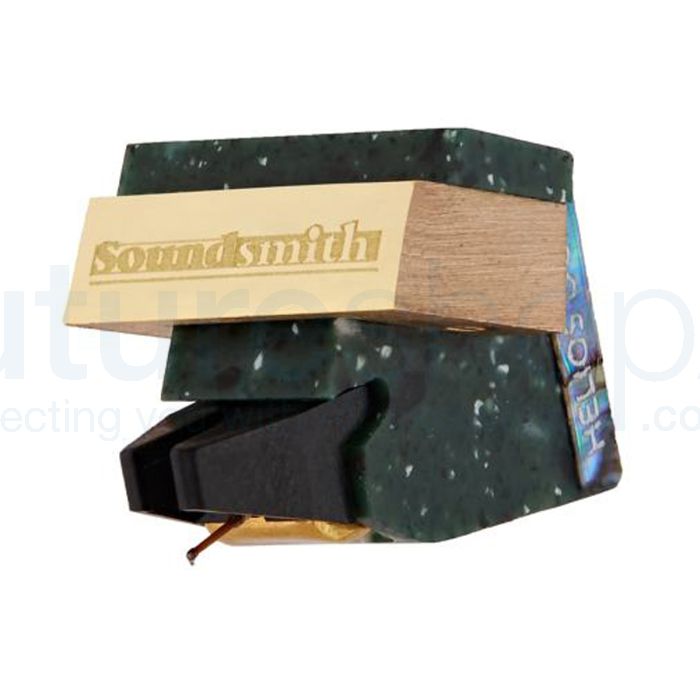

Soundsmith Helios Medium-Output HiFi Turntable Cartridge
£7,999.00 £6,665.83
SKU
Soundsmith Helios
Free UK Delivery
10 Years
New
Special Order
The Helios is the medium-output version of the Hyperion- the top-of-the-line high-output cartridge by Soundsmith. Helios features a specially-designed, hand-formed "cactus spine" cantilever and nude diamond stylus, with the stylus available in Contact Line or Optimised Contour Contact Line shapes. The Contact Line shape is specifically designed to ensure maximum contact by matching the shape of the stylus used to etch grooves in vinyl records. As a part of Soundsmith's Fixed Coil range, Helios also benefits from drastically reduced mass and noise relayed back to your record, as well as the ability to minimise 'stylus jitter', allowing this cartridge to deliver exceptionally clean and detailed sound with minimal distortion. Every Helios cartridge is handmade in upstate New York by Peter Ledermann, President & Chief Engineer of Soundsmith.
Soundsmith Helios Medium-Output HiFi Turntable Cartridge
The Helios is the medium-output version of the Hyperion- the top-of-the-line high-output cartridge by Soundsmith. Helios features a specially-designed, hand-formed "cactus spine" cantilever and nude diamond stylus, with the stylus available in Contact Line or Optimised Contour Contact Line shapes. The Contact Line shape is specifically designed to ensure maximum contact by matching the shape of the stylus used to etch grooves in vinyl records. As a part of Soundsmith's Fixed Coil range, Helios also benefits from drastically reduced mass and noise relayed back to your record, as well as the ability to minimise 'stylus jitter', allowing this cartridge to deliver exceptionally clean and detailed sound with minimal distortion. Every Helios cartridge is handmade in upstate New York by Peter Ledermann, President & Chief Engineer of Soundsmith.
What Soundsmith say
Our new medium output design, the Helios is otherwise technically identical to the Hyperion. The Hyperion is the cartridge of choice for the most esteemed audio equipment manufacturers. Why? Because when they exhibit their gear at Hi-Fi shows, they want their turntable, amplifier or speaker systems to sound the very best that they can! Peter Ledermann‘s radical design utilizes an actual “cactus spine” for the cantilever. The naturally tapered shape, stacked columnar fibers and desiccated resin damping fit the exact parameters of the perfect cantilever: Low mass, extreme rigidity, internal damping, and tremendous strength.
Features
Cartridge Type: Fixed Coil
Stylus Type: Contact Line/ O.C Contact Line
Output: Medium
Output Voltage: 1.1mV
Specification
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Contact Line, Nude, 0.10 mm square Selected
Radius of Curvature: Contact Line or Optimized Contact Line
Cantilever: Hand formed/treated Cactus "Spine"
Recommended Tracking Force: 1.8 - 2.2 g
Effective Tip Mass: 0.30 mg
Compliance: 12 µm/mN vertical, 7 µm/mN horizontal
Frequence Response: 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: > 36 dB
Channel Separation @ 50 - 15,000 Hz: > 25 dB
Channel Difference: < 0.5 dB
Output Voltage @ 5cm/sec: > 1.10 mV (MEDIUM)
DC Resistance (DCR): 110Ω
Coil Inductance per channel: 30 mH
Suggested Preamp Gain: 48 - 54 dB
Cartridge Weight: 10.25 g
Recommended Load Resistance: ≥ 1.5kΩ
Recommended Load Capacitance: n/a
About Soundsmith
Soundsmith, a speciality audio manufacturer located just north of New York City, has been a renowned name in the audiophile world since its establishment in 1972. With a commitment to exceptional sonic quality and exceptional value, Soundsmith has earned an enviable reputation among audio enthusiasts. The company is best known for its cartridge expertise, including cartridge restoration and groundbreaking Strain Gauge and Fixed Coil cartridges. Every Soundsmith product is skillfully hand-crafted by a team of skilled artisans and engineers in the company's Peekskill, NY factory.
Made in the USA, Soundsmith takes pride in its four-decade presence in Westchester County, New York. The company offers audio repairs for a wide range of major brands, serving customers from all around the globe. Brands such as Audio Research, Revox, Bang & Olufsen, Nakamichi, Tandberg, Halcro, DartZeel, Jeff Rowland, and McIntosh, among many others, trust Soundsmith for their equipment repairs. Moreover, Soundsmith has a long-standing history of designing and manufacturing various types of audio equipment, showcasing their unwavering dedication to achieving the pinnacle of audio reproduction.
When it comes to vinyl playback, nothing matters more than achieving the best possible sound quality. Soundsmith's highly respected, hand-made phono cartridges are coveted by turntable enthusiasts worldwide. With a wide range of models available, including the Hyperion MKII-MR, Hyperion, Sussurro Gold Limited Edition, Sussurro mk II, Paua mk II, Zephyr MIMC, Helios, Mezzo, Nautilus, Sotto Voce, Norma, The Voice, Aida, Boheme, Zephyr MK III, Carmen MK II, Otello, Irox Ultimate, and Irox Blue, Soundsmith ensures that every vinyl lover can find the perfect cartridge to suit their needs. The extensive range includes low-output and high-output models and specialised models designed for unique applications.
Choose Soundsmith for the ultimate vinyl experience. With their meticulous craftsmanship, unwavering commitment to quality, and a diverse range of phono cartridges, Soundsmith continues to elevate vinyl reproduction to new heights. Discover the perfect match for your turntable and unleash the full potential of your vinyl collection with Soundsmith Cartridges from Future Shop.
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Contact Line, Nude, 0.10 mm square Selected
Radius of Curvature: Contact Line or Optimized Contact Line
Cantilever: Hand formed/treated Cactus "Spine"
Recommended Tracking Force: 1.8 - 2.2 g
Effective Tip Mass: 0.30 mg
Compliance: 12 µm/mN vertical, 7 µm/mN horizontal
Frequence Response: 20 - 20,000 Hz ± 1.0 dB
Channel Separation @ 1000 Hz: > 36 dB
Channel Separation @ 50 - 15,000 Hz: > 25 dB
Channel Difference: < 0.5 dB
Output Voltage @ 5cm/sec: > 1.10 mV (MEDIUM)
DC Resistance (DCR): 110Ω
Coil Inductance per channel: 30 mH
Suggested Preamp Gain: 48 - 54 dB
Cartridge Weight: 10.25 g
Recommended Load Resistance: ≥ 1.5kΩ
Recommended Load Capacitance: n/a
