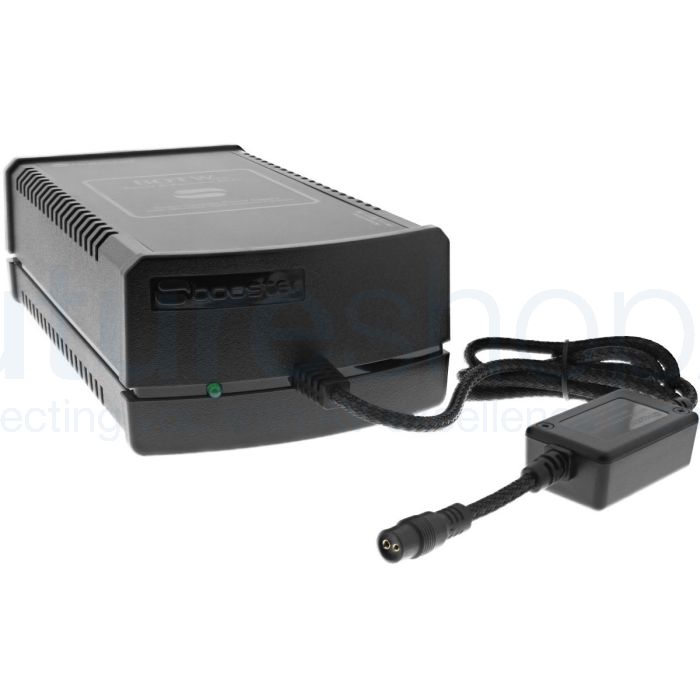

Sbooster BOTW MKII Linear Power Supply - 9-10V Rating

Sbooster BOTW MKII Linear Power Supply - 9-10V Rating

The Best of Two Worlds Power & Precision ECO MKII linear audio upgrade power supply (BOTW P&P ECO) is the successor of Sbooster's BOTW P&P ECO, which was introduced in the summer of 2015. The BOTW P&P ECO upgrade power supply combines power, precision and efficiency in a unique innovative manner and is the best choice for every audiophile.

With the BOTW P&P ECO audio upgrade, the purification of the current starts immediately there where the polluted current enters the upgrade. The dual-stage mains filter and an earth line choke clean the current from high-frequency pollution before the current reaches the transformer. The transformer is a custom-made audio grade transformer with electrostatic shielding and is magnetically shielded.

The electronic design is innovative: it gets 50% more output out of the used electronics and consumes even up to 35% less energy than a conventional design. The BOTW P&P ECO audio upgrade concept is so efficient that it consumes only a bit more energy than the standard supplied high efficient, but also highly polluting switch mode adapter. It costs you annually a couple of euro extra on your energy bill for a priceless sound experience.

Finally, at the end of the DC cable, the unique split current system has been placed. The power supply of the BOTW P&P ECO audio upgrade provides the split current system with continuous powerful and clean power, so the electronics can do their job profoundly, which is to buffer the power, so that the power supply becomes very fast, and to filter one last time the voltage and current before they enter the audio device.

This unique upgrade power supply with its large headroom delivers at all times sufficient clean power to the audio device to ensure a stable and continuous performance of the internal processes of the audio device in order to get the best performance out of the audio device.

This combination of power and precision results in “easy” music, a perfect soundstage and a natural detailed sound.

Features:

• 50% more output current
• Power saving design
• 2 characteristics in 1 product - power for high current demanding equipment and precision for noise-sensitive equipment
• 3 selectable output voltages
• IEC 14 power inlet for High-end mains cables
• High-performance dual stage mains filter
• Earth line choke
• Overvoltage protection
• Custom made high efficient audio grade transformer
• High-quality polypropylene film capacitors
• No-noise Sbooster split current system
• High-quality PCB with double-sided 2oz. copper and a gold plated finish
• Better and thicker quality heatsink
• High-quality silver-plated copper with PTFE insulation internal wiring
• Transformer with electrostatic shielding and HF magnetic shielding
• Upgraded bulk capacitors
• Improved reference-circuit
• Next-generation split-current unit
• New DC-output cable with additional shielding, sleeve and gold plated connector pins
• Custom-made DC-plugs

Compatibility List

If your equipment is not listed below, please do not hesitate to contact Future Shop and we will confirm compatibility between the Sbooster BOTW MKII Linear Power Supply and your device.

Specification

• Output Voltage & Current: 9V - 2.33A, 10V - 1.25A, 10.5V - 1.1A
• Mains Voltage: 230V 50/60Hz as standard (Alternatives available upon request)
• Transformer: 50VA audio grade toroidal with electrostatic and magnetic shielding
• Mains filter: High-performance dual stage mains filter with earth line choke
• Rectifier bridge: Power Schottky barrier rectifiers
• Bulk capacitors: Low Impedance High Ripple Current Capacitors
• Regulator: High-current ultra-fast transient response LDO with an external high precision shunt reference circuit
• Filter capacitors: Non-inductive polypropylene film capacitors
• DC power cord: 95cm 16 AWG spiral shielded, additional shielding and quality sleeving, integrated Sbooster Split-current system and interchangeable gold plated DC-plug-connector
• UK mains cable supplied
• Size and Weight: 240*130*75mm 1.85Kg
• Safety approvals: CE/GS/CCC/KC/CTUVUS/FCC/PSB IEC60065 standard
• Warranty: 24 Months

Package Includes

• 1x BOTW P&P ECO Linear Power Supply
• 1x DC tip 0.7 x 2.5 x 9.5mm
• 1x DC tip 1.3 x 3.5 x 9.5mm
• 1x DC tip 1.7 x 4.0 x 9.5mm
• 1x DC tip 1.7 x 4.8 x 9.5mm
• 1x DC tip 2.1 x 5.5 x 9.5mm
• 1x DC tip 2.5 x 5.5 x 9.5mm
• 1x Manual
• 1x UK Mains cable

About Sbooster

Sbooster is an award-winning company founded by Wiebren Draaijer and Karin Hoks. With a passion for optimising audio and video equipment, Sbooster has gained global recognition for its intelligently designed products. Since its establishment in 2010, Sbooster has been receiving excellent reviews worldwide. What started as a small team in the Netherlands has now expanded to a larger workforce in their Sbooster factory located in Bulgaria. This growth allows them to deliver high-end quality products at a fair price. As more and more enthusiasts realise the significance of power in silence, Sbooster remains committed to silently upgrading the music experience.

Sbooster offers a range of cutting-edge products that enhance audio and video systems:

• Sbooster Power Supply: Sbooster BOTW power supplies are engineered to provide clean and sufficient power to your devices, optimising their performance. They are offered at different voltage options, and customers have successfully used them on equipment such as the Chord Electronics Qutest DAC.
• AC Upgrade Power Supplies: Upgrade your standard external power supply with Sbooster's "Best of Two Worlds Power & Precision ECO" (BOTW P&P ECO) power supplies for improved sound and vision.
• Sbooster Ultra MKII: Sbooster Ultras offer advanced filtering and are available as an optional upgrade for select models, taking the performance to the next level.
• Tweaks: Sbooster's tweaks further refine your audio and video setup, allowing you to achieve the best possible results.

Why choose Sbooster? Many audio and video enthusiasts focus on various system elements, such as screens, speakers, cables, and amplifiers, but often overlook the importance of the power supply. The power supply heavily influences sound and vision quality, and a device can only perform at its best when provided with sufficient and clean power. Insufficient power can result in distorted sound, a flat stereo image, and an overall compromised performance. Sbooster offers a solution to this common issue with their upgrade products.

You can significantly enhance their performance by replacing or upgrading the standard external power supply of your audio and video devices with Sbooster's BOTW P&P ECO power supplies. The result is a noticeable improvement in sound and vision quality, allowing you to immerse yourself in your favourite music and videos. Choose Sbooster at Future Shop to unlock the true potential of your audio and video equipment. Elevate your listening and viewing experience with their innovative power supply solutions.
