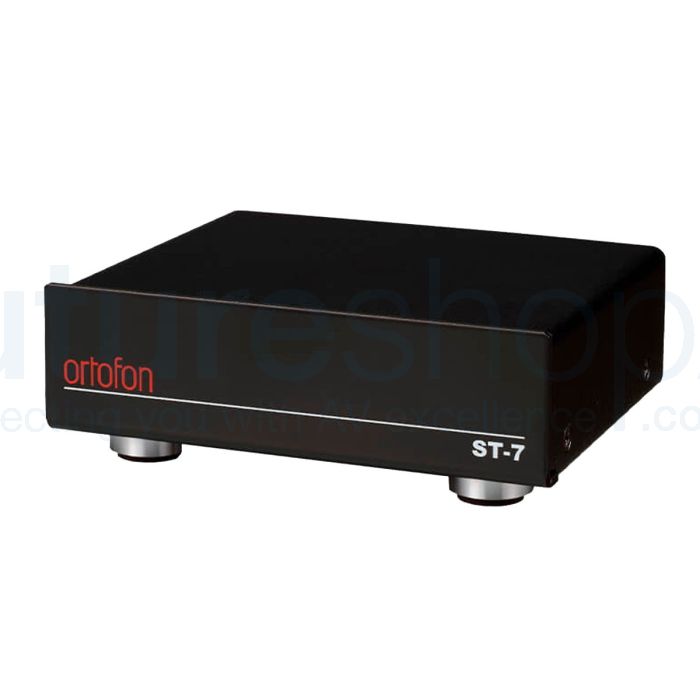

Ortofon ST-7 Step-Up Transformer
£699.00 £582.50
SKU
Ortofon ST-7
Free UK Delivery
12 Months
New
24 hours
Boasting a sophisticated electrical design, the ST-7 utilises high-quality internal wires and gold-plated terminals for optimum signal transmission. The unique sandwich winding structure of this transformer significantly improves the high-frequency response, resulting in a clear and open sound across the entire frequency range.
Related Products
Ortofon ST-7 Step-Up Transformer
This compact and stylish step-up transformer is a cost-effective solution for those seeking top-notch audio clarity and a lighter load on their phono stage.
Boasting a sophisticated electrical design, the ST-7 utilises high-quality internal wires and gold-plated terminals for optimum signal transmission. The unique sandwich winding structure of this transformer significantly improves the high-frequency response, resulting in a clear and open sound across the entire frequency range. Furthermore, the dual-mono design and individual shielding of the two channels enhance the imaging and minimize the impact of external noise.
Compatible with a wide range of cartridges, the ST-7 is particularly well-suited for the Ortofon MC Quintet Series and SPU Classic models. If you find yourself struggling with distortion or are uncomfortable with the amount of gain in your current system, this step-up transformer is the perfect solution. By boosting the signal from an MC cartridge to the level of an MM cartridge, you can achieve a louder signal without risking distortion.
Features
- Compact and stylish
- Sandwich winding structure
- Permalloy shielding housing for the left and right channels separately
ST-7 - a versatile MC transformer from Ortofon
Additionally, the dual-mono design, including the individual shielding of the two channels, improves the imaging of the transformer and reduces the influence of environmental noise.
The ST-7 transformer will be a perfect match for, among other MC cartridges, the MC Quintet Series, the SPU Classic models and SPU #1 models.
"If you're struggling with distortion or aren't comfortable with the amount of gain you're employing in your system then a Step-Up transformer might be what you need. Boosting the signal from an MC cartridge to the level of an MM cartridge gives you a louder signal without needing to boost it via your amp, and therefore risking distortion to your musical signal."
Kieran Pickaver - Henley Audio Sales Manager
Specification
- Frequency Response: 15 ~ 45 kHz (+0 dB -2.5 dB)
- Gain: 24 dB (47 kΩ / 1 kHz)
- Cartridge Impedance: 2 Ω ~ 60 Ω
- Load Impedance: > 47 kΩ
- Channel Balance: < 0.5 dB
- Channel Separation: 70 dB (1 kHz)
- Dimensions: 122(W) x 43.5(H) x 102(D) mm
- Including terminal: 113(D) mm
- Weight: 0.79 kg
About Ortofon
Ortofon is one of the world leader's in the development and manufacturing of turntable cartridges. The wealth of knowledge and expertise at Ortofon has been accumulating since 1918 with their first moving coil cartridge manufactured in 1948.
Today, Ortofon offers a wide range of cartridges for both DJ's and Hi-Fi audiophiles. Their offering includes moving magnets, moving coils, plug-and-play headshells, mono cartridges and 78RPM cartridges.
Throughout their range of cartridges, Ortofon maintains a set profile with each cartridge profile containing an individual sonic expression. All of Ortofon's range of cartridges includes a Red, Blue, Bronze and Black model.
First, in the range, are the Red cartridges which deliver open, dynamic sound with a slight touch of warmth. Next, the Blue Cartridges offer greater dynamic soundstages with improved detail and resolution. Following on, the Bronze cartridges improve the details in a way that pays respects to all elements of the track. Lastly, the Black cartridges are the best at everything. They are true to the groove with resolution and accurate insight into each recording.
Ortofon have made their cartridges suitable for the majority of turntables on the market at the moment. With a wide range of available models, there is an Ortofon cartridge to suit everyone.
Specification
- Frequency Response: 15 ~ 45 kHz (+0 dB -2.5 dB)
- Gain: 24 dB (47 kΩ / 1 kHz)
- Cartridge Impedance: 2 Ω ~ 60 Ω
- Load Impedance: > 47 kΩ
- Channel Balance: < 0.5 dB
- Channel Separation: 70 dB (1 kHz)
- Dimensions: 122(W) x 43.5(H) x 102(D) mm
- Including terminal: 113(D) mm
- Weight: 0.79 kg
