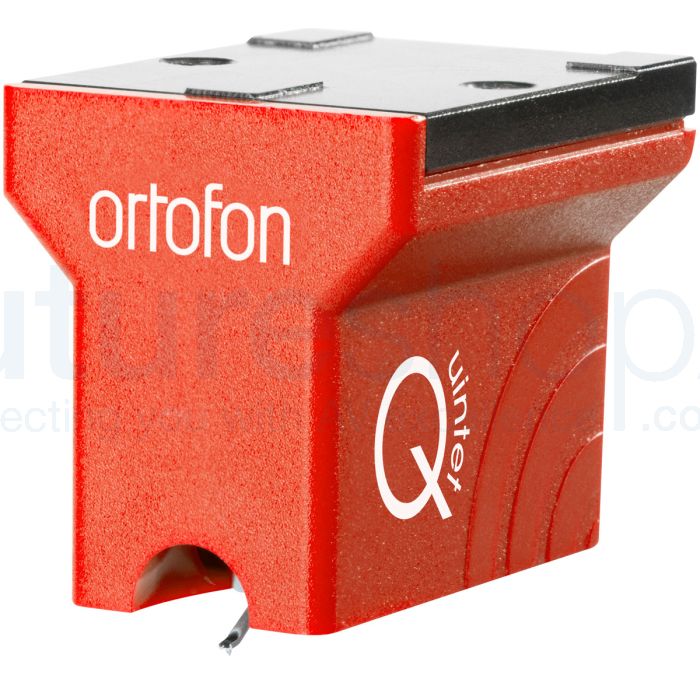

Ortofon MC Quintet Red Hi-Fi Turntable Cartridge
£319.00 £265.83
SKU
Quintet Red
Free UK Delivery
12 Months
New
24 hours
Ortofon's MC Quintet Red is a perfect introduction to the world of Ortofon moving coils. It features an Elliptical diamond which is cut and polished to Ortofon’s standards. This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
Ortofon MC Quintet Red Hi-Fi Turntable Cartridge
Ortofon's MC Quintet Red is a perfect introduction to the world of Ortofon moving coils. It features an Elliptical diamond which is cut and polished to Ortofon’s standards. This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations. MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
Features
- Light weight and durable cartridge body made from a special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material
- Neodymium magnets are implemented to achieve an optimal output
- All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- Split pole pins with a copper wire
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers
- Elliptical stylus profile
- Supplied with 2 screws (M2.5 x 5)
The story behind the Quintet series
Nothing demonstrates Ortofon’s long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different moving coil models, with their latest being the Quintet Series.
Ortofon believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration. A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface. Neodymium magnets are implemented to achieve an optimal output. Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminuim frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell. The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.
Styli lifetime and care
With proper care, Ortofon finds that up to 1,000 hours is possible without degradation of performance. The stylus does begin to exhibit changes after 1,000 hours, but the stylus life as a whole is expected to top 2,000 hours. Proper care is comprised of the following:
- Cleaning of record by means of fibre brush before and after every use
- Cleaning of record by using a record cleaning machine once in a while
- Cleaning of the stylus by means of a fine antistatic brush. Please remember to remove dust from the diamond tip before and after playback of each record. Use the brush in the forward direction from the rear of the cartridge towards the stylus tip, never from stylus tip to the rear of the cartridge and never from side to side
- Proper adjustment of alignment, anti-skating, azimuth and tracking force
- Ortofon does not recommend the use of solvents of any kind for cleaning of either record surface or stylus.
|
|
|
"Ortofon cartridges are very informative...well extended at both frequency extremes...this one seems to fit the pattern." Hi-Fi Choice - May 2011 |
|
"Resolution from this cartridge is more than competent, and the sense of space and inflection on the world-weary I've Been To Town from Sinatra's A Man Alone sits well here. Like closely priced rivals, the 2M Red tracks at 1.8g, and we found it simple to fit and align, with its combination of a large, solidly built casing and captive nuts easy to manage" What Hi-Fi? Sound and Vision - April 2010 |
|
"Its design is striking and evidently influenced by the facetting of gemstones, appropriately enough... ...It’s worth experimenting, because at best this is one of the most detailed cartridges we've come across at this kind of price." Tech Radar - April 2011 |
|
"...had a pleasing ambience...intimate, trembling quality. Hi-Fi News Outstanding Product - October 2008
|
Specification
- Output voltage at 1 kHz, 5cm/sec: 0.5 mV
- Channel balance at 1 kHz: <1.5 dB
- Channel separation at 1 kHz: >21 dB
- Channel separation at 15 kHz: >14 dB
- Frequency range at -3 dB: 20 - 25,000 Hz
- Frequency response: 20 - 20,000 Hz ±2.5 dB
- Tracking ability at 315 Hz at recommended tracking force: 65 μm
- Compliance, dynamic, lateral: 15 μm/mN
- Stylus type: Eliptical
- Stylus tip radius: r/R 8/18 μm
- Tracking force range: 2.1 - 2.5 g (21 - 25 mN)
- Tracking force recommended: 2.3 g (23mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 7 Ohm
- Recommended load impedance: >20 Ohm
- Cartridge body material: ABS/Alu.
- Coil wire material: Copper
- Cartridge colour, body/stylus: Red
- Weight: 9 g
- Dimensions: 23.1mm x 17mm x 19.2mm
About Ortofon
Ortofon is one of the world leader's in the development and manufacturing of turntable cartridges. The wealth of knowledge and expertise at Ortofon has been accumulating since 1918 with their first moving coil cartridge manufactured in 1948.
Today, Ortofon offers a wide range of cartridges for both DJ's and Hi-Fi audiophiles. Their offering includes moving magnets, moving coils, plug-and-play headshells, mono cartridges and 78RPM cartridges.
Throughout their range of cartridges, Ortofon maintains a set profile with each cartridge profile containing an individual sonic expression. All of Ortofon's range of cartridges includes a Red, Blue, Bronze and Black model.
First, in the range, are the Red cartridges which deliver open, dynamic sound with a slight touch of warmth. Next, the Blue Cartridges offer greater dynamic soundstages with improved detail and resolution. Following on, the Bronze cartridges improve the details in a way that pays respects to all elements of the track. Lastly, the Black cartridges are the best at everything. They are true to the groove with resolution and accurate insight into each recording.
Ortofon have made their cartridges suitable for the majority of turntables on the market at the moment. With a wide range of available models, there is an Ortofon cartridge to suit everyone.
Specification
- Output voltage at 1 kHz, 5cm/sec: 0.5 mV
- Channel balance at 1 kHz: <1.5 dB
- Channel separation at 1 kHz: >21 dB
- Channel separation at 15 kHz: >14 dB
- Frequency range at -3 dB: 20 - 25,000 Hz
- Frequency response: 20 - 20,000 Hz ±2.5 dB
- Tracking ability at 315 Hz at recommended tracking force: 65 μm
- Compliance, dynamic, lateral: 15 μm/mN
- Stylus type: Eliptical
- Stylus tip radius: r/R 8/18 μm
- Tracking force range: 2.1 - 2.5 g (21 - 25 mN)
- Tracking force recommended: 2.3 g (23mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 7 Ohm
- Recommended load impedance: >20 Ohm
- Cartridge body material: ABS/Alu.
- Coil wire material: Copper
- Cartridge colour, body/stylus: Red
- Weight: 9 g
- Dimensions: 23.1mm x 17mm x 19.2mm
