Ortofon Cartridge Alignment Tool
£5.00 £4.17
SKU
Ortofon Alignment Tool
12 Months
New
24 hours
The Ortofon Cartridge Tool ensured tangential alignment which means that the cantilever, and thus the stylus, will be properly aligned with the record grooves throughout the entire length of the record. By aligning the cantilever instead of the cartridge body, you can achieve the desired result of minimum tracking error for improved sound quality.
Ortofon Cartridge Alignment Tool
The Ortofon Cartridge Tool ensures tangential alignment which means that the cantilever, and thus the stylus, will be properly aligned with the record grooves throughout the entire length of the record. By aligning the cantilever instead of the cartridge body, you can achieve the desired result of minimum tracking error for improved sound quality.
It is a simple yet sophisticated tool that allows you to properly align your cartridge for optimum performance throughout the length of a record. This useful device is ideal for anyone who is looking to change their cartridge or fit a new model for the first time.

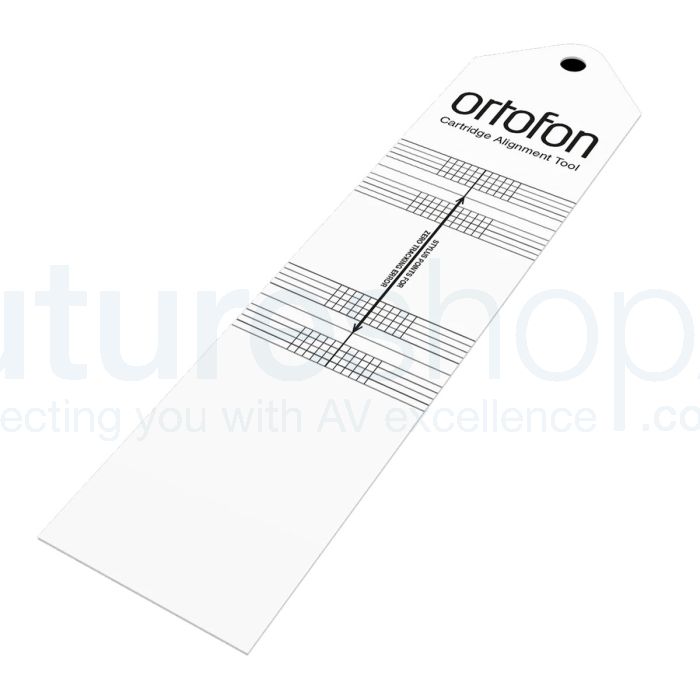

An alignment protractor is a plastic template onto which are printed the null point(s) and lines of tangency against which the cartridge should be aligned. The template is placed over the turntable's spindle (made possible via a spindle-sized hole drilled in the template) and placed against the platter. For best results aim to align the cartridge's cantilever with the alignment protractor.
How to use the Alignment Tool
When aligning a cartridge for tangency using the alignment Tool, it is essential to remember that you are attempting to align the cantilever (and, hence, the stylus), not the cartridge body. There is no guarantee that the cantilever is perfectly aligned within the cartridge body, so simply aligning the cartridge body will not necessarily produce the desired result.
Furthermore, many cartridge bodies have non-parallel sides, making tangential alignment of the cartridge body with the lines of tangency on the gauge virtually impossible.
A cartridge must be adjusted until the cantilever is parallel to the set of parallel lines. And this should be achieved for both the indicated points. When the cartridge's longitudinal axis is parallel with the horizontal lines, tracking error will be at a minimum.
About Ortofon
Ortofon is one of the world leader's in the development and manufacturing of turntable cartridges. The wealth of knowledge and expertise at Ortofon has been accumulating since 1918 with their first moving coil cartridge manufactured in 1948.
Today, Ortofon offers a wide range of cartridges for both DJ's and Hi-Fi audiophiles. Their offering includes moving magnets, moving coils, plug-and-play headshells, mono cartridges and 78RPM cartridges.
Throughout their range of cartridges, Ortofon maintains a set profile with each cartridge profile containing an individual sonic expression. All of Ortofon's range of cartridges includes a Red, Blue, Bronze and Black model.
First, in the range, are the Red cartridges which deliver open, dynamic sound with a slight touch of warmth. Next, the Blue Cartridges offer greater dynamic soundstages with improved detail and resolution. Following on, the Bronze cartridges improve the details in a way that pays respects to all elements of the track. Lastly, the Black cartridges are the best at everything. They are true to the groove with resolution and accurate insight into each recording.
Ortofon have made their cartridges suitable for the majority of turntables on the market at the moment. With a wide range of available models, there is an Ortofon cartridge to suit everyone.
