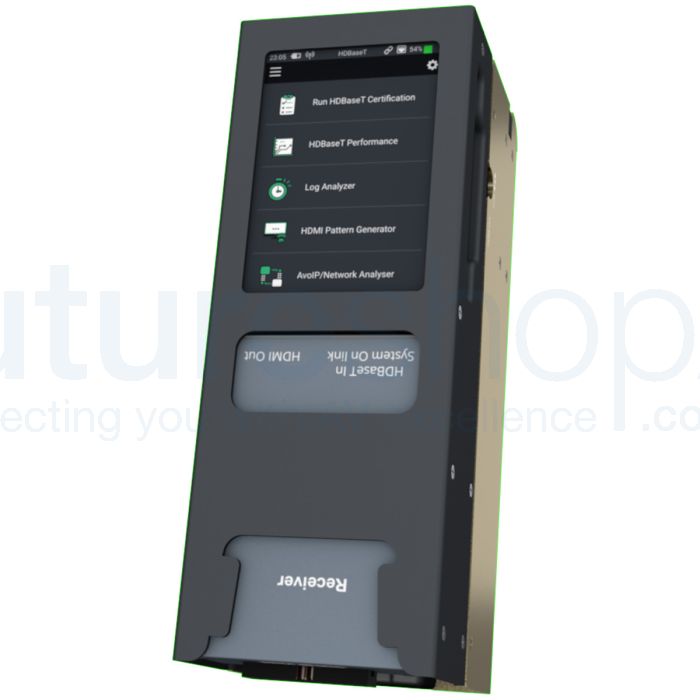

MSolutions MS-104B Battery Powered HDBaseT Spec 1.0 Tester

£3,119.99 £2,599.99
SKU
MS-104B
Free UK Delivery
12 Months
New
3 - 5 Days
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The MS-TestPro MS-104B is the only HDBaseT tester that is all-inclusive, 100% reliable, portable and affordable, making it an indispensable tool for AV installers and integrators. It provides AV professionals with all the information needed while in the field to enable them to verify the integrity and stability of every system tested down to the last detail.

MSolutions MS-104B Battery Powered HDBaseT Spec 1.0 Tester



The MS-TestPro MS-104B is the only HDBaseT tester that is all-inclusive, 100% reliable, portable and affordable, making it an indispensable tool for AV installers and integrators. It provides AV professionals with all the information needed while in the field to enable them to verify the integrity and stability of every system tested down to the last detail. Moreover, the MS-TestPro generates a report including all the parameters necessary to certify link quality and status for signals up to 4K Ultra High Definition. The report can then be transferred to a computer, tablet or smartphone for use by both installer and end-user.



Features

  • Effortless and immediate testing of HDBaseT links of distances up to 100m
  • HDBaseT monitoring and diagnostic functionality for a full overview of the links capability
  • HDBaseT Spec 1.0 transmitter and receiver modules included
  • Certifcation for 4K video in seconds
  • 3.5″ colour LCD touch screen with stylus
  • USB connectivity for downloading of certification reports
  • Mains or battery powered – up to 4 hours use from a full charge
  • Log testing of HDBaseT links for up to 24 hours
  • Free log file analysis from an MSolutions professional
  • In-built WiFi access point for remote testing capabilities from a mobile device
  • Integrated HDMI test pattern generator
  • HDMI EDID analyser
  • In-built video guide & user manual
  • IP65 rated shock-proof carry case
  • Optional extension modules for testing: HDBaseT Spec 2.0, DC Resistance, HDMI Cable, AVoIP networks



Unrivalled & Unique Testing Performance

The graphical user interfaces of the MS-TestPro allows for both remote performance testing from a connected laptop, tablet or smart phone, along with the 3.5” full colour touch screen built-into the tester.

Performance Data: Live-stream monitoring of individual twisted pair performance over the HDBaseT™ link allows for signal quality to be viewed in real-time

System Configuration: Active analysis of the link in place with feedback on various connectivity supported and in use over the link being tested

HDBaseT Certification: Run a full HDBaseT™ certification test from the unit with live feedback, and the ability to save individual links tested in .pdf format

HDMI Pattern Generator: Capable of generating a test pattern at a number of differing video resolutions/refresh rates, when no source device is available

Log Analyzer: Long term HDBaseT™ testing capabilities allow for intermittent faults to be identified by analysing signals over extended periods of time

Reporting: Save test reports into custom files for easy access post installation when compiling hand over documents for projects



Specification

  • 3.5″ colour touch screen
  • Video connectivity: 1x HDMI output (female) for HDMI test pattern generation (side of unit)
  • Audio connectivity: 1x 3.5mm stereo jack for audio test signal (side of unit)
  • LAN connectivity: 1x RJ45 Ethernet connection (top of unit)
  • 1x TX / RX module slot connected, 1x TX / RX module slot (storage)
  • 4x USB ports for download of firmware / test reports
  • Charger: 1x 12.6V 3A DC
  • Power consumption: 7.5W
  • Unit dimensions (W x D x H): 68mm x 178mm x 78mm
  • Unit weight: 0.9kg
  • Carry case dimensions (W x D x H): 250mm x 240mm x 115mm
  • Carry case weight: 2.2kg
  • Master carton quantity: 4 units
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1 x MS-TestPro 104B
  • 1 x MS-TestPro transmitter module – HDBaseT Spec 1.0
  • 1 x MS-TestPro receiver module – HDBaseT Spec 1.0
  • 1 x 12.6V 3A charger with US, UK & EU territory clips
  • 1 x Remote termination block
  • 1 x Ruggedised carry case



About MSolutions

The concept for the first MSolutions products for HDBaseT networks was conceived in 2016. Since then, they have developed state of the art multimedia and switching solutions for leading companies and integrators in the ProAV and across markets including public sector. The MSolutions team has been directly involved in HDBaseT development, support and sales since the standard was introduced in 2010. Their R&D team develops advanced, high quality systems that make media networks based on HDBaseT easier to install and more stable and enjoyable for end users.

MSolutions is committed to developing creative, reliable and value-oriented audio/video solutions and distributing them worldwide with an uncompromising level of service and support.

MSolutions takes great pride in the quality of its product range and offers a reliable service with timely technical support for customers in the field. When their customers purchase their products, they know they are getting a high quality, reliable and high performance product.

MSolutions consider the relationships with their customers to be crucial to their success. Every product carries a full guarantee and their commitment to providing a great service.

As MSoltuions continue to transform ideas into reality, they look forward to supporting you and your business needs today, tomorrow and beyond.



Specification

  • 3.5″ colour touch screen
  • Video connectivity: 1x HDMI output (female) for HDMI test pattern generation (side of unit)
  • Audio connectivity: 1x 3.5mm stereo jack for audio test signal (side of unit)
  • LAN connectivity: 1x RJ45 Ethernet connection (top of unit)
  • 1x TX / RX module slot connected, 1x TX / RX module slot (storage)
  • 4x USB ports for download of firmware / test reports
  • Charger: 1x 12.6V 3A DC
  • Power consumption: 7.5W
  • Unit dimensions (W x D x H): 68mm x 178mm x 78mm
  • Unit weight: 0.9kg
  • Carry case dimensions (W x D x H): 250mm x 240mm x 115mm
  • Carry case weight: 2.2kg
  • Master carton quantity: 4 units
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1 x MS-TestPro 104B
  • 1 x MS-TestPro transmitter module – HDBaseT Spec 1.0
  • 1 x MS-TestPro receiver module – HDBaseT Spec 1.0
  • 1 x 12.6V 3A charger with US, UK & EU territory clips
  • 1 x Remote termination block
  • 1 x Ruggedised carry case
