The optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT).

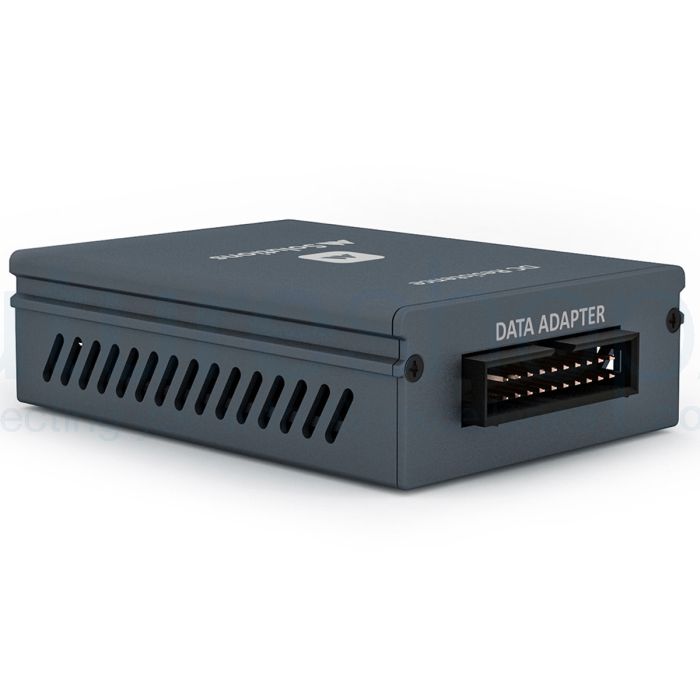

MSolutions DCR DC Resistance and Looper Expansion Module for MS104B

The optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT). The DCR will check for: 1. Loop Resistance which represents the DC loop resistance in Ohm (Ω) of a cable, and is calculated as the sum of the DC resistance of the two conductors in a pair. 2. Parallel DC Resistance Unbalanced for the parallel resistance of the CATx two conductors in each cable pair. For each pair, the difference is expressed in ohms (Ω). Finally, 3. Pair-to-Pair Resistance Unbalanced which is the difference in DC resistance between all four twisted pairs in the cable. For each pair, the difference is expressed in ohms (Ω).

Features

  • Expansion module for the MS-TestPro 104B
  • Adds capability for DC Resistance testing on the MS-TestPro MS-104B
  • For use with HDBaseT, IP, and PoE infrastructures
  • Tests for DC Loop Resistance (in ohms), Unbalanced Parallel DC Resistance, and Unbalanced Pair to Pair Resistance
  • Tests for PoE to IEEE 802.3bt standard

Specification

  • DCR & Looper modules to fit into MS-104B MS-TestPro tester
  • DCR module dimensions (W x D x H): 60mm x 84mm x 25mm
  • DCR module weight: 0.1kg
  • Looper module dimensions (W x D x H): 60mm x 33mm x 25mm
  • Looper module weight: 0.1kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1 x DC Resistance Module
  • 1 x Looper Module

About MSolutions

The concept for the first MSolutions products for HDBaseT networks was conceived in 2016. Since then, they have developed state of the art multimedia and switching solutions for leading companies and integrators in the ProAV and across markets including public sector. The MSolutions team has been directly involved in HDBaseT development, support and sales since the standard was introduced in 2010. Their R&D team develops advanced, high quality systems that make media networks based on HDBaseT easier to install and more stable and enjoyable for end users.

MSolutions is committed to developing creative, reliable and value-oriented audio/video solutions and distributing them worldwide with an uncompromising level of service and support.

MSolutions takes great pride in the quality of its product range and offers a reliable service with timely technical support for customers in the field. When their customers purchase their products, they know they are getting a high quality, reliable and high performance product.

MSolutions consider the relationships with their customers to be crucial to their success. Every product carries a full guarantee and their commitment to providing a great service.

As MSoltuions continue to transform ideas into reality, they look forward to supporting you and your business needs today, tomorrow and beyond.

Specification

  • DCR & Looper modules to fit into MS-104B MS-TestPro tester
  • DCR module dimensions (W x D x H): 60mm x 84mm x 25mm
  • DCR module weight: 0.1kg
  • Looper module dimensions (W x D x H): 60mm x 33mm x 25mm
  • Looper module weight: 0.1kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1 x DC Resistance Module
  • 1 x Looper Module
