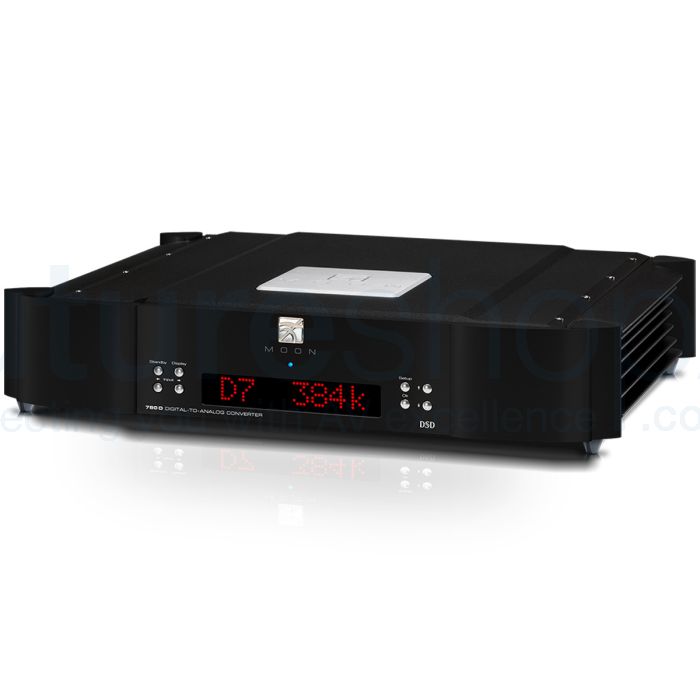

Moon by Sim Audio 780D V2 Streaming DAC
£15,500.00 £12,916.67
SKU
780D V2
Free UK Delivery
10 Years
New
24 hours
The MOON 390 is a multi-function crossover type product that has the function of a modern network player, DAC, preamplifier, headphone amplifier, and phono stage. Roughly, it combines the feature set of both older model 350P and 380D and adds further. Another point of view: it can be seen as an All-in-One without a power amplifier. Still, it will be pricier than Moon's All-in-One ACE as it is of a higher pedigree and higher performance level. The 390 was the first new product to benefit from MiND 2 streamer technology.
Moon by Sim Audio 780D V2 Streaming DAC
The MOON 780D V2 has been designed to offer state-of-the-art high-end performance in an elegant package, while training all of the sonic hallmarks on with Simaudio has made its reputation. No effor was spared to ensure the MOON 780D V2 is their finest DAC available, redifining your listening experience in every possible sense.
Now with the addition of the MiND2 module, the 780D v2 delivers an outstanding high-resolution streaming experience through music services such as Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified.
Simaudio’s MOON products produce sound that’s so pure and authentic that they offer a new proximity to the performer. And, because you never want those intimate moments with the artist to end, all MOON products are built to be enjoyed over a lifetime.
Features
- Roon Ready device
- Tidal, with Tidal Masters support
- Deezer, with Deezer Hi-Fi support
- Qobuz, with Qobuz Sublime+ support
- MQA & DSD decoding
- Supports native DSD up to DSD256 and PCM up to 384kHz (USB & Network only)
- Stream local source to other zones
- 9 digital inputs: USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth
- Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
- Femto second clock resulting in much lower jitter and consequently lower distortion
- 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
- On-board programmable software for customization of the end-user interface
- Ultra rigid chassis to minimize effects of external vibration
- iOS & Android compatible control app
- SimLink™ communication channel to control other MOON components
SimLink™
The SimLink™ connection allows for control of any SimLink equipped MOON system, enhancing ease of use, without having to use the IR remote. The MOON MiND Controller App can adjust the real volume control of a MOON system rather than using the most common digital attenuation method. This maintains the true fidelity of the music at any volume setting.
Roon Ready
MOON believes that nothing should stand between the listener and the authenticity of the original recording. The result is a newfound closeness between the listener and artist, edging closer to the ultimate goal: access to the purest sound.
From concept to manufacturing to listening to customer service, the entire team at MOON is dedicated to ensuring products stand the test of time. With a 10-year warranty on products, everyone at MOON has confidence in everything they make, and they take pride in the fact that almost all of their environmentally-friendly parts and products are impeccably crafted at Simaudio head quarters right in Quebec, Canada.
With MOON, you don’t just listen to music, you live it. That is why adding Roon to your MOON sound system will enhance your experience of discovering the infinity of music.
Make sure your device is updated to the latest firmware by checking the MOON by Simaudio web site. Next sign up for a Roon subscription and download and install Roon on your Mac, PC, or Linux NAS. Connect your device via network or USB, and launch Roon to get going.
|
"MF described the new Moon's improvements over the 650D as sounding "evolutionary rather than revolutionary"; however, when used with the best recordings at hand, "the 780D's transparency and graceful yet superbly detailed transient performance combined with an absence of . . . digital artifacts to produce what was among the most transparent, if not the most transparent digital sound I've heard." Stereophile - September 2018
|
Specification
- Frequency response (full range): 2 Hz - 100 kHz +0/-3 dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.0001%
- Intermodulation distortion: 0.0001%
- Dynamic Range: 124dB
- Signal-to-noise Ratio: 124dB @ full output
- Channel Seperation: 120 dB
- Intrinsic Jitter: 150 femto seconds RMS
- Analogue Output @ 0dBFS: 2.0V
- Analogue Output Impedance: 100 Ω
- PCM Bit-depth range: 16 - 32 bits
- PCM sampling frequency rates: 44.1 - 384 kHz
- DSD sample rates: DSD64, DSD128, DSD256
- Digital Inputs: 1 x USB Type B, 2 x TosLink Optical, 1 x SPDIF BNC, 2 x SPDIF RCA, 1 x AES/EBU, 1 x Ethernet
- Analogue Outputs: 1 x pair of analogue line level RCA, 1 x pair of analogue balanced XLR
- Communication Inputs/Outputs: SimLink in + out 1/8" micro, IR input 1/8" micro, 12V trigger out 1/8" micro, 1 x WiFi antenna for MiND2, Bluetooth antenna
- Remote Control: Full-Function FRM-3
- Shipping Weight: 38lb / 17 kg
- Dimensions (W x H x D): 18.75 x 4.0 x 16.8 (in) / 47.6 x 10.2 x 42.7 (cm)
Included in the box
- AC power cable
- 'FRM-3' remote control with three 'AAA' batteries
- SimLink™ cable with 1/8" mini plug terminations on each end
- 2 x Wifi antennaa
- Owners Manual
About MOON by Sim Audio
Simaudio products reproduce sound that is so pure and authentic it brings newfound proximity to the performer. As you never want those intimate moments with the artist to end, all MOON products are built to be enjoyed over a lifetime. Their mission is to convey the spirit and emotion of music through products of distinction. They value our respect for artists and musicians and this is matched only by their devotion to their customers. Dedicated to surprising and delighting, MOONS consistent creativity, passion and commitment have been redefining the industry for almost 40 years.
Simaudio are experienced audiophiles and music lovers, their specialists believe in the power of music. That is why, since 1980, Simaudio engineers and designers have been obsessed with surpassing the limits of sound purity and redefining the impossible. Their renowned customer service is professional and personalised thanks to their passionate team which is committed to your long-term satisfaction. No matter where you are located in the world, MOON will deliver the best sound experience to you.
Simaudio, are proud to build products that are sustainable, imparting a minimal impact on the environment. They favour responsible suppliers and subcontractors who share our philosophy of reducing our carbon footprint. Simaudio offers a 10-year warranty on all our products to respect their sustainability value. The pure sound of the instruments, the timbre of the voice, the bated breath. Simaudio believes that nothing should stand between the authenticity at the time of recording, and the listener. This proximity is their goal; this intimacy is our passion.
Specification
- Frequency response (full range): 2 Hz - 100 kHz +0/-3 dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.0001%
- Intermodulation distortion: 0.0001%
- Dynamic Range: 124dB
- Signal-to-noise Ratio: 124dB @ full output
- Channel Seperation: 120 dB
- Intrinsic Jitter: 150 femto seconds RMS
- Analogue Output @ 0dBFS: 2.0V
- Analogue Output Impedance: 100 Ω
- PCM Bit-depth range: 16 - 32 bits
- PCM sampling frequency rates: 44.1 - 384 kHz
- DSD sample rates: DSD64, DSD128, DSD256
- Digital Inputs: 1 x USB Type B, 2 x TosLink Optical, 1 x SPDIF BNC, 2 x SPDIF RCA, 1 x AES/EBU, 1 x Ethernet
- Analogue Outputs: 1 x pair of analogue line level RCA, 1 x pair of analogue balanced XLR
- Communication Inputs/Outputs: SimLink in + out 1/8" micro, IR input 1/8" micro, 12V trigger out 1/8" micro, 1 x WiFi antenna for MiND2, Bluetooth antenna
- Remote Control: Full-Function FRM-3
- Shipping Weight: 38lb / 17 kg
- Dimensions (W x H x D): 18.75 x 4.0 x 16.8 (in) / 47.6 x 10.2 x 42.7 (cm)
Included in the box
- AC power cable
- 'FRM-3' remote control with three 'AAA' batteries
- SimLink™ cable with 1/8" mini plug terminations on each end
- 2 x Wifi antennaa
- Owners Manual
