Moon by Sim Audio 610LP Phono Preamplifier
£8,400.00 £7,000.00
SKU
610LP
Free UK Delivery
10 Years
New
24 hours
Request Price MatchFeaturing a dual-mono, fully balanced differential circuit layout, the MOON 610LP is a purist design heavily based on the reference grade MOON 810LP. Since one of Simaudio’s strengths is “Research & Development”, they have the ability to create a reference grade product and then, a short time later, offer a more accessible model which encapsulates most of the technology and performance of the reference.

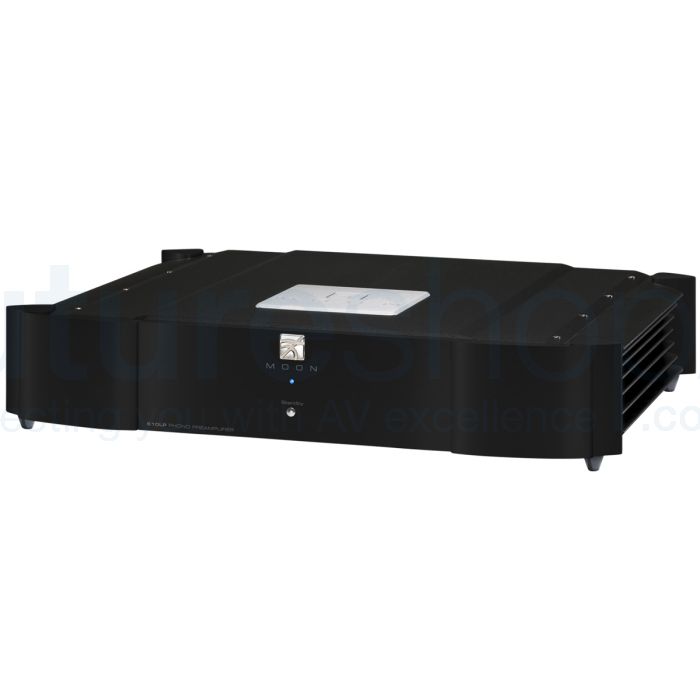

Moon by Sim Audio 610LP Phono Preamplifier
Featuring a dual-mono, fully balanced differential circuit layout, the MOON 610LP is a purist design heavily based on the reference grade MOON 810LP. Since one of Simaudio’s strengths is “Research & Development”, they have the ability to create a reference grade product and then, a short time later, offer a more accessible model which encapsulates most of the technology and performance of the reference.
The 610LP combines customized parts in an ultra-refined audio circuit which is fed by a unique power supply. This oversized power supply, located within the main chassis, is housed in a satin coated, steel isolated enclosure which eliminates all traces of AC artefacts. Located within this enclosure is a high-quality toroidal transformer, a ‘pi-type’ filter to reduce AC transmission noise and multiple stages of voltage regulation. These factors result in a power supply that exceeds the performance of a battery power supply with respect to both audio signal-to-noise ratio and voltage regulation.
A highly configurable phono preamplifier, the MOON 610LP offers selectable gain, impedance loading, capacitance loading and equalization curves, all accomplished using DIP switches found on the bottom panel. These switches are located directly in line with the circuit at optimal locations to yield the shortest possible signal path. These adjustments, in conjunction with an excellent overload margin, allow the 610LP to work with virtually any available phono cartridge.
Features
- Power supply voltage regulations include i3DCf (Independant Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit's signal path - 24 stages in all
- 64 impedance loading settings from 12.1Ω to 47kΩ
- 16 capacitance loading settings from 0pF to 1120pF
- 16 gain level settings from 40dB to 70dB
- Selectable equalization curves for RIAA and IEC standards
- Fully compatible with 820S external power supply
- Customized parts include metallized polypropylene film capacitors with very tight tolerances
Specification
- S/N Ratio (full scale @ 40dB gain): 112dBr
- S/N Ratio (full scale @ 66dB gain): 93dBr
- IEC Curve Effect: -7dB @ 10Hz
- Frequency Response: 20Hz - 20kHz ±0.1dB
- Crosstalk @ 1kHz: -106db
- Ouput Impedance: 50Ω
- THD (20Hz - 20kHz): 0.001%
- Intermodulation Distortion: 0.002%
- Input Overload @ 40dB gain: 200V RMS / 100V RMS
- Input Overload @ 66dB gain: 5mV RMS / 2.5mV RMS
- Shipping Weight: 40.0lb / 18kg
- Dimensions (W x H x D): 18.75 x 4.0 x 16.7 (in) / 47.6 x 10.2 x 42.7 (cm)
Included in the box
- AC power cable
- One (1) pen shaped plastic hand tool for making DIP-switch adjustments
- User Manual
About MOON by Sim Audio
Simaudio products reproduce sound that is so pure and authentic it brings newfound proximity to the performer. As you never want those intimate moments with the artist to end, all MOON products are built to be enjoyed over a lifetime. Their mission is to convey the spirit and emotion of music through products of distinction. They value our respect for artists and musicians and this is matched only by their devotion to their customers. Dedicated to surprising and delighting, MOONS consistent creativity, passion and commitment have been redefining the industry for almost 40 years.
Simaudio are experienced audiophiles and music lovers, their specialists believe in the power of music. That is why, since 1980, Simaudio engineers and designers have been obsessed with surpassing the limits of sound purity and redefining the impossible. Their renowned customer service is professional and personalised thanks to their passionate team which is committed to your long-term satisfaction. No matter where you are located in the world, MOON will deliver the best sound experience to you.
Simaudio, are proud to build products that are sustainable, imparting a minimal impact on the environment. They favour responsible suppliers and subcontractors who share our philosophy of reducing our carbon footprint. Simaudio offers a 10-year warranty on all our products to respect their sustainability value. The pure sound of the instruments, the timbre of the voice, the bated breath. Simaudio believes that nothing should stand between the authenticity at the time of recording, and the listener. This proximity is their goal; this intimacy is our passion.
Specification
- S/N Ratio (full scale @ 40dB gain): 112dBr
- S/N Ratio (full scale @ 66dB gain): 93dBr
- IEC Curve Effect: -7dB @ 10Hz
- Frequency Response: 20Hz - 20kHz ±0.1dB
- Crosstalk @ 1kHz: -106db
- Ouput Impedance: 50Ω
- THD (20Hz - 20kHz): 0.001%
- Intermodulation Distortion: 0.002%
- Input Overload @ 40dB gain: 200V RMS / 100V RMS
- Input Overload @ 66dB gain: 5mV RMS / 2.5mV RMS
- Shipping Weight: 40.0lb / 18kg
- Dimensions (W x H x D): 18.75 x 4.0 x 16.7 (in) / 47.6 x 10.2 x 42.7 (cm)
Included in the box
- AC power cable
- One (1) pen shaped plastic hand tool for making DIP-switch adjustments
- User Manual
