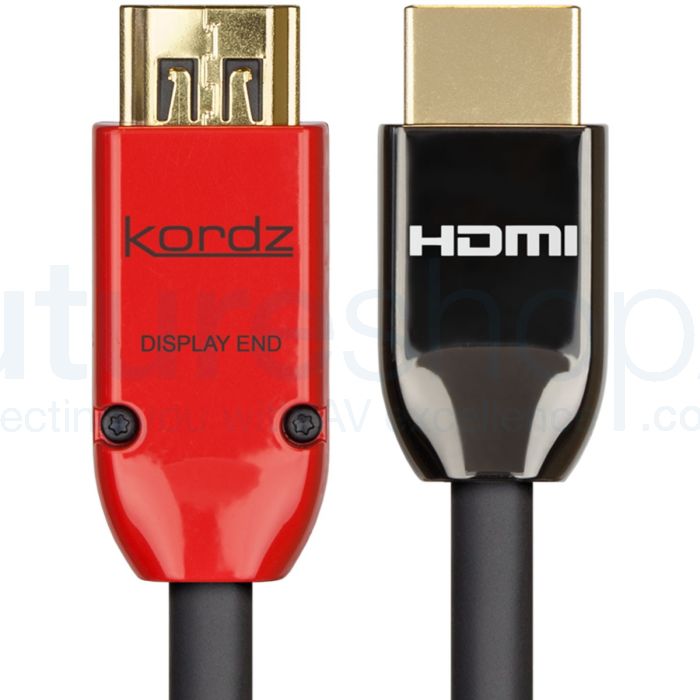

Kordz PRS Fixed Installation HDMI Cable Series - (HDMI 2.0 & 4K Certified)

£44.99 As low as £29.99 £24.99
SKU
Kordz PRS HDMI
Lifetime
New
24 hours
what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Kordz PRS features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity.

Kordz PRS Fixed Installation HDMI Cable Series - (HDMI 2.0 & 4K Certified)



Kordz PRS features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity. Engineered to mitigate connector dropout potential - not suitable for repeated plug/unplug events.



Features:

  • High Speed with Ethernet
  • Engineered to fit through a 1” conduit
  • Induction soldered pin transitions for benchmark inter-terminal uniformity
  • Unique grip tab connectors for permanent installations
  • 100% of units tested on the production line for electrically continuity on all pins, with 1080p/60 application test
  • UL CMG fire rated in all lengths
  • Limited Lifetime Warranty
  • Licensed HDMI 2.0 Adopter company
HDMI Compliance HDMI CTS Certification : High Speed with Ethernet
  Certified Data Rate : 3.4Gbpsc, 10.2Gbps aggregate
  Supported Data Rate : > 3.4Gbpsc (4K UHD)
  Supported HDMI Clock : 27-340MHz
Construction  Primary Conductors : Solid 28AWG OFC, Length Dependant
  Insulation on TMDS : Foam-PE ≤1.7 relative permittivity
  Insulation on 4C + HEAC Pairs : Solid Polyolefin ≤2.0 relative Permittivity
  Shielding on TMDS Pairs : Al/Mylar, 25% Overlap
  Shielding Overall : Al/Mylar + Al braid 85% coverage
  Cable Jacket : UL CMG fire rated PVC, all lengths
  HDMI Connector Shell : Pressed steel with dual grip tabs, 1μ” 24K Gold plated
  HDMI Connector Pins : Solid OFC, 15μ” 24K Gold plated
  Active Technology (7.5m-15.0m) : Directional, Spectra7 PRE-1692 in-shell module
  Termination : Contactless IR induction soldering
  HDMI Backshell : Dark chrome plated die-cast zinc alloy shell assembly
Mechanical Cable Diameter : 6.5mm / 0.26”
  Mounting Length : 70.0mm / 2.76”
  Cable Bend Radius : 35.0mm / 1.38”
  Retention Force (nominal) : 29.7N (3kg / 6.6lbs) +10/-5%

 Kordz PRS Physical Dimensions



Applications:

  • For permanent, standards compliant short or long length High Speed HDMI connectivity installations†
  • Installations where desired connector retention exceeds that of standard or die-cast connectors†, (grip tabs provide 50% more retention force at 29.7N/3kg nominal)
  • In-wall cabling, fits through a 1” conduit
  • Hotel room AV systems and bars
  • Digital signage & video walls
  • UHD video and professsional graphics up to 1440 Vres
  • 1080p & 2160p (UHD) projector installations
  • HDMI 2.0 scaleable

Specifications:

Video Format Support Data Rate Per Channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p :  ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60 :  742.5Mbpsc/2.22Gbps, 371.25MHz
1080p 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 23.98/24/29.97/30
 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 50/59.94/60
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-24/30
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-50/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p 10/12/16-bit RGB/YCbCr 4:4:4 :
  • 50/59.94/60fps
 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K) HDMI 1.4b, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 4096x2160p/24 (SMPTE)
 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 3840x2160p/23.98/24/29.97/30
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0, 8-bit YCbCr 4:2:0 :
  • 2160p*/50/59.94/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0 mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0 :
  • 2160p*/50/59.94/60-2D (CEA-861-F)
 5.94Gbpsc/17.82Gbps, 2.97GHz
  • 2160p*30-3D
 5.94Gbpsc/17.82Gbps, 2.97GHz
 VESA graphics :  Supports all as defined by HDMI specification
 3D Video :  Supports all as supported and/or mandated by HDMI specification
 Color Spaces :  RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
 Audio Formats Support :  PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
 3D Audio (10.2 / 22.2 / 30.2ch :  Supported, device & video format dependent
 HDMI Ethernet Channel :  Supported, system dependent
 HDMI Audio Return Channel :  Supported, Single Mode & Common Mode



About The Kordz Company

Kordz is an esteemed Australian company established in 2003 to cater to the unique requirements of the custom and commercial AV installation community. With a strong focus on delivering reliable high-definition connectivity solutions, Kordz has grown into a highly regarded brand with numerous awards.

As an active member of the HDMI Adopter program since 2005, Kordz specialises in providing dependable long-reach HDMI cables, ensuring the seamless transmission of high-quality audio and video signals. Their commitment to excellence is evident in their practical and elegant design, meticulous manufacturing processes, and unwavering support for education initiatives. These factors are crucial in ensuring the successful integration of Kordz products by professional installers.

Kordz offers a comprehensive range of cables, including their renowned Kordz Speaker Cables and Kordz HDMI cables. These cables are trusted by industry professionals for their exceptional performance and reliability, making them the ideal choice for demanding AV installations.

With Kordz, customers can expect nothing short of superior connectivity solutions that enable the flawless transmission of audio and video signals in custom and commercial AV setups. Their dedication to quality, innovation, and installer support sets Kordz apart as a leader in the industry, providing peace of mind and optimal performance for every installation project.



Specifications:

Video Format Support Data Rate Per Channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p :  ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/60, 1080i/60 :  742.5Mbpsc/2.22Gbps, 371.25MHz
1080p 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 23.98/24/29.97/30
 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 50/59.94/60
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-24/30
 1.485Gbpsc/4.455Gbps, 742.5MHz
  • 3D-50/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p 10/12/16-bit RGB/YCbCr 4:4:4 :
  • 50/59.94/60fps
 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K) HDMI 1.4b, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 :
  • 4096x2160p/24 (SMPTE)
 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 3840x2160p/23.98/24/29.97/30
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0, 8-bit YCbCr 4:2:0 :
  • 2160p*/50/59.94/60
 2.97Gbpsc/8.91Gbps, 1.485GHz
2160p (UHD/4K) HDMI 2.0 mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0 :
  • 2160p*/50/59.94/60-2D (CEA-861-F)
 5.94Gbpsc/17.82Gbps, 2.97GHz
  • 2160p*30-3D
 5.94Gbpsc/17.82Gbps, 2.97GHz
 VESA graphics :  Supports all as defined by HDMI specification
 3D Video :  Supports all as supported and/or mandated by HDMI specification
 Color Spaces :  RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
 Audio Formats Support :  PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
 3D Audio (10.2 / 22.2 / 30.2ch :  Supported, device & video format dependent
 HDMI Ethernet Channel :  Supported, system dependent
 HDMI Audio Return Channel :  Supported, Single Mode & Common Mode
