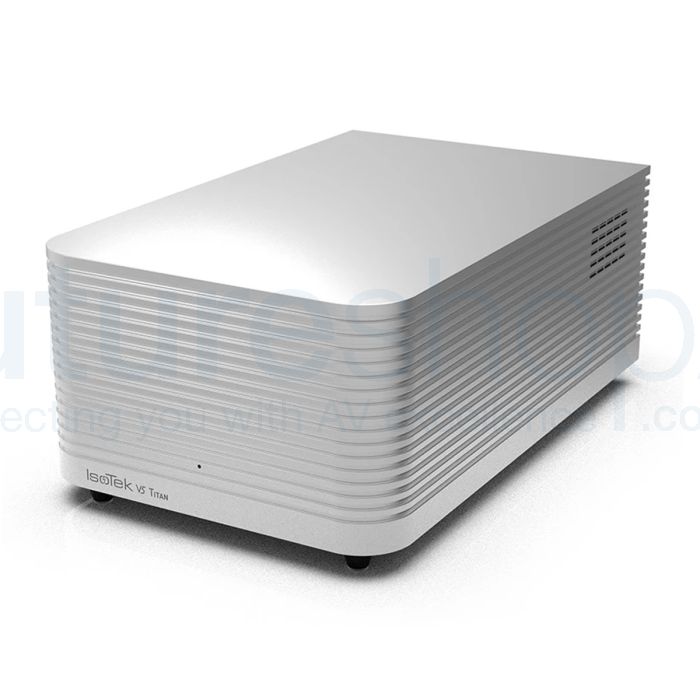

Isotek V5 Titan Mains Conditioner W/ Premier Power Cable
As low as £4,995.00 £4,162.50
SKU
Isotek V5 Titan
The original Titan, when launched towards the end of 2004 set a new standard for high current power cleaning systems and went on to win Hi-Fi News power cleaning product of the year in 2005 along with numerous other international awards. The new V5 model offers an additional third output socket as well as a new ‘System Link’ output, allowing multiple IsoTek devices to be connected via a star earth referencing back to a single wall socket. This product comes with an Isotek Premier C19 cable included!
promotional_banner_4
promotional_banner_4
Isotek V5 Titan Mains Conditioner W/ Premier Power Cable
The original Titan, when launched towards the end of 2004 set a new standard for high current power cleaning systems and went on to win Hi-Fi News power cleaning product of the year in 2005 along with numerous other international awards.
The new V5 model offers an additional third output socket as well as a new ‘System Link’ output, allowing multiple IsoTek devices to be connected via a star earth referencing back to a single wall socket. The legendary Titan Direct Coupled© circuit is also taken to a new level with instant absolute power on tap through over 50% increased PCB copper-loading, moving closer to the ideal of zero Ohms. This vastly improves amperage and decrease resistance. The new circuit also offers twice the inductance with an 80% increase of current handling ability. Protection is also raised to 153’000A instantaneous and 75’000A continuous, it is the most robust surge protection system IsoTek has offered in this model.
Features
- Suitable for high current audio or AV systems
- RFI reduction 85dB (50 ohms standard), down to 5Hz
- Optimised power cleaning circuits effectively remove Common and Differential Mode mains noise
- 3 independent high current outlets for power amps, subwoofers, active loudspeakers (16A)
- Easy reset RCBO fusing system
- 153,500A instantaneous protection, 75,000 continuous
- Fully star-earthed network
- Solid core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric
- System Link outlet for extending the outlets and maintaining a starred earth reference
- Supplied with IsoTek’s award winning EVO3 Premier power cable
- UK, EU, US, AU & CH outlets available
Design
The V5 design features an RCBO fusing system rated at 16A for the three high current power output sockets these deliver 3,680W at 230V or 1,840W at 115V.
This fusing system is a substantial upgrade over a standard ordinary fuse due to contact area. By shear virtue of its electrical function a standard fuse must have a very thin wire, this being also true of expensive audiophile grade gold plated versions. The IsoTek fusing system offers an increased contact area at least 1000 times better, and a connection which is consistently strong.
KERP© (Kirchhoff’s Equal Resistance Path) ensures equal resistance and equal power delivery to all outlets. The internal wiring is of the highest standard – ultra pure Ohno Continuous Cast copper solid core conductor strands with silver-plating offers low resistance and high amperage. A Fluorinated Ethylene Propylene (FEP) helix is wound around the conductor before an extruded FEP dielectric protects the conductor and creates a Virtual Dielectric of Air dielectric (FDA). This construction gives unrivalled performance and gives the ultimate low resistance, high performance internal power delivery system. Furthermore, 153’000A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area, is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.
V5 Titan also contains a System Link outlet, this is designed to connect multiple units together, maintaining a stared earth reference, and preserving the need for multiple wall outlet sockets.
V5 Titan is high quality design yet highly functional and is an excellent upgrade for a complete audio system. IsoTek’s award winning Premier power cable is also included.
Specification
- Number of outlets: 3 + System Link
- Type of outlets: UK, EU, US
- Mains inlet: 16A IEC C20
- Mains voltage: 100-240V / 50-60Hz
- High current - 230V: x3 (16A 3,680W total)
- High current - 115V: x3 (16A 1,840W total)
- SYSTEM LINK: x1
- Surge protection: 153,000A
- Dimensions (W x H x D): 220 x 147 x 350mm
- Weight: 12kg
About IsoTek
IsoTek is a UK-based company that specialises in power management systems for hi-fi and home cinema applications. Formed in 2001, the company has rapidly become a world leader in mains conditioning and filtration, developing a wide range of innovative, award-winning products that form complete solutions to suit every pocket. Thanks to IsoTek’s painstaking attention to detail, its products significantly improve sound and picture quality, while offering protection from spikes and surges. IsoTeks reputation for creating truly exceptional products is well known in field of mains power distribution. All products are professionally designed, manufactured and carefully hand-built in the UK with every component extensively tested for quality, reliability and purpose. As a result IsoTek creates innovative, leading edge products that have won a plethora of prestigious awards from many leading industry magazines.
- Number of outlets: 3 + System Link
- Type of outlets: UK, EU, US
- Mains inlet: 16A IEC C20
- Mains voltage: 100-240V / 50-60Hz
- High current - 230V: x3 (16A 3,680W total)
- High current - 115V: x3 (16A 1,840W total)
- SYSTEM LINK: x1
- Surge protection: 153,000A
- Dimensions (W x H x D): 220 x 147 x 350mm
- Weight: 12kg
