Isotek V5 Gemini 2-Way Mains Distribution

£395.00 £329.17
SKU
Isotek V5 Gemini
Free UK Delivery
24 Months
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The V5 Gemini is perfect for any audio or AV system, offering superior power cleaning performance and reliability. With its compact design, it is perfect for those who want to keep their audio equipment out of sight, and the included wall-hanging bracket makes mounting the product even easier.

promotional_banner_4
promotional_banner_4

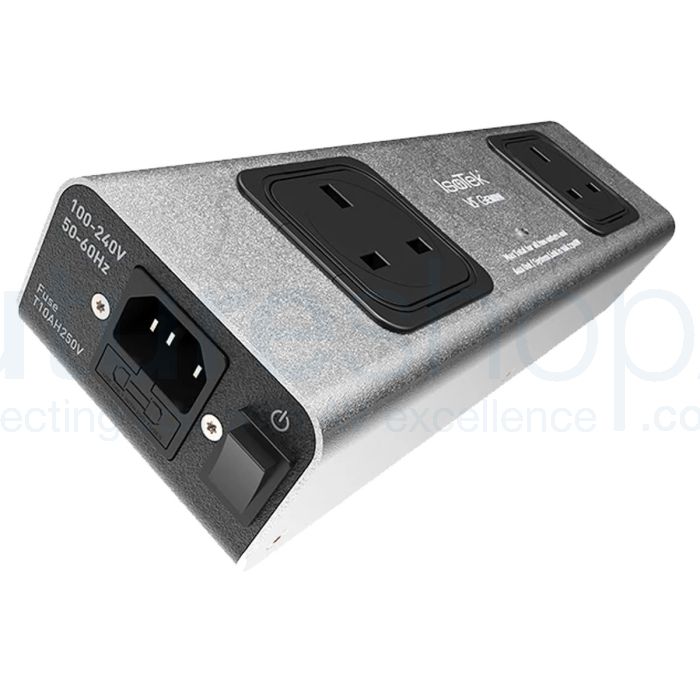

Isotek V5 Gemini 2-Way Mains Distribution



The V5 Gemini is perfect for any audio or AV system, offering superior power cleaning performance and reliability. Its compact design makes it perfect for those who want to keep their audio equipment out of sight, and the included wall-hanging bracket makes mounting the product even easier. If you are looking for a cost-effective upgrade for your audio system, the IsoTek V5 Gemini is a perfect choice. The V5 Gemini also features a 45,000A instantaneous protection system, protecting both the circuit and your connected equipment. The internal wiring is of the highest quality, with multi-strand 6n Oxygen Free Copper silver-plated conductors and FEP dielectric insulation



Features

  • Suitable for all audio or AV systems
  • RFI reduction 35dB
  • Central clean power network removes Common and Differential Mode mains noise
  • 2 independent outlets stop Differential Mode cross contamination
  • 45’000A instantaneous protection
  • Fully star-earthed network
  • Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
  • System Link outlet for extending the outlets and maintaining a starred earth reference
  • Use with standard IEC C13 power cable
  • UK outlets



Design

The IsoTek V5 Gemini is designed for customers who want to ensure their audio components receive clean power and premium performance. Measuring just 270mm in length, 80mm wide and 50mm in height, this compact power cleaning and distribution bar offers two individual outlets that reference back to the central internal printed circuit board. It is designed with a unique delta filter topology that provides more than 20dB of power cleaning at 1kHz (reference 600Ohms), and 42dB of power cleaning at 10kHz, where radio frequency interference (RFI) starts to influence performance.


The two outlet sockets are also independently isolated to prevent cross-contamination of Differential Mode mains noise, and are connected via IsoTek’s KERP© (Kirchhoff’s Equal Resistance Path) to ensure equal resistance and equal power delivery to all outlets. The internal wiring is of a high standard, consisting of a 2sqmm pure 6n oxygen free copper conductor strands that are silver-plated, providing low resistance and high amperage.


Protection is also increased to 45’000A with IsoTek’s unique sequential and repeatable protection system, plus a System Link outlet is included to connect multiple units together, whilst maintaining a star earth reference. The wall hanging bracket system allows for easy mounting of the product behind your audio equipment rack, if desired. For those customers who want to further optimise their audio setup, IsoTek also offers a range of matching power cables to synergise with the internal wiring of this product.



Specification

  • Number of outlets: 2 + System Link
  • Type of outlets: UK
  • Mains inlet: 10A IEC C14
  • Mains voltage: 100-240V / 50-60Hz
  • Maximum current - 10A HRC
  • Total Wattage - 2,300W (@230V) / 1,150W (@115V)
  • SYSTEM LINK: x1
  • Surge protection: 45,000A
  • Dimensions (W x H x D): 80 x 50 x 270mm
  • Weight: 0.7kg
  • Colour: Silver



About IsoTek Made in United Kingdom

IsoTek is a UK-based company that specialises in power management systems for hi-fi and home cinema applications. Formed in 2001, the company has rapidly become a world leader in mains conditioning and filtration, developing a wide range of innovative, award-winning products that form complete solutions to suit every pocket. Thanks to IsoTek’s painstaking attention to detail, its products significantly improve sound and picture quality, while offering protection from spikes and surges. IsoTeks reputation for creating truly exceptional products is well known in field of mains power distribution. All products are professionally designed, manufactured and carefully hand-built in the UK with every component extensively tested for quality, reliability and purpose. As a result IsoTek creates innovative, leading edge products that have won a plethora of prestigious awards from many leading industry magazines.



Specification

  • Number of outlets: 2 + System Link
  • Type of outlets: UK
  • Mains inlet: 10A IEC C14
  • Mains voltage: 100-240V / 50-60Hz
  • Maximum current - 10A HRC
  • Total Wattage - 2,300W (@230V) / 1,150W (@115V)
  • SYSTEM LINK: x1
  • Surge protection: 45,000A
  • Dimensions (W x H x D): 80 x 50 x 270mm
  • Weight: 0.7kg
  • Colour: Silver
