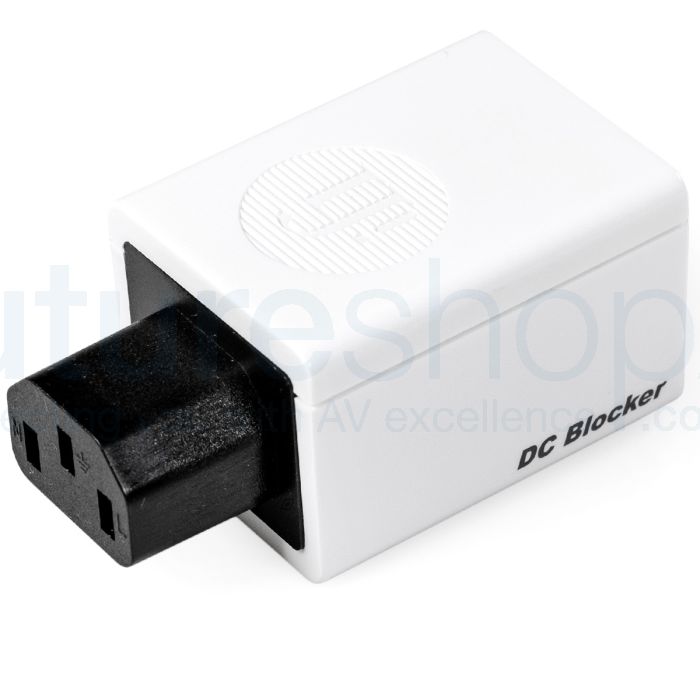

iFi Audio DC Blocker - Transformer Hum Eliminator

iFi Audio DC Blocker

If one of your audio components suffers from an irritating transformer hum, then the DC Blocker is the perfect product for you. By intelligently blocking DC voltage greater than 1,000mV (the main cause of humming), the DC Blocker can eliminate the transformer hum in your equipment. The DC Blocker manages this while maintaining equipment safety and EMI shielding to ensure there are no negative side effects. Additionally, the DC Blocker can be used anywhere around the world!

Many large amplifiers have a really annoying mechanical hum (emitted from the toroidal transformer itself). You can hear it when you place your ear close or next to the chassis. This is caused by a small amount of DC voltage in the mains which makes its way through to the mains transformer, it will become ‘saturated’ and start to hum like a trooper. The DC Blocker is a clever device that you place at the IEC (at the rear power inlet) and as its name implies, it stops DC from getting into the amplifier. It therefore eliminates amplifier transformer hum.

The bigger the amplifier, usually, the larger the toroidal which is susceptible to residual DC voltage. Just add the DC Blocker at the IEC to stop DC from getting in.

Features

• ZERO DC Block technology – stops DC from getting into your amplifier and eliminates amplifier transformer hum
• High-performance glass passivated semiconductor. High-case dielectric strength of 1500VRMS. UL listed. Flame resistant IEC socket/connecter/chassis (Fireproof polymers UL94-V0)
• EMI shielding is retained
• The DC Blocker removes such DC and eliminates such mechanical transformer hum, makes the transformer operate at the optimum environment. With the DC Blocker, there is 0 DC pass through

How do I know if I need one?

If you hear audible hum inside a powered audio product, especially with a toroidal transformer inside, iFi's DC Blocker was designed to either lower or remove that noise.

How do I use it?

Insert a DC Blocker into the mains input of your equipment at the IEC power inlet. Plug the power cord into the DC Blocker. You can use a DC Blocker on each piece of equipment that has a power transformer in its power supply.

My device has a switchmode power supply, will this unit work for me?

Although the DC Blocker unit will still provide switchmode power supplies with power, there is little benefit in doing so. In a switchmode power supply the AC mains is first rectified into DC, after which a high frequency switching regulator circuit takes care of any AC or DC fluctuations on the mains.

What are the reasons for distortion (hum)?

The majority of audio electronic equipment uses a power transformer or transformers for their power supply. Mains power starts out being a pure sine wave at the power station but ends up having a lot of distortion imposed upon it by the time it reaches your equipment at home. The distortion comes from other equipment connected to the same power line and could be industrial or domestic in nature, such as pulse-width modulated electric motors (eg. vacuum cleaners, heat pumps), household heating, washing machines, phase-controlled industrial equipment in factories, light dimmers, etc.

What sort of equipment should I connect to it?

The DC Blocker is mainly designed for source equipment and amplifiers with a power transformer rating up to 500W (for 230V) or 350W (for 115V). Using equipment with a higher power rating is ok though, as any more power demanded through the DC Blocker is transferred straight to the equipment. DC blocking will still work, but to a lesser degree.

Will it negatively affect an audio product in any way?

iFi's DC Blocker was designed not to. If anything, it will improve a connected component’s sound quality due to removal of excess DC voltage.

Specifications:

• ZERO DC Block technology: Blocks incoming DC – up to 1,200mV
• Voltage rating: 90 – 240 volts
• Maximum current rating: > 10A
• Continuous current rating: 7A
• Universal IEC: Hospital-grade IEC connectors
• Dimensions: 68 x 37 x 32 mm / 2.7” x 1.5” x 1.3”
• Weight: 63g / 2.2oz
• Warranty period: 12 months
