Gold Note PSU-1250/1000 Power Supply
As low as £3,600.00 £3,000.00
SKU
Gold Note PSU-1000/1250
12 Months
New
48 Hours
Experience the purest sound quality with the Gold Note 1000 Series power supplies! Gold Note's PSU-1250 and PSU-1000 external power supplies are engineered to provide superior sound quality through a sophisticated design powered by dual inductor driving the negative and positive high-current stages, and an inductive filter on the analogue stage.
Related Products
promotional_banner_4
promotional_banner_4

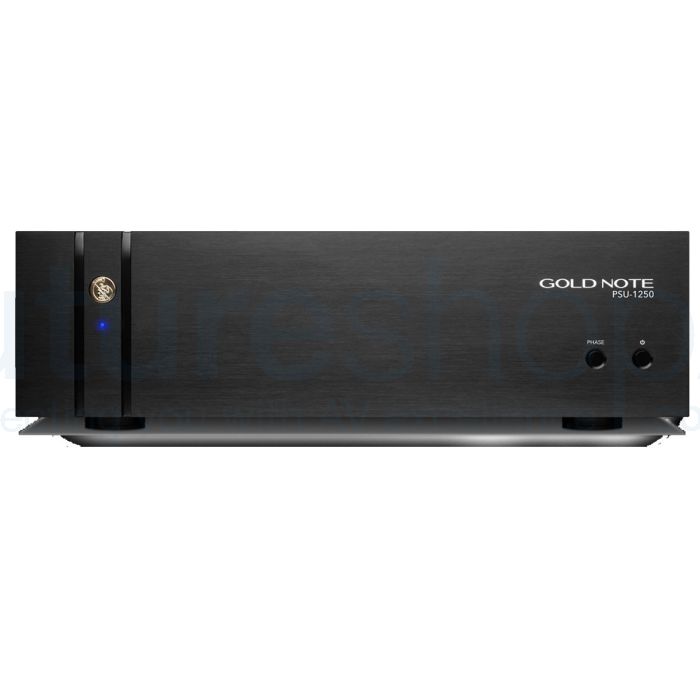

Gold Note PSU-1250/1000 Power Supply
Experience the purest sound quality with the Gold Note 1000 Series power supplies! Gold Note's PSU-1250 and PSU-1000 external power supplies are engineered to provide superior sound quality through a sophisticated design powered by dual inductor driving the negative and positive high-current stages, and an inductive filter on the analogue stage.
The PSU-1250 features a 7-Transformer design, with 4 transformers dedicated exclusively to the power supply stage, of which one for the galvanic insulation of the audio stage, and 3 dedicated to the Dual Choke Inductive Filter.
The PSU-1000 is powered by a 5-Transformers design, leveraging 4 transformers for the power supply stage and galvanic insulation and one for the Dual Choke Inductive Filter.
Finishes - Black, Silver or Gold. Please note that the Gold finish is special order only.
What Gold Note say
ULTRA-CLEAN POWER
Our external power supplies perfectly filter the AC current and remove interference and electrical noise from the power system, allowing our electronics to perform at their best. Most importantly, they ensure the electronics always receive the optimal amount of power without generating EMI (ElectroMagnetic Interference) nor RFI (Radio-Frequency Interference) that could affect the audio signal.
With the PSU-1250 and PSU-1000, your system will deliver greater dynamics, better resolution, and finer details for improved realism all-around and a higher level of musicality.
Technical Features
- PSU-1250: 7 low-noise voltage regulators
- PSU-1000: 5 low-noise voltage regulators
MAXIMUM VARIATION OF OUTPUT VOLTAGE
- 0,05 %
LINE NOISE REJECTION
- >80dB
COMMON MODE NOISE REJECTION
- >80dB
ABSOLUTE PHASE CONTROL
- Selectable from front panel
FULL POWER RESPONSE TIME
- <2,5µsec
Specification
POWER CONSUMPTION
- 100W
DYNAMIC POWER
- PSU-1250: >300W
- PSU-1000: >200W
STAND BY POWER
- 1W
POWER SUPPLY
- 100-120V / 220-240V with auto sense, 50/60Hz
FUSE
- 3,15 A F
DIMENSIONS AND WEIGHT
- 425mm W | 135mm H | 360mm D
PSU CONNECTION CABLE
- 1m
WEIGHT
- PSU-1250: Kg. 21 net – Kg. 27 boxed
- PSU-1000: Kg. 20 net – Kg. 25 boxed
About Gold Note
Gold Note, the leading Italian manufacturer in the High-End audio industry, was founded in Firenze in 2012 by Maurizio Aterini, who serves as the CEO and driving force behind the brand. With a focus on Italian craftsmanship, Gold Note offers a complete line of digital and analogue equipment catering to audiophiles worldwide.
Gold Note's story combines tradition and innovation, inspired by the rich history, art, and technology of Firenze. The brand values creativity, technical expertise, and a sense of beauty, which are reflected in every product they create.
The mission of Gold Note is to deliver the full experience of music, capturing the emotion of listening. They strive to achieve perfect musicality through innovative technology, exquisite materials, and Italian design. The result is a full-bodied sound with impeccable imaging, dynamics, and precise placement of instruments and voices.
Gold Note's sound is distinctively Italian, characterised by vivid realism, precise imaging, accurate instrument separation, speed, and clarity of detail. They aim to provide a natural and balanced sound that combines analytical and sentimental qualities, resulting in a unique Italian Sound.
The philosophy of Gold Note revolves around systems thinking, emphasising the synergy created by the components and the entire audio chain. They focus on the holistic approach to design, considering the sum of the parts rather than individual constituents. This approach allows them to craft a complete audio chain that delivers true Italian Sound.
As a contemporary High-End audio brand, Gold Note combines innovation and tradition to meet the needs of the modern audiophile. They embrace engineering, functional design, and manufacturing challenges, striving for excellence while representing the essence of "Made in Italy." Gold Note carefully selects suppliers known for their exceptional quality, often located in Tuscany, near their headquarters.
Quality control is of utmost importance to Gold Note. Each product undergoes thorough individual testing, ensuring the highest level of quality. The lean production system is followed, with each product assembled by a single technician.
Gold Note's commitment to delivering the ultimate musical experience and their dedication to craftsmanship has established them as a renowned brand in the High-End audio industry.
Specification
POWER CONSUMPTION
- 100W
DYNAMIC POWER
- PSU-1250: >300W
- PSU-1000: >200W
STAND BY POWER
- 1W
POWER SUPPLY
- 100-120V / 220-240V with auto sense, 50/60Hz
FUSE
- 3,15 A F
DIMENSIONS AND WEIGHT
- 425mm W | 135mm H | 360mm D
PSU CONNECTION CABLE
- 1m
WEIGHT
- PSU-1250: Kg. 21 net – Kg. 27 boxed
- PSU-1000: Kg. 20 net – Kg. 25 boxed
