Gold Note PH-10 Phono Stage

As low as £1,700.00 £1,416.67
SKU
Gold Note PH-10
12 Months
New
48 Hours
what's this?

Please select the desired colour.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PH-10 is Gold Note's entry-level phono stage, but it is still a unique and versatile piece of kit. It is extremely user-friendly, with nine different loads options (10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ) and 3 different EQ curves to allow you to get the very best sound from all of your vinyl records. Like every Gold Note product, the PH-10 comprises of components exclusively sourced and assembled in Italy.

promotional_banner_4
promotional_banner_4

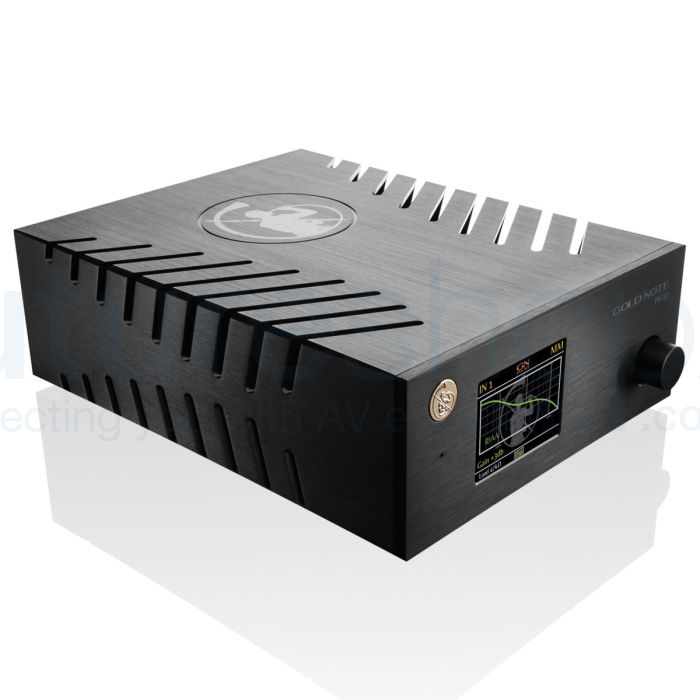

Gold Note PH-10 Phono Stage



The PH-10 is Gold Note's entry-level phono stage, but it is still a unique and versatile piece of kit. It is extremely user-friendly, with nine different loads options (10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ) and 3 different EQ curves to allow you to get the very best sound from all of your vinyl records. Like every Gold Note product, the PH-10 comprises of components exclusively sourced and assembled in Italy.



What Gold Note say

The Extraordinary Phono Stage

The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD, and GAIN adjustments: a fully analogue design, engineered exclusively with the best components to recreate the musical event in the most natural way possible.

To control the PH-10, Gold Note developed the user-friendly Single Knob Control (SKC). Combined with the color display this rotary joggle allows quick adjustments of any function in real-time during music playback.

The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA LONDON, or the AMERICAN COLUMBIA, and all selection appears clearly on the display.

Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality.


The Perfect Cartridge Matching

9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ] and 4 different selectable GAIN options [0dB, ± 3dB, +6dB] will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.


Connect Two Separate Tonearms

With its two separate RCA inputs, the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off, guaranteeing flexibility and impressive user-friendliness.


PH-10 at its Best

To maximize the performance of the PH-10 Gold Note have also developed the PSU-10, a dedicated external super inductive power supply that allows the phono stage to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics, and greater three-dimensionality sound.


Features

  • Equalisation Curve Control
    • 3 EQ curves (RIAA, Decca London, American Columbia) all with Enhanced option
  • Infrasonic Filter
    • 10Hz/36dB octave
  • Frequency Response
    • 20Hz /20kHz
    • [Enhanced 20Hz-50kHz] @ +/-0.3dB
  • THD (Total Harmonic Distortion)
    • <0.05% @1kHz
  • Signal to Noise Ratio
    • 89dB
  • Dynamic Response
    • 105dB


Specification

Inputs and Outputs

  • Analogue Inputs: MM/MC two independent stereo RCA
  • Input Sensitivity: 0.1mV MC up to 10.0mV MM
  • Input Impedance: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
  • Gain: 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
  • Capacitance (MM ONLY): 220pF
  • Audio Outputs:
  • 1x unbalanced RCA
  • 1x balanced XLR
  • Line Level Outputs (fixed):
  • RCA @ 2V
  • XLR @4V
  • Output Impedance: 50Ω

Power

  • Power Consumption: 10W Super Linear supple
  • Standby Consumptio: <0.5W
  • Power Supply: 100-120V or 220-240V, 50/60Hz
  • Fuse: 0.5A F/T

Dimensions:

  • 200W | 80H | 260D mm
  • 290W | 180H | 390D mm – boxed
  • Weight:
    • 3kg – net
    • 4kg – boxed



About Gold Note

Gold Note, the leading Italian manufacturer in the High-End audio industry, was founded in Firenze in 2012 by Maurizio Aterini, who serves as the CEO and driving force behind the brand. With a focus on Italian craftsmanship, Gold Note offers a complete line of digital and analogue equipment catering to audiophiles worldwide.

Gold Note's story combines tradition and innovation, inspired by the rich history, art, and technology of Firenze. The brand values creativity, technical expertise, and a sense of beauty, which are reflected in every product they create.

The mission of Gold Note is to deliver the full experience of music, capturing the emotion of listening. They strive to achieve perfect musicality through innovative technology, exquisite materials, and Italian design. The result is a full-bodied sound with impeccable imaging, dynamics, and precise placement of instruments and voices.
Gold Note's sound is distinctively Italian, characterised by vivid realism, precise imaging, accurate instrument separation, speed, and clarity of detail. They aim to provide a natural and balanced sound that combines analytical and sentimental qualities, resulting in a unique Italian Sound.

The philosophy of Gold Note revolves around systems thinking, emphasising the synergy created by the components and the entire audio chain. They focus on the holistic approach to design, considering the sum of the parts rather than individual constituents. This approach allows them to craft a complete audio chain that delivers true Italian Sound.
As a contemporary High-End audio brand, Gold Note combines innovation and tradition to meet the needs of the modern audiophile. They embrace engineering, functional design, and manufacturing challenges, striving for excellence while representing the essence of "Made in Italy." Gold Note carefully selects suppliers known for their exceptional quality, often located in Tuscany, near their headquarters.

Quality control is of utmost importance to Gold Note. Each product undergoes thorough individual testing, ensuring the highest level of quality. The lean production system is followed, with each product assembled by a single technician.

Gold Note's commitment to delivering the ultimate musical experience and their dedication to craftsmanship has established them as a renowned brand in the High-End audio industry.





Inputs and Outputs

  • Analogue Inputs: MM/MC two independent stereo RCA
  • Input Sensitivity: 0.1mV MC up to 10.0mV MM
  • Input Impedance: 9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22kΩ, 47kΩ]
  • Gain: 45dB MM to 65dB MC with 4 options [0dB, ± 3dB, + 6dB]
  • Capacitance (MM ONLY): 220pF
  • Audio Outputs:
  • 1x unbalanced RCA
  • 1x balanced XLR
  • Line Level Outputs (fixed):
  • RCA @ 2V
  • XLR @4V
  • Output Impedance: 50Ω

Power

  • Power Consumption: 10W Super Linear supple
  • Standby Consumptio: <0.5W
  • Power Supply: 100-120V or 220-240V, 50/60Hz
  • Fuse: 0.5A F/T

Dimensions:

  • 200W | 80H | 260D mm
  • 290W | 180H | 390D mm – boxed
  • Weight:
    • 3kg – net
    • 4kg – boxed
