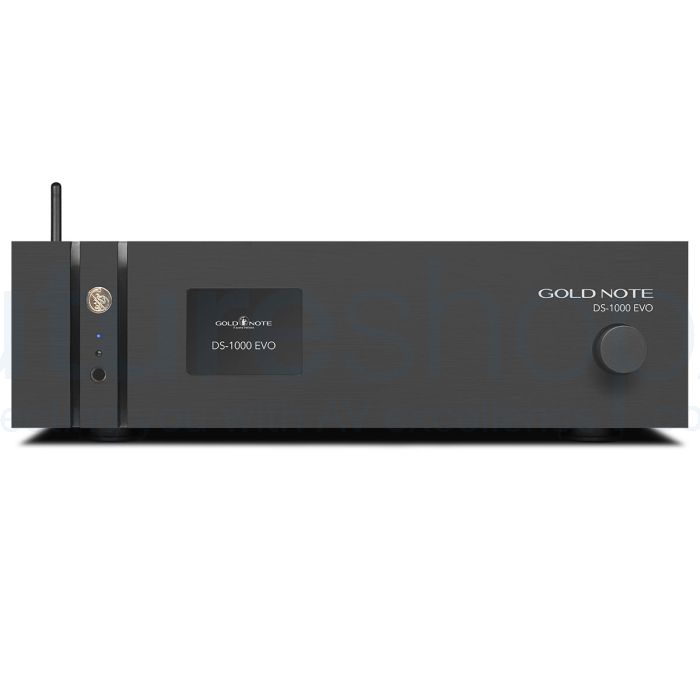

Gold Note DS-1000 EVO Streaming DAC & Headphone Amplifier

Gold Note DS-1000 EVO Streaming DAC & Headphone Amplifier

The Gold Note DS-1000 EVO Streaming DAC & Headphone Amplifier is the ultimate choice for anyone seeking the best in digital audio. With its advanced technology solutions and unique Italian sound, this device offers unrivalled sound quality and an unparalleled listening experience.

One of the standout features of the DS-1000 EVO is its Dual-Mono D/A converter design, powered by two AKM AK4493 converters. This ensures that the audio is converted with the highest fidelity and virtually zero crosstalk, resulting in crystal-clear sound. The device also supports a wide range of audio formats, including MQA, PCM, and DSD, allowing you to enjoy your favourite music in ultra-high resolution.

Streaming with the DS-1000 EVO is incredibly easy, thanks to its compatibility with popular streaming platforms such as Tidal, Spotify, Roon, and Airplay. It also has a dedicated app, GN Control, which allows you to manage your music and streaming services effortlessly. Additionally, the device is Roon Ready, meaning it offers a user-friendly interface, simple setup, and high-quality audio performance.

But the DS-1000 EVO is not just a streaming DAC, it also boasts a professional 6.3mm headphone output and a Class A preamp stage, making it a versatile device for both headphones and speakers. The headphone output has two sensitivity levels, ensuring optimal performance for a wide range of headphones. The preamp stage also allows you to control the volume directly in the analogue domain, adding an extra layer of control to your audio setup.

The pinnacle in digital audio

The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound.
The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk. Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).

Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.

STREAMING IN ULTRA-HIGH RESOLUTION

With the DS-1000 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, vTuner, and Deezer. With Tidal Connect and Spotify Connect, streaming is even easier directly from within their apps.

To access your collection of digital music, stored locally on a NAS or computer, you can use any UPnP/DLNA software from your smartphone or tablet. Or simply download our app GN Control (free for iOS and Android) to control all the features and functions of the DS-1000 EVO, as well as managing your music and streaming services.

HEADPHONES AMP AND LINE PREAMPLIFIER

The DS-1000 EVO models feature a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology we developed to get the best out of your headphones. The DS-1000 EVO LINE is also equipped with a Class A preamp stage to control the volume directly in the analogue domain, which can be bypassed when the unit is set to DAC mode.

Specification

• D/A CONVERTER CHIP: 2x AKM AK4493
• FREQUENCY RESPONSE: 20Hz-20kHz +/-0.1dB
• THD (Total Harmonic Distortion): 0.001% max
• SIGNAL TO NOISE RATIO: 125dB
• DYNAMIC RANGE: 120dB
• PREAMP STAGE VOLUME CONTROL: Available only on DS-1000 EVO LINE
• NETWORK CONNECTIVITY

  • LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps) Bluetooth: High Definition 5.0 (44/16)
• HIGH QUALITY STREAMING

  • Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner
• SUPPORTED AUDIO FORMATS

  • PCM up to 32bit/384kHz
  • DSD up to DSD256 (DSF, DFF)
  • AIFF (.aif, .aiff, .aifc)
  • ALAC
  • WAV (.wav) packed/unpacked
  • FLAC
  • MP3
  • Apple Lossless
  • OGG
  • Monkey’s
• SUPPORTED MEDIA SERVERS

  • UPnP*
  • DLNA
  • Roon
  • *UPnP server must support DSD streaming to play DSD files
• DIGITAL INPUTS

  • 1x RCA coaxial PCM up to 24bit/192kHz
  • 1x AES/EBU balanced PCM up to 24bit/192kHz
  • 2x TOS-Link PCM up to 24bit/192kHz
  • 1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz
  • 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
• ANALOGUE INPUTS

  • DS-1000 EVO LINE ONLY
  • 1x RCA unbalanced
  • 1x XLR balanced
• AUDIO OUTPUTS DAC

  • 1x RCA 2Vrms
  • 1x XLR 2Vrms
• AUDIO OUTPUTS PREAMP

  • 1x RCA unbalanced
  • 1x XLR balanced
  • 1x headphone 6,3mm jack on front panel
• OUTPUT IMPEDANCE

  • RCA 50Ω
  • XLR 100Ω
• POWER SUPPLY: 100-240V / 50-60Hz
• POWER CONSUMPTION: 30W
• FUSE: 2A T
• DIMENSIONS: 430mm W | 135mm H | 375mm D
• WEIGHT

  • Kg. 10 – net
  • Kg. 15 – boxed
• MODELS
• DS-1000 EVO
  • DAC: Dual/Mono AKM AK4493
  • Resolution: up to DSD512 and PCM 32bit/384kHz
  • Digital inputs: Ethernet, USB-A, USB-B, AES/EBU, COAX, TOS
• DS-1000 EVO LINE
  • DAC: Dual/Mono AKM AK4493
  • Resolution: up to DSD512 and PCM 32bit/384kHz
  • Digital inputs: Ethernet, USB-A, USB-B, AES/EBU, COAX, TOS
  • Analogue inputs: XLR balanced, RCA unbalanced
  • Preamplifier: Class A preamp stage with discrete components
