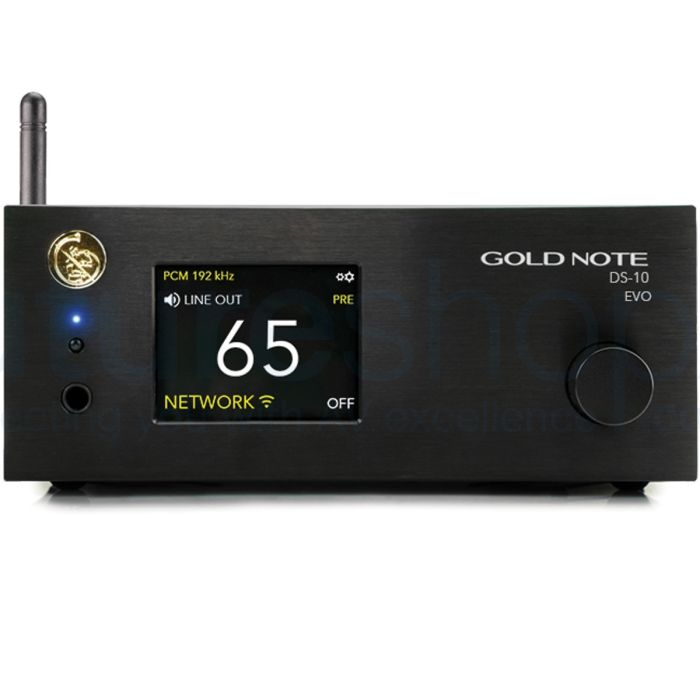

Gold Note DS-10 EVO Streaming DAC & Headphone Amplifier

Gold Note DS-10 EVO Streaming DAC & Headphone Amplifier

If you’re looking for a top-of-the-line audio device that has cutting-edge features and an intuitive user interface, the Gold Note DS-10 EVO Streaming DAC & Headphone Amplifier is the perfect choice. With its state-of-the-art DAC and network streamer, line preamplifier, and headphone amplifier, the DS-10 offers you the highest audio quality and limitless possibilities of high-resolution music. The DS-10 also has three different profiles so you can tailor the sound to your preferences and the convenient control options make it easy to manage the device. Get ready to experience unprecedented listening pleasure with this exceptional audio device.

What Gold Note say

The DS-10 is a versatile state-of-the-art streaming DAC, featuring a D/A converter with a cutting-edge streamer, a line preamplifier and a headphone amplifier. In addition to the already complete connectivity, it also features high-definition Bluetooth and audiophile headphone output. The DS-10 supports high-resolution files, such as MQA and DSD (up to DSD512), providing the best audio quality to enjoy your favorite songs. The technology of the DS-10 is enclosed in a compact-sized ultra-rigid aluminium chassis, which makes it the perfect addition to a modern High-End audio system.

With the DS-10, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner, and Deezer or access your collection of digital music stored locally on a NAS or a USB flash drive, controlling the device with our easy-to-use GN Control App on your smartphone or tablet (available for free on iOS and Android). In addition the DS-10 EVO, thanks to the implementation of Tidal Connect, you will be also able to stream directly from Tidal. A fully Roon Ready streamer, the DS-10 is also compatible with all UPnP/DLNA services, and Airplay 2.0. Simply connect it to your network using the Wi-Fi or the Ethernet port and to your power amplifier or active speakers, and get ready to explore the limitless possibilities of high-resolution music.

The DS-10 is equipped with an on/off switchable High-End Analogue Preamp stage to enable the control of the analogue volume using the remote, the SKC or the app GN Control, ensuring the best performance ever. The DS-10 also features a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology we developed to get the best out of your headphones. With the additional analogue input, the LINE model becomes the perfect integration between the Gold Note PH-10 phono stage and the PA-10 power amplifier.

Digital Chameleon Audiophile DAC

The DS-10 has a unique feature that sets it apart from any other DAC, making it the most versatile DAC available today – three different profiles can be selected to fine-tune the performance of the DAC. The DAC behaviour can be changed to adapt to the music played without modifying the audio signal and thus maintaining the highest audio quality, acting on the deemphasis, the low-pass digital filters and the DSD filter. Such profiles can be selected in real-time during music playback delivering a unique listening experience and ease of use thanks to the clear menu on the TFT display. It’s time to enjoy the unprecedented listening pleasure that only the DS-10 can offer you!

Cutting-Edge & Super Intuitive UI

You can quickly check all the functions available on the DS-10 on its large 2.8” TFT display and fully control it through the SKC (Single Knob Control) located on the front panel, the Gold Note remote control, or the dedicated App GN Control, which in addition displays on your smartphone or tablet all information registered on the track as well as the real resolution format. On top of that, the user experience of the DS-10 EVO, compared to the previous DS-10, has been further improved with a renewed interface, evolving toward greater user-friendliness and allowing for firmware updates over the air.

Roon Ready

Roon Ready network devices have Roon’s streaming technology built in, and are certified by Roon Labs to provide the highest level of quality and performance in network streaming.

Specification

• D/A Converter Chip: AKM PCM up to 32bit/768kHz and DSD512
• Frequency Response: 20Hz-20kHz +/-0.1dB
• THD (Total Harmonic Distortion): 0.001% max
• Signal to Noise Ratio: 125dB
• Dynamic Range: 120dB
• Preamp Stage Volume Control: Enabled/Disabled
• Network Connectivity: LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps), Bluetooth: High Definition 5.0 (44/16)
• High Quality Streaming: Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect,  vTuner
• Supported Audio Formats: Up to PCM 32bit/384kHz, DSD256 (DSF, DFF), AIFF (.aif, .aiff, .aifc), ALAC, WAV (.wav) packed/unpacked, FLAC, MP3, Apple Lossless, OGG, Monkey’s
• IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
• Supported Media Servers: All UPnP, DLNA, Roon
• Digital Inputs: 1x RCA coaxial PCM asynchronous up to 24bit/192kHz, 1x AES/EBU balanced PCM asynchronous up to 24bit/192kHz, 2x TOS-Link PCM asynchronous up to 24bit/192kHz, 1x USB-B up to DSD512 and PCM up to 32bit/384kHz, 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
• Analogue Input:
  • EVO: 1x 3.5mm mini-jack (input impedance 10kΩ)
  • EVO LINE: 3.5mm analogue
• Audio Outputs: DAC 1x unbalanced RCA @ 2Vrms, 1x balanced XLR @ 2Vrms, PREAMP 1x unbalanced RCA, 1x balanced XLR, 1x headphone 6,3mm jack on front panel (double gain)
• Output Impedance: 50Ω
• Power Consumption: 35W
• Fuse: 2A F
• Power Supply: 100-240V / 50-60Hz Multiple Transformer Proprietary Power Supply
• Dimensions: 200mm x 80mm x 260mm (W x H x D)
• Weight: 4.00Kg
• Finish: Black, Silver or Gold (anodised aluminium with a traditional brushed finish)
• Multifunctional remote control included
• Models: EVO, EVO Line
