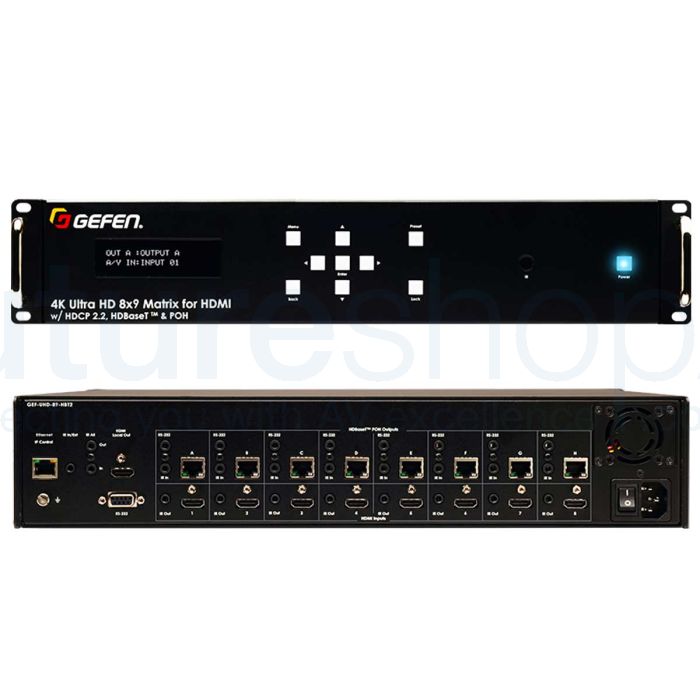

Gefen GEF-UHD-89-HBT2 4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT, & POH

£14,490.00 Special Price £13,041.00 £10,867.50
SKU
GEF-UHD-89-HBT2
Free UK Delivery
24 Months
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Gefen 4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT 2.0, and POH routes eight 4K sources to any combination of nine 4K displays.

Gefen GEF-UHD-89-HBT2 4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT, & POH



The Gefen 4K Ultra HD 8x9 Matrix for HDMI w/ HDCP 2.2, HDBaseT 2.0, and POH routes eight 4K sources to any combination of nine 4K displays. It features eight HDMI inputs, one HDMI output for local viewing/monitoring, and eight HDBaseT™ 2.0 outputs. The HDBaseT™ 2.0 outputs extend AV and controls up to 100m at 4K to eight receivers installed at remote viewing locations. Gefen’s implementation of the new HDBaseT 2.0 Colligo™ platform ensures an even more robust and resilient connection than the industry standard HDBaseT™. Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as the legacy HDCP 1.4.

The Gefen 8x9 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution). Multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are also passed through. HDBaseT™ extension between the matrix and the eight included receivers supports HDMI, 2-way IR, RS-232, and Ethernet. IR from viewing locations to the sources can be routed independent from video if need be. POH (Power Over HDBaseT™) technology provides power to the receiver units and other POH-class-compliant devices, using the same CAT-5 cable that extends the HDMI and control signals.

The Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration. This matrix can be controlled via front panel buttons, a handheld IR remote, electrical IR, RS-232, Telnet, UDP, and Gefen’s intuitive and user-friendly web server interface. An easy-to-read, super-bright OLED front panel display indicates routing status and IP settings. The matrix comes in a rack-mountable enclosure with detachable rack-ears for shelf-top placement. Low profile, surface-mountable Receiver units fit in tight places and accommodate Gefen locking HDMI cables for secure connections.



icons



Features:

  • Routes eight 4K sources to nine displays
  • Supports resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920x1200 WUXGA
  • HDCP 2.2 and 1.4 compliant
  • Extends HDMI, Ethernet, RS-232, and 2-way IR up to 100 meters (330 feet)
  • Supports 12-bit Deep Color (up to 1080p Full HD)
  • 3D pass-through
  • Lip Sync pass-through
  • IR from viewing locations to sources can be routed along with or independent from video path
  • Push button front panel controls
  • Advanced EDID Management for rapid integration of sources and displays
  • Pass-through of LPCM 7.1 and HBR (High Bit Rate) audio formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
  • Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
  • RS-232 Serial interface for use with an automation control system
  • IP control via Telnet, UDP, and the built-in web server interface
  • IR remote control
  • Gefen Syner-G™ software's Discovery and Show-Me features simplify initial IP configuration
  • Field-updatable firmware via web server interface
  • Can be placed on a shelf or mounted in a standard 19-inch wide rack

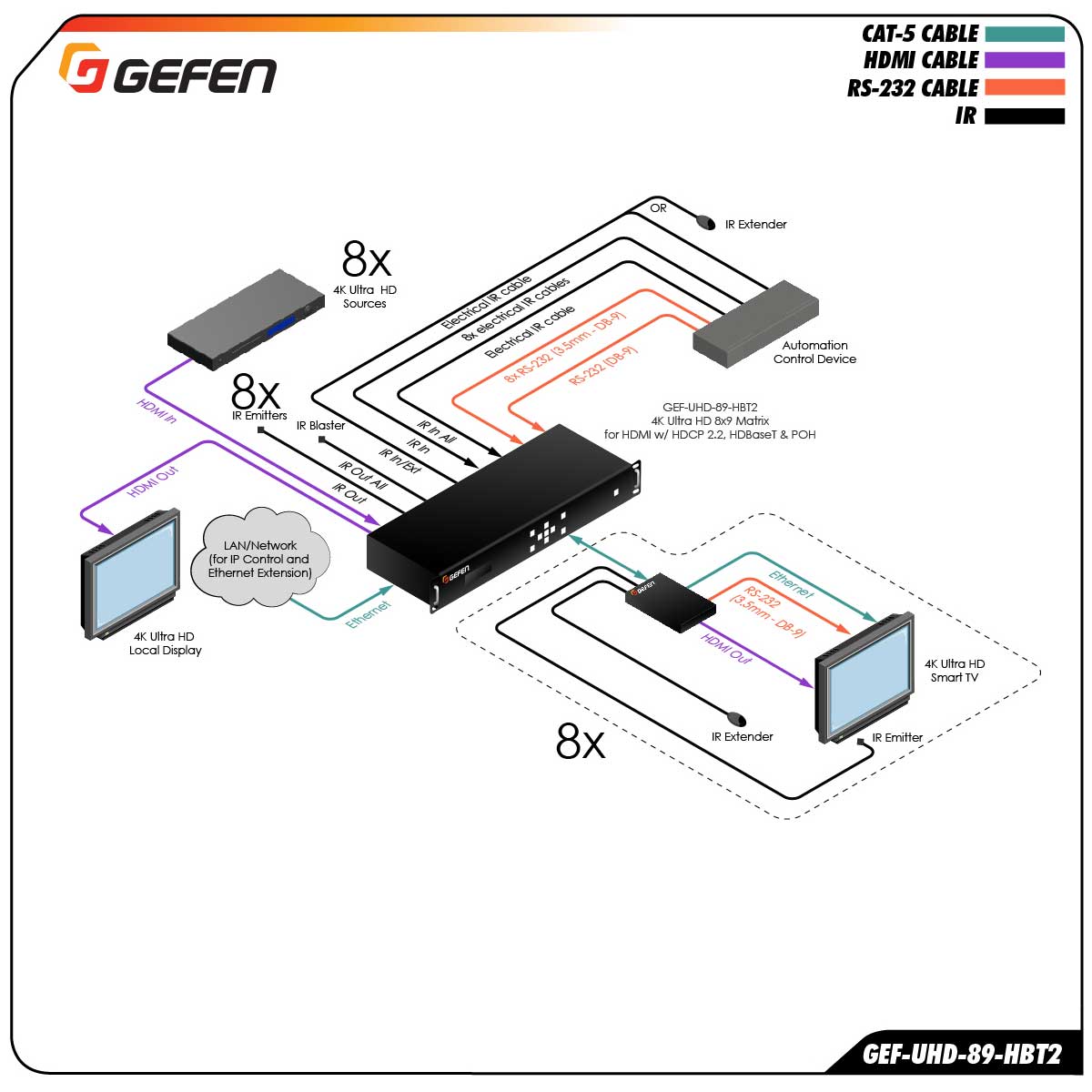

Schematics



Specification:

  • Matrix:
    • HDMI Input Connectors: (8) Type A 19-pin female, locking
    • HDMI Output Connector: (1) Type A 19-pin female, locking
    • HDBaseT™ 2.0 POH Output Connectors: (8) RJ-45
    • RS-232 serial port - control: (1) DB-9, female
    • RS-232 serial port - extension: (8) 3.5mm mini-stereo jack
    • IR In/Ext Ports - extension: (9) 3.5mm mini-stereo jack
    • IR In/Ext Port - control: (1) 3.5mm mini-stereo jack
    • IR Out Ports - extension: (9) 3.5mm mini-mono jack
    • Ethernet Port - IP Control & extension: (1) RJ-45
    • AC Power Inlet: (1) IEC type
    • IR Extender type: EXT-RMT-EXTIRN (not included)
    • IR Sensor: (1), located on front panel
    • Display: OLED, 2 rows, 20 characters per row
    • Power Button/Indicator: (1) tact-type, bi-color blue/orange backlight
    • Control Buttons/Indicators: (7) tact-type, blue backlight
    • Power Supply: 100V to 240V AC
    • Rack mounting requirements: Standard 19" rack, 2U high
    • Dimensions (excluding rack ears and connectors, W x H x D):
      • 17.25" x 3.5" x 15.75" (440mm x 89mm x 400mm)
    • Net Unit Weight: 22 lbs. (10.0 kg)
  • Reciever
    • HDMI Output Connector: (1) Type A 19-pin female, locking
    • HDBaseT™ 2.0 POH Input Connector: (1) RJ-45
    • RS-232 serial port - extension: (1) 3.5mm mini-stereo jack
    • IR In/Ext Port - extension: (1) 3.5mm mini-stereo jack
    • IR Out Port - extension: (1) 3.5mm mini-mono jack
    • Ethernet Port - extension: (1) RJ-45
    • IR Extender type: EXT-RMT-EXTIRN (not included)
    • Dimensions (excluding brackets and connectors, W x H x D):
      • 3.50" x 0.65" x 5.65" (88mm x 16mm x 143mm)
    • Net Unit Weight: 0.6 lbs. (0.25 kg)
  • System:
    • Power Consumption: 175W
    • Operating Temperature: +32 to +122 °F (0 to +50 °C)
    • Operating Humidity: 5% to 90% RH, non-condensing
    • Storage Temperature: -4 to +140 °F (-20 to +60 °C)
    • Storage Humidity: 5% to 95% RH, non-condensing
    • MTBF: 50000 hours



Box Contains:

  • (1) Matrix
  • (8) Receivers
  • Assorted accessories

Specification:

  • Matrix:
    • HDMI Input Connectors: (8) Type A 19-pin female, locking
    • HDMI Output Connector: (1) Type A 19-pin female, locking
    • HDBaseT™ 2.0 POH Output Connectors: (8) RJ-45
    • RS-232 serial port - control: (1) DB-9, female
    • RS-232 serial port - extension: (8) 3.5mm mini-stereo jack
    • IR In/Ext Ports - extension: (9) 3.5mm mini-stereo jack
    • IR In/Ext Port - control: (1) 3.5mm mini-stereo jack
    • IR Out Ports - extension: (9) 3.5mm mini-mono jack
    • Ethernet Port - IP Control & extension: (1) RJ-45
    • AC Power Inlet: (1) IEC type
    • IR Extender type: EXT-RMT-EXTIRN (not included)
    • IR Sensor: (1), located on front panel
    • Display: OLED, 2 rows, 20 characters per row
    • Power Button/Indicator: (1) tact-type, bi-color blue/orange backlight
    • Control Buttons/Indicators: (7) tact-type, blue backlight
    • Power Supply: 100V to 240V AC
    • Rack mounting requirements: Standard 19" rack, 2U high
    • Dimensions (excluding rack ears and connectors, W x H x D):
      • 17.25" x 3.5" x 15.75" (440mm x 89mm x 400mm)
    • Net Unit Weight: 22 lbs. (10.0 kg)
  • Reciever
    • HDMI Output Connector: (1) Type A 19-pin female, locking
    • HDBaseT™ 2.0 POH Input Connector: (1) RJ-45
    • RS-232 serial port - extension: (1) 3.5mm mini-stereo jack
    • IR In/Ext Port - extension: (1) 3.5mm mini-stereo jack
    • IR Out Port - extension: (1) 3.5mm mini-mono jack
    • Ethernet Port - extension: (1) RJ-45
    • IR Extender type: EXT-RMT-EXTIRN (not included)
    • Dimensions (excluding brackets and connectors, W x H x D):
      • 3.50" x 0.65" x 5.65" (88mm x 16mm x 143mm)
    • Net Unit Weight: 0.6 lbs. (0.25 kg)
  • System:
    • Power Consumption: 175W
    • Operating Temperature: +32 to +122 °F (0 to +50 °C)
    • Operating Humidity: 5% to 90% RH, non-condensing
    • Storage Temperature: -4 to +140 °F (-20 to +60 °C)
    • Storage Humidity: 5% to 95% RH, non-condensing
    • MTBF: 50000 hours
