The DVI-FM1000 Extender extends your DVI display up to 3,280 feet (1km) away from your video source. Product Code - EXT-DVI-FM1000.

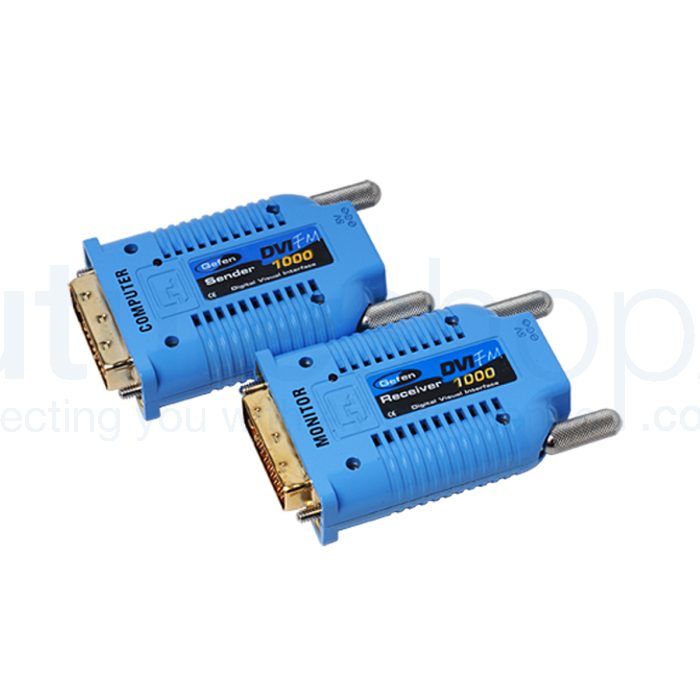

Gefen EXT-DVI-FM1000 DVI FM 1000 Extender



The DVI-FM1000 Extender extends your DVI display up to 3,280 feet (1km) away from your video source, with only two tiny transceivers required, using a 100% optical SC fiber solution with a single strand of fiber optic cable. It's a great way to extend DVI video easily and unobtrusively.



How It Works

The DVI-FM1000 sender unit plugs into your computer. The DVI FM1000 receiver unit plugs into your DVI display. A single strand of multimode SC fiber optic cable connects the Sender and the Receiver units to each other. 100% optical signal transmission media insures that the video signal is completely invulnerable to electromagnetic interference (EMI).

Note: The distance that video can be sent will depend on the resolution of the signal being sent:

  • 1920 x 1200 will be extended up to 300m (990ft)
  • 1600 x 1200 will be extended up to 500m (1,650ft)
  • 1280 x 1024 will be extended up to 1000m (3,280 ft)



Features:

  • Extends any DVI (Digital Visual Interface)-compliant device up to 3,280 ft (1km) from the computer
  • Supports video resolutions up to 1080p, 2K, and 1920 x 1200
  • Uses inexpensive and widely available single-strand multimode SC fiber optic cable
  • Automatic EDID Programming feature enables quick and correct sync of source to display
  • Invulnerability to electromagnetic influences (EMI), thanks to all-fiber construction
  • Saves space on your desktop and Increases Productivity
  • Eliminates computer noise where you work
  • Supports DDWG standard for DVI compliant monitors

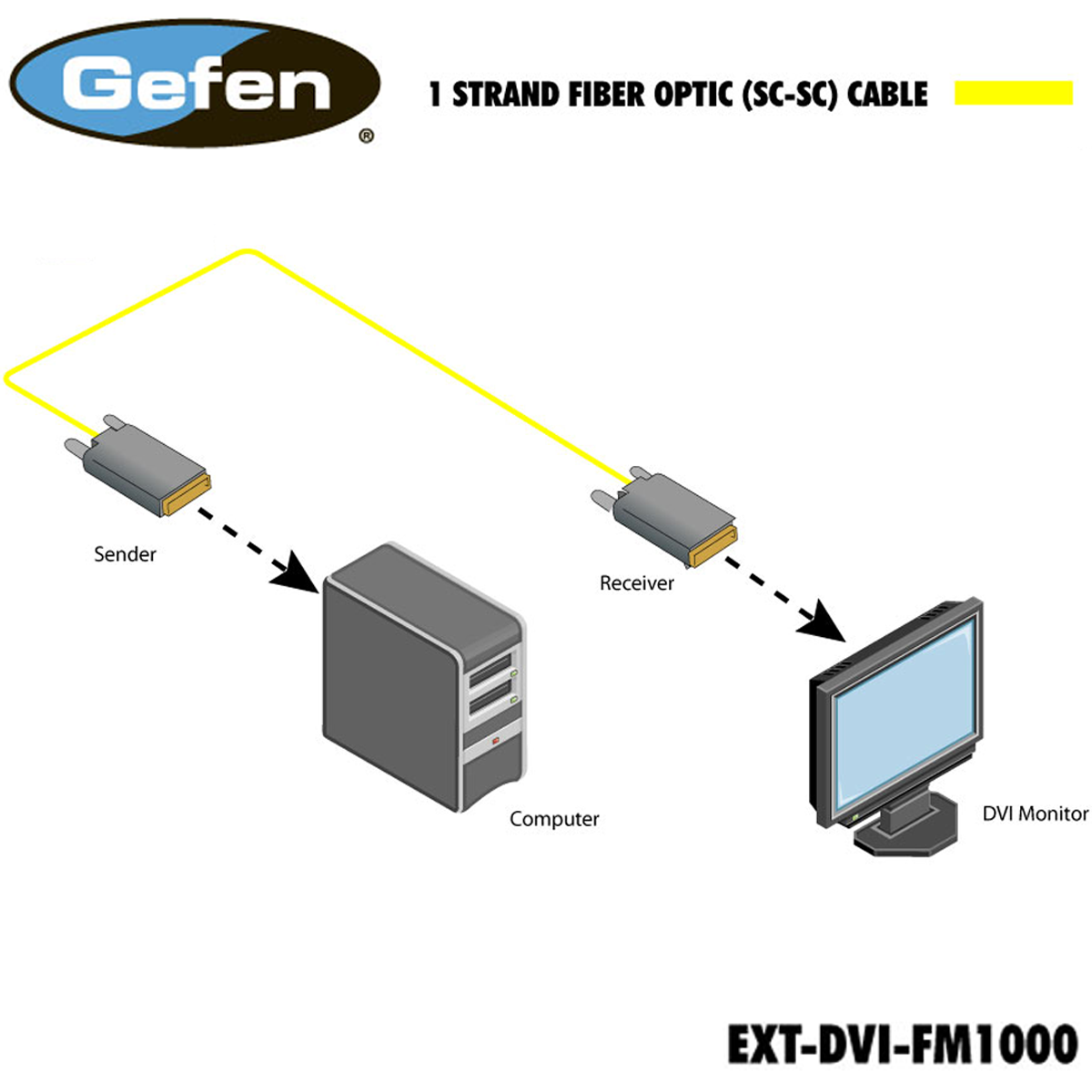

Schematics



Specifications:

  • Video Amplifier Bandwidth: 165 MHz (Single Link)
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • DVI Connector: Type DVI-D (19 pin) male
  • Link Connector: SC
  • Power Supply: 5V DC
  • Power Consumption: 2.5 Watts (max.)
  • Dimensions (WxDxH): 41mm x 66mm x 15.5mm per transceiver
  • Shipping Weight: 2.27Kgs



Box Contains:

  • DVI FM Sender Unit
  • DVI FM Receiver Unit
  • x2 5V 1A Power Supplies
  • User Manual

Specifications:

  • Video Amplifier Bandwidth: 165 MHz (Single Link)
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • DVI Connector: Type DVI-D (19 pin) male
  • Link Connector: SC
  • Power Supply: 5V DC
  • Power Consumption: 2.5 Watts (max.)
  • Dimensions (WxDxH): 41mm x 66mm x 15.5mm per transceiver
  • Shipping Weight: 2.27Kgs
