Extend DVI up to 230 feet (70 meters) over one CAT-6A cable, or up to 200 feet (60 meters) over one CAT-5e Product Code - EXT-DVI-1CAT5-SR

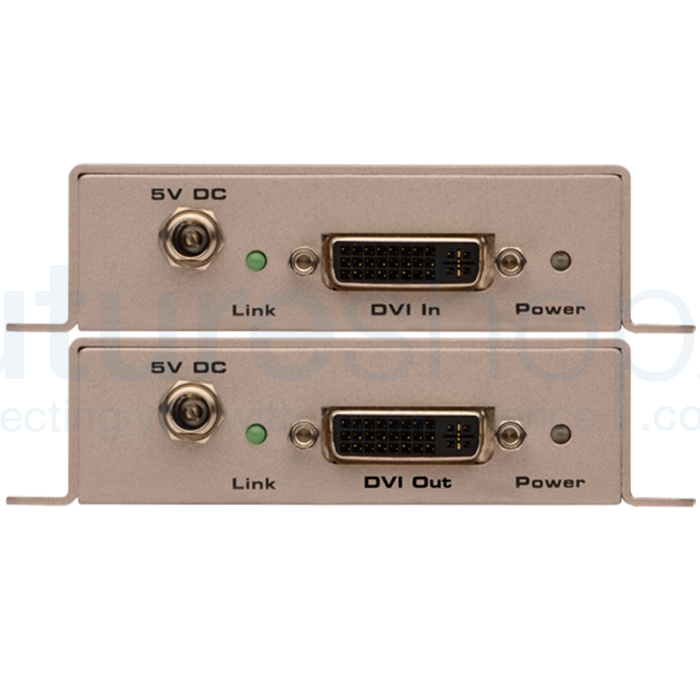

Gefen EXT-DVI-1CAT5-SR DVI ELR Lite Extender over one CAT5



The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen's ELR Lite implementation of HDBaseT® Lite™ technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.



How it works

Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.



Features:

  • Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
  • Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • EDID management for rapid integration of source and display
  • HDCP compliant
  • Locking power supplies
  • Surface-mountable

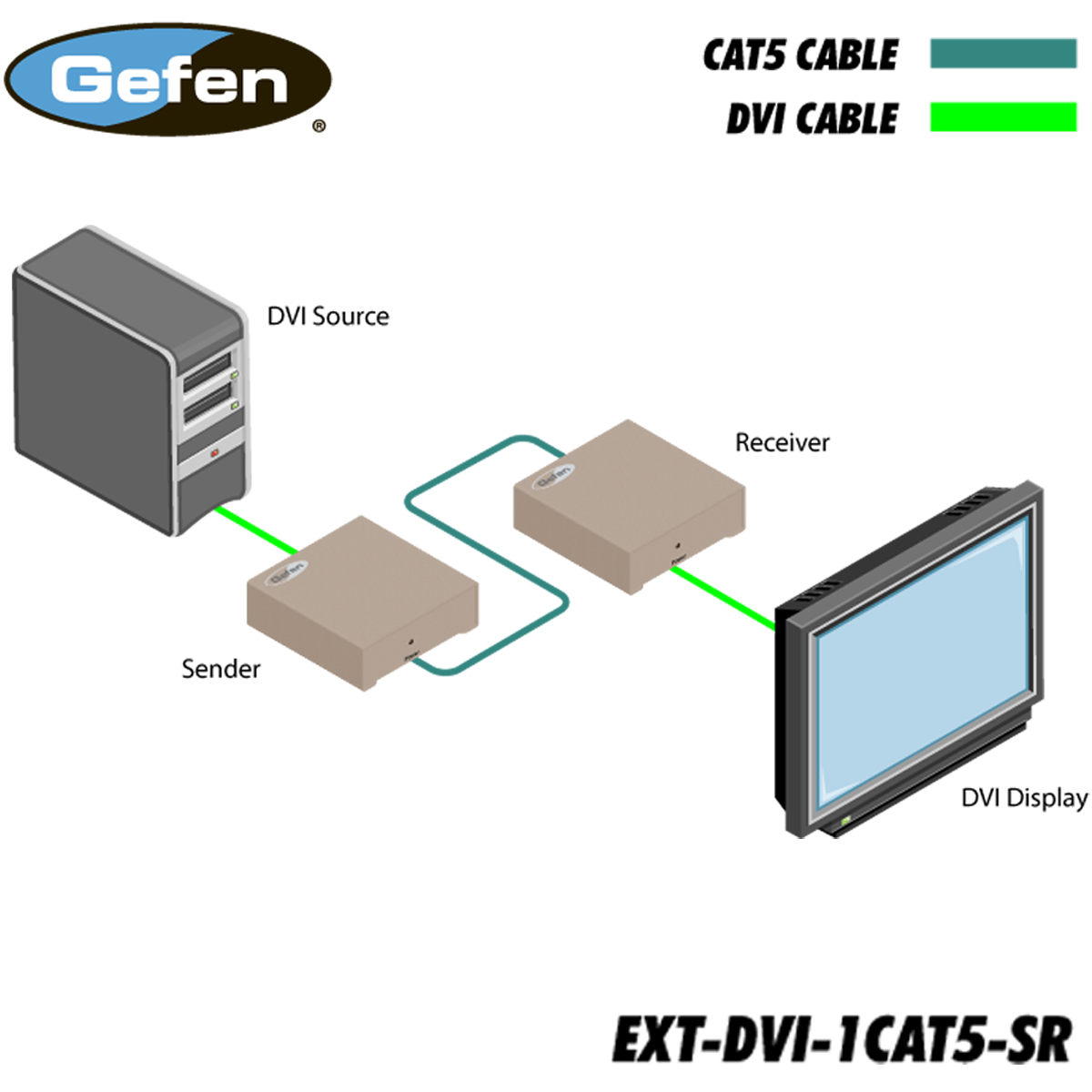

EXT-DVI-1CAT5-SR Schematics



Specifications:

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • HDCP Pass-Through Selector (Sender): (1) DIP switch
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender/Receiver): 10 W per unit (max.)
  • Operating Temperature: 0 to +45°C
  • Operating Humidity:0 to 90% RH, non-condensing
  • Dimensions (WxHxD): 110mm x 26mm x 86mm
  • Shipping Weight: 1.4 kg



Box Contains:

  • DVI ELR Lite Extender over one CAT5 - Sender Unit (EXT-DVI-1CAT5-SRS)
  • DVI ELR Lite Extender over one CAT5 - Receiver Unit (EXT-DVI-1CAT5-SRR)
  • 6 ft. Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM)
  • x2 5V DC Locking Power Supplies (EXT-PS526AIP-LP)
  • Quick-Start Guide (QSG-DVI-1CAT5-SR)



HDCP2.2 DVI 1080P HDBT

Specifications:

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • HDCP Pass-Through Selector (Sender): (1) DIP switch
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender/Receiver): 10 W per unit (max.)
  • Operating Temperature: 0 to +45°C
  • Operating Humidity:0 to 90% RH, non-condensing
  • Dimensions (WxHxD): 110mm x 26mm x 86mm
  • Shipping Weight: 1.4 kg
