Gefen EXT-DP-CP-2FO DisplayPort Extender over Fiber Optic

£2,049.60 Special Price £1,844.64 £1,537.20
SKU
EXT-DP-CP-2FO
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Gefen EXT-DP-CP-2FO extends DisplayPort up to 1000 feet (300 meters) using two strands of 50/125µm multi-mode (OM2/OM3) LC-terminated fiber optic cable. Product Code - EXT-DP-CP-2FO.

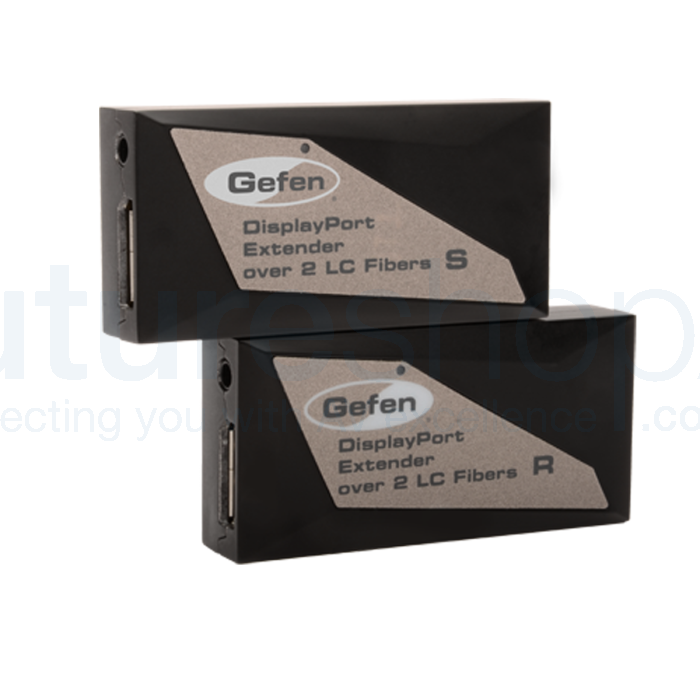

Gefen EXT-DP-CP-2FO DisplayPort Extender over Fiber Optic



The Gefen EXT-DP-CP-2FO extends DisplayPort up to 1000 feet (300 meters) using two strands of 50/125µm multi-mode (OM2/OM3) LC-terminated fiber optic cable. Resolutions up to 2560 x 1600 (WQXGA) are supported. 62.5/125µm (OM1) fiber may also be used for a maximum range of up to 500 feet (150 meters). Compared to similar copper-based solutions, optical signal transmission provides galvanic isolation and much better resistance to electromagnetic interference. Sender and Receiver modules feature cast Aluminum enclosures, providing further immunity to radiated noise. Female connectors allow optimized lengths of DisplayPort cables to be used, preventing stress on source and display connectors. This, along with the compact size of the modules help create a clean and trouble-free installation by reducing clutter around the connector panels.



How it works

Using the included DisplayPort cables, connect the computer to the Sender module and the Receiver module to a Hi-Def display. Connect up to 1000 feet (300 meters) of duplex 50/125µm multimode (OM2/OM3) LC-terminated fiber optic cable from the Sender to the Receiver unit. 62.5/125µm (OM1) fiber may also be used at a reduced maximum range of up to 500 feet (150 meters). Plug the included power supplies into the Sender and Receiver modules and to available electrical outlets. Alternately, you power the Sender and/or the Receiver unit by using the included USB Type A to DC plug cables, and connecting them between the Sender or Receiver and a USB device that is capable of supplying 5V at 500mA. Power on all associated equipment. A vibrant Hi-Def picture will appear on your display.



Features:

  • Extends DisplayPort up to 1000 feet (300 meters) over 2 strands of 50/125µm multi-mode (OM2/OM3) LC-terminated fiber optic cable
  • Extends DisplayPort up to 500 feet (150 meters) over 2 strands of 62.5/125µm multi-mode (OM1) LC-terminated fiber optic cable
  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
  • Compliant with DisplayPort 1.1a standard
  • Supports Dual-Mode DP (DP++)
  • Supports auxiliary/l²C channel over fiber
  • Cast Aluminum enclosures and Fiber optic transmission eliminate susceptibility to electromagnetic interference (EMI)
  • HDCP and DPCP-compliant
  • Compact Sender and Receiver modules and female DisplayPort connectors provide clean and easy installation
  • FCC and CE compliant for RFI (radio frequency interference) and EMI (electromagnetic immunity)

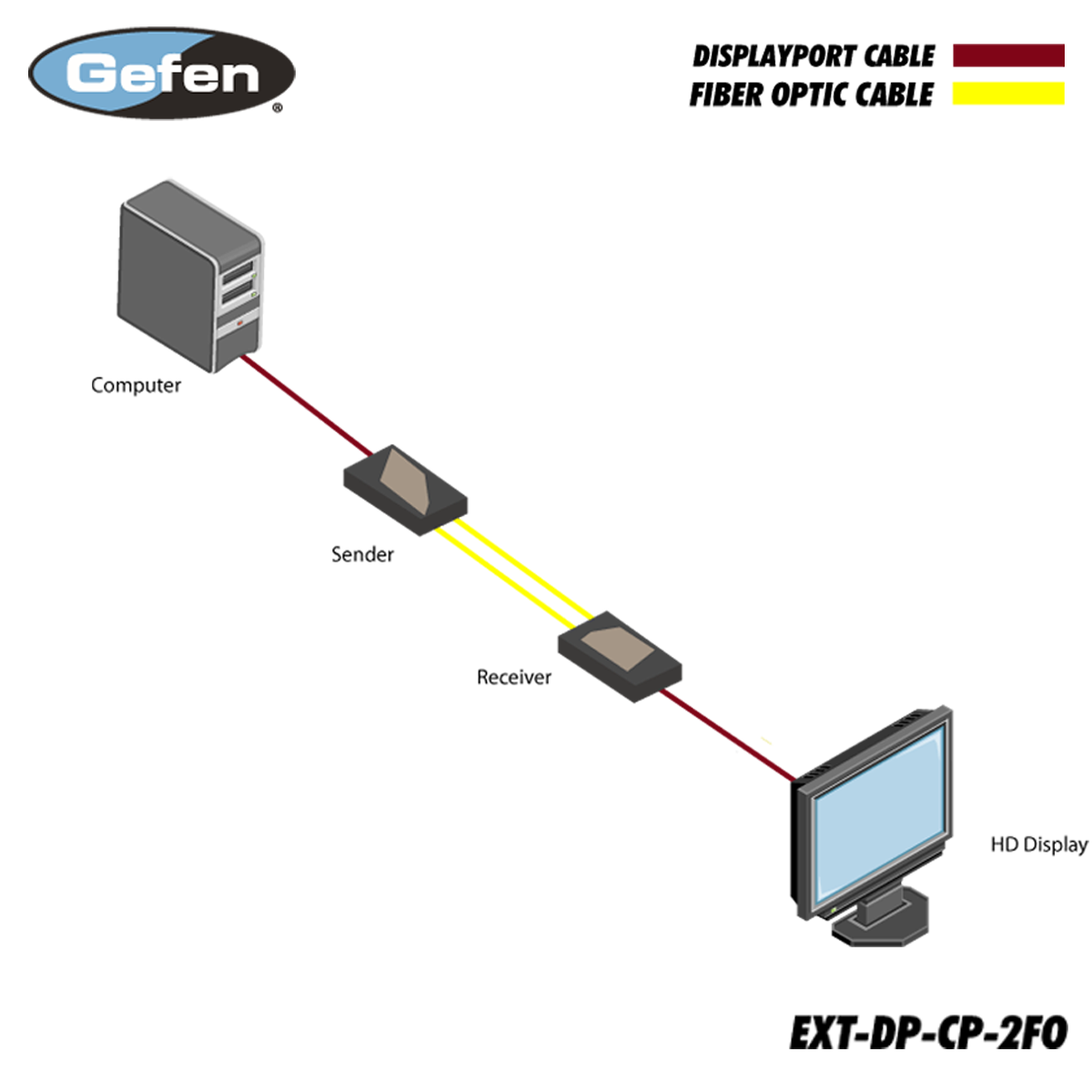

Schematics



Specifications:

  • Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)
  • Video Input Connector (Sender): (1) DP-20-pin, female
  • Video Output Connector (Receiver): (1) DP-20-pin, female
  • Link Connector (Sender/Receiver): (2) Type LC
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 2.1W max. (each)
  • Optical Power Budget: 9.4 dB
  • Operating Temperature: 0° to + 50° C
  • Storage Temperature: - 30° to + 70° C
  • Operating Humidity: 10 to 85% RH, non-condensing
  • Storage Humidity: 5 to 90% RH, non-condensing
  • Dimensions (WxHxD): 35mm x 16mm x 72mm
  • Shipping Weight: 0.8 kg



Box Contains:

  • (1) DisplayPort Extender over 2 LC Fibers (Sender Module)
  • (1) DisplayPort Extender over 2 LC Fibers (Receiver Module)
  • (2) 2 ft. DisplayPort Cable (CAB-DP-02MM)
  • (2) USB Type A to DC Cable (CAB-USB2DC-3MM)
  • (2) 5V DC Power Supplies (EXT-PS51AIP-1.3)
  • (1) Quick-Start Guide (QSG-DP-CP-2FO)

Specifications:

  • Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)
  • Video Input Connector (Sender): (1) DP-20-pin, female
  • Video Output Connector (Receiver): (1) DP-20-pin, female
  • Link Connector (Sender/Receiver): (2) Type LC
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 2.1W max. (each)
  • Optical Power Budget: 9.4 dB
  • Operating Temperature: 0° to + 50° C
  • Storage Temperature: - 30° to + 70° C
  • Operating Humidity: 10 to 85% RH, non-condensing
  • Storage Humidity: 5 to 90% RH, non-condensing
  • Dimensions (WxHxD): 35mm x 16mm x 72mm
  • Shipping Weight: 0.8 kg
