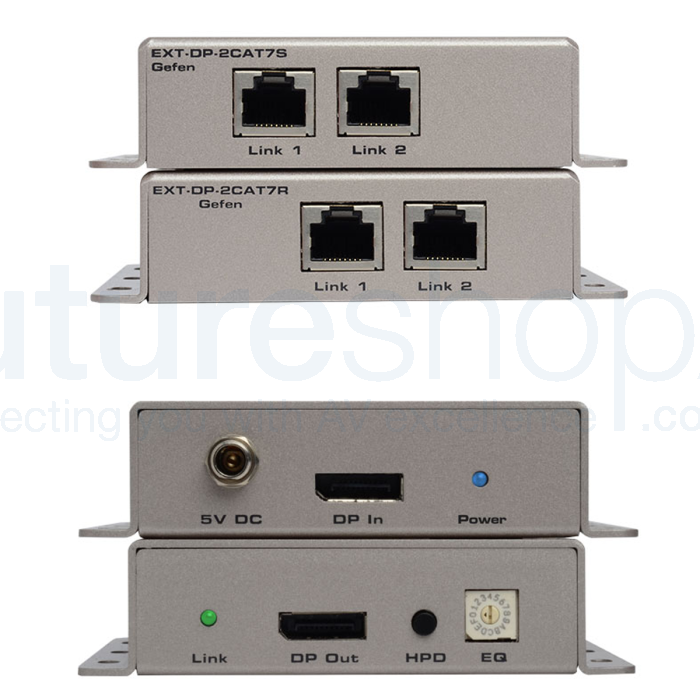

Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7

£1,171.20 Special Price £1,054.08 £878.40
SKU
EXT-DP-2CAT7
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The DisplayPort Extender over CAT-7 allows the installation of a Hi-Def display up to 100 feet (30 meters) away from a DisplayPort source using two CAT-7 cables. Product Code - EXT-DP-2CAT7.

Gefen DisplayPort Extender over CAT-7



The DisplayPort Extender over CAT-7 allows the installation of a Hi-Def display up to 100 feet (30 meters) away from a DisplayPort source using two CAT-7 cables. Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using two cables, can be supported. HDCP is also supported. The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the Sender unit, eliminating the need for an external power supply on the Receiver unit.



How it works

Connect the Sender unit to the DisplayPort source using the included DisplayPort cable. Connect the Receiver unit to the HDTV display using another DisplayPort cable. Connect the Sender unit to the Receiver unit using one or two CAT-7 cables, depending on the maximum required video resolution.Connect the included locking power supply to the Sender unit and an available electric outlet. The Receiver unit is powered by the Link 1 CAT-7 cable and does not require an external power supply. Turn on the power to the source and the display.

Note: This product extends DisplayPort video only. It does not support audio.



Features:

  • Extends DisplayPort video up to 100 feet (30 meters)
  • Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 or 1080p Full HD at 120Hz at over one CAT-7 cable
  • HDCP compliant
  • Supports DisplayPort 1.1a
  • 16-position EQ rotary switch to compensate for cable skew
  • HPD Auto-Calibration button
  • Pre-emphasis switch
  • Drive level switch
  • Boost level switches
  • Power On and Link indicators
  • Locking power supply connectors
  • Surface-mountable

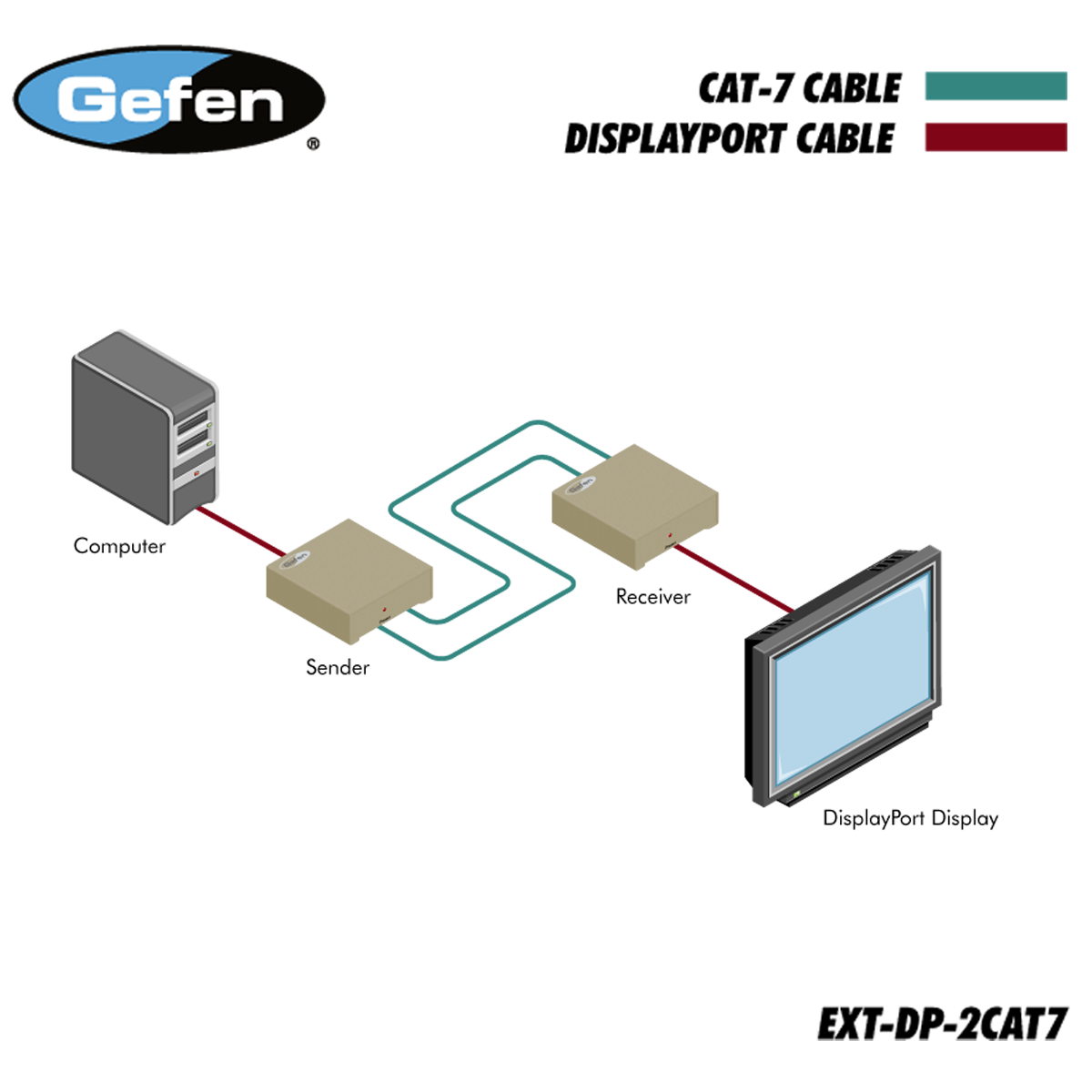

Schematics



Specifications:

  • Video Data Rate: up to 2.7 Gbps
  • Video Output Voltage: 1.2V p-p
  • Video Input Connector (Sender): (1) DisplayPort, 20-pin, female
  • Video Output Connector (Receiver): (1) DisplayPort, 20-pin, female
  • Link Connectors (Sender/Receiver): (2) RJ-45, shielded
  • EQ Switch (Receiver): (1) 16-position rotary type
  • HPD Auto Calibration button (Receiver): (1) tact-type
  • Pre-emphasis switch (Sender): (1) 3-position DIP switch
  • Drive level switch (Sender): (1) 3-position DIP switch
  • Boost Level Switches (Sender): (2) 3-position DIP switch
  • Power On indicator (Sender): (1) LED, blue
  • Link indicator (Receiver): (1) LED, green: good link, red: no link
  • Power Supply connector (Sender): (1) 5V DC, locking type
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Dimensions (WxHxD) (Sender/Receiver): 110mm x 25mm x 83mm
  • Shipping Weight: 1.4 kg



Box Contains:

  • (1) DisplayPort Extender over CAT-7 - Sender Unit (EXT-DP-2CAT7S)
  • (1) DisplayPort Extender over CAT-7 - Receiver Unit (EXT-DP-2CAT7R)
  • (1) 6 ft.DisplayPort Cable (CAB-DP-06MM)
  • (1) 5V DC Locking Power Supply (EXT-PS526AIP-LP)
  • (1) Quick-Start Guide (QSG-DP-2CAT7)

Specifications:

  • Video Data Rate: up to 2.7 Gbps
  • Video Output Voltage: 1.2V p-p
  • Video Input Connector (Sender): (1) DisplayPort, 20-pin, female
  • Video Output Connector (Receiver): (1) DisplayPort, 20-pin, female
  • Link Connectors (Sender/Receiver): (2) RJ-45, shielded
  • EQ Switch (Receiver): (1) 16-position rotary type
  • HPD Auto Calibration button (Receiver): (1) tact-type
  • Pre-emphasis switch (Sender): (1) 3-position DIP switch
  • Drive level switch (Sender): (1) 3-position DIP switch
  • Boost Level Switches (Sender): (2) 3-position DIP switch
  • Power On indicator (Sender): (1) LED, blue
  • Link indicator (Receiver): (1) LED, green: good link, red: no link
  • Power Supply connector (Sender): (1) 5V DC, locking type
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Dimensions (WxHxD) (Sender/Receiver): 110mm x 25mm x 83mm
  • Shipping Weight: 1.4 kg
