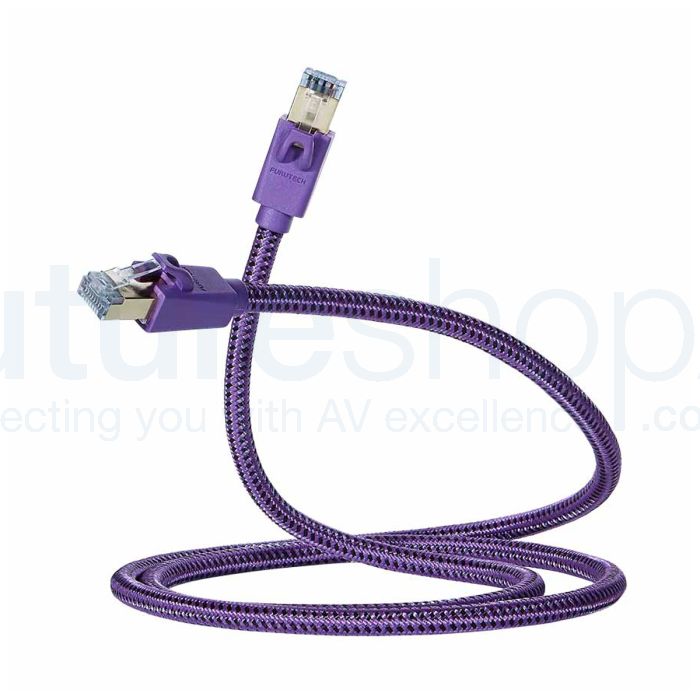

Furutech LAN-8 NCF Ethernet Cable

Furutech LAN-8 NCF Ethernet Cable

The LAN-8 is Furutech's first CAT8 ethernet cable, and offers fantastic performance. It features an NCF treated shell, which eliminates static and converts thermal energy into infrared, and by using nano ceramic and nano carbon powders Furutech are able to achieve further dampening. This cable can transmit data at 40GBps and is fully CAT8 certified.

What Furutech say

Furutech’s LAN-8 NCF features a connector shell incorporating their proprietary Nano Crystal² Formula (NCF). NCF uses a special crystalline material that Furutech claims has two ‘active’ properties.

First, they say, it generates negative ions that eliminate static. Second, it converts thermal energy into far-infrared. Furutech combines this material with nano sized ceramic particles and carbon powder for their additional ‘piezoelectric effect’ damping properties.

The brand claim that the resulting Nano Crystal² Formula is the “ultimate electrical and mechanical damping material”.

Rating

• Ultra-high-speed transmission cable with speeds up to 40Gbps 2000MHz 24AWG S/FTP
• Triple Shielding, Deep 24k gold plated RJ45 connector with NCF shell
• Category 8 compatible Ethernet LAN cable.
• Category 8 (8P8C S/FTP)

Features

• The LAN-8 NCF is a beautifully engineered and built Category 8 S/FTP twisted pair cable for Ethernet and other high-speed signal transfer.
• NCF Connector Shell (Multi-material hybrid construction）- NCF features a special crystalline material that has two 'active' properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional 'piezoelectric effect' damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products. NCF delivers improvements in the depth and focus of the sound stage, harmonics and tonal balance with NCF. Low frequencies are cleaner, with a greater sense of definition made possible by a lowered noise floor.
• Category 8 is backward compatible with Categories 7 and 6. It also features improved specifications for crosstalk and system noise than Category 7 with added shielding for each individual wire pair and the cable as a whole. Besides the additional shielding, the LAN-8 NCF features twisted pairs with the number of twists per unit length increasing RF shielding and protecting from crosstalk.
• Category 8 cable allows 40 Gigabit Ethernet and frequencies of up to 2000 MHz (Category 7 X 3.3). Noise interference resistant, providing a fast and stable network environment.
• Main conductor wire: 24 AWG (19/0.12) Silver plated α (Alpha) OCC conductor for minimal transmission loss.
• RJ45(8P8C) Connector: α (Alpha) non-magnetic conductor with deep 24k gold plating and 24k gold-plated copper alloy body with minimal magnetic properties preventing signal degradation.
• 3 Layered Shielding with superior noise isolation aluminum foil and copper braiding exceeding shielding effects of conventional cables. Effectively isolates noise dramatically improving sound reproduction.
• The best damping and insulation materials for improved frequency extension and tonal balance.
• Jacket: UL/CL3 approved flammability grade; RoHS Compliant Flexible PVC (Black) and high-quality nylon yarn braided sleeve single effect preventing internal resonance and exhibiting improved damping performance. OD: 7.0±0.1mm approx.
• Production Lengths: 0.6M/1.2M/1.8M/2.5M/3.6M/5M and 7.5M/10M by request.

Specification

• α (Alpha) conductor is the fine OCC conductor wires treated with the α (Alpha) process.
• Main conductor: 24 AWG Silver plated α (Alpha) OCC conductor
• Insulation: Special Foamed PE OD.: 1.35±0.05mm, 4 Twisted Pairs
• Blue/White; Orange/White; Green/White; Brown/White
• Shield 1: AL foil Conductive layer to the outside
• Shield 2: AL foil Double-sided conductive
• Shield 3: α (Alpha) Pure copper wire (16/10/0.10) braiding layer
• Jacket: UL/CL3 approved flammability grade; RoHS Compliant Flexible PVC (Black)
• Sleeve: High quality nylon yarn braided (Purple/Black)

About Furutech

Furutech, founded in 1988, designs and manufactures an extraordinary range of A/V cables made with extremely high purity OCC single-crystal oxygen-free copper. Furutech have several complete lines of analog and digital, power and coaxial cables available in terminated and bulk quantities. Furutech make a wide range of highest quality OEM A/V connectors and other signal transfer parts including power, speaker, IEC and specialized Hyper Audio Quality outlet receptacles. All metal components are treated with Furutech’s proprietary 2-Stage Alpha Cryogenic and Ring Demagnetization Process during manufacture that ensures the lowest achievable levels of distortion and noise.

Furutech offers a full line of elegantly engineered and designed power distribution and filter components made with an attention to detail found nowhere elsewhere. Furutech knows each and every part of the chain, no matter how small, is as important as the next, so they lavish maximum attention on all aspects of AC power transfer. As with cables, the separate parts go through the complete Alpha Process, and also benefit from the effects of GC-303, an applied material that absorbs EMI (Electromagnetic Interference). Furutech's Reference Line of cables and interconnects also include this anti-EMI technology.

Furutech's multistep and highly specialized techniques result in extremely low-noise, fast and undistorted signal transfer that begins with the incoming AC mains power, an important factor overlooked by many.

At Furutech, everyone there is passionately devoted to reaching the highest watermark in reference-grade A/V cables, OEM parts and accessories for home and car audio where Furutech maintain a very strong presence. Furutech's mission is building the absolutely best products imaginable whatever the effort involved, and offering them at a price/performance ratio that deeply satisfies every purchaser. Furutech’s Pure Transmission Design Concept improves every element of signal transmission, from the AC to the speaker.
