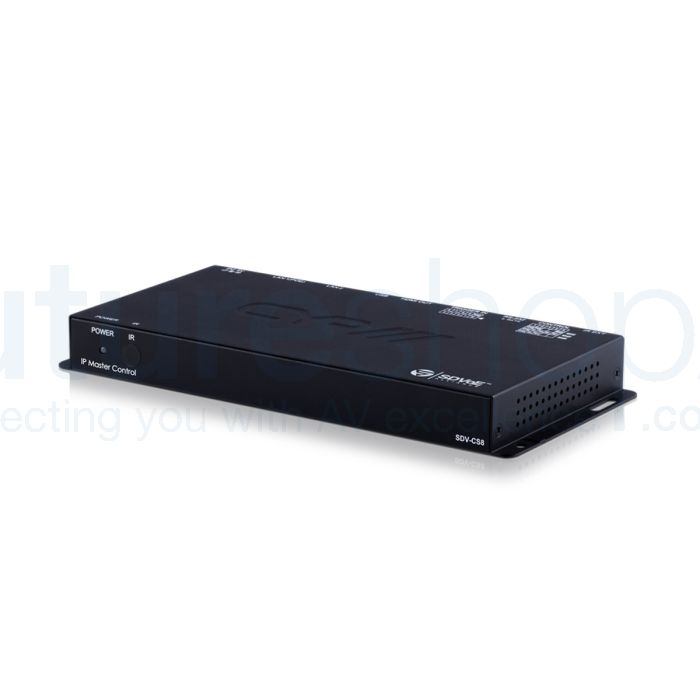

CYP SDV-CS8 SDVoE 10G AV over IP Master Controller and Configurator

£1,235.86 £1,029.88
SKU
CYP SDV-CS8
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The SDV-CS8 by CYP is an efficient way of controlling multiple SDVoE extender within the same network, using the WebGUI to configure the transmitters, receivers or transceivers.

CYP SDV-CS8 SDVoE 10G AV over IP Master Controller and Configurator



The SDV-CS8 by CYP is an efficient way of controlling multiple SDVoE extender within the same network, using the WebGUI to configure the transmitters, receivers or transceivers.



What CYP say



​The SDV-CS8 is a powerful and flexible solution for controlling multiple SDVoE extenders within same network. The SDV-CS8 provides effortless configuration of the extenders (Transmitters, Receivers or Transceivers) to easily define and configure channel routing using the WebGUI. It is also possible to define and switch routes using customized groups or presets over multiple video zones.

Additionally, this unit supports controlling the matrix, video wall, and multiviewer modes of connected SDVoE extenders. Dependent on the scaler mode, this product supports instant switching between selected video transmitters. The settings of all connected Transmitter/Receiver units, including IP address, Subnet mask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by connecting an HDMI display and USB keyboard & mouse to the SDV-CS8. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a lectern or table within a conference room or classroom environment. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.



Features



  • Enables the management and configuration of multiple compatible SDVoE extenders through a single WebGUI
  • Control over matrix, video wall, and multi-viewer modes using WebGUI presets
  • Rapid Switching time between transmitters
  • Definable display groups
  • WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection
  • HDMI output displays the WebGUI and system status
  • Dual LAN ports enable control over the local network as well as independant access to the controller separate to the distribution network
  • Supports the use of a USB mouse and keyboard providing control of the WebGUI (Optional)
  • Can be powered directly by Power over Ethernet (PoE) when connected to an Ethernet switch that follows the 802.3af PoE standard
  • Trigger Control Keypad support for simple single-button preset activation
  • Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers



Specification



  • Inputs-
    • 2x RJ45 [2x Individual Network IP]
    • 1x Phoenix (3 pin) [1x RS-232]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • POE PSU- PoE
  • PSU- 5V/2.6A
  • Dimensions- 135mm [W] x 117mm [D] x 25mm [H]
  • Net Weight- 640g
  • Gross Weight- 1066g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

  • Inputs-
    • 2x RJ45 [2x Individual Network IP]
    • 1x Phoenix (3 pin) [1x RS-232]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • POE PSU- PoE
  • PSU- 5V/2.6A
  • Dimensions- 135mm [W] x 117mm [D] x 25mm [H]
  • Net Weight- 640g
  • Gross Weight- 1066g
