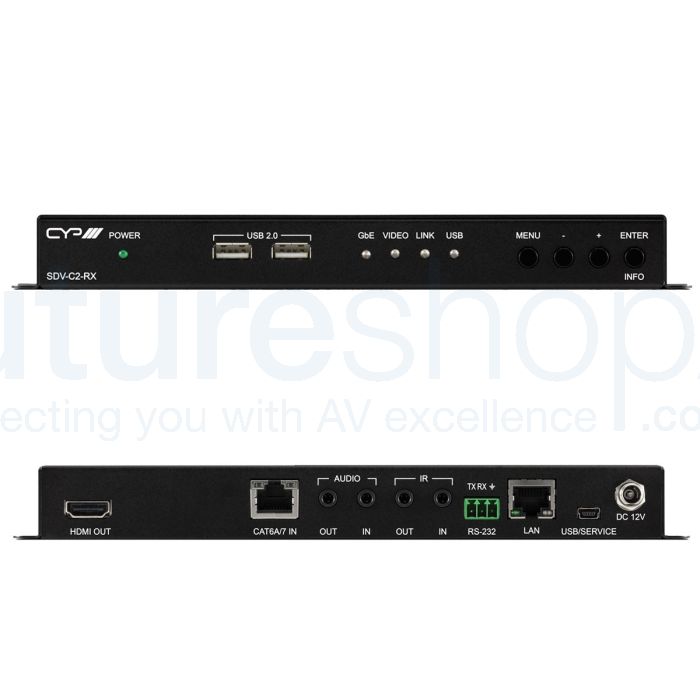

CYP SDV-C2-RX – UHD+ HDMI AV over IP Receiver

£1,521.20 £1,267.67
SKU
CYP SDV-C2-RX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The SDV-C2-RX is a high-quality AV extension solution designed for 10G IP Networks with minimal latency. Featuring a sophisticated ultra-light compression scheme (generally lossless for most content), it excels in extending 4K audio/video streams (HDMI or DisplayPort) and data over the network.



CYP SDV-C2-RX – UHD+ HDMI AV over IP Receiver



The SDV-C2-RX is a high-quality AV extension solution designed for 10G IP Networks with minimal latency. Featuring a sophisticated ultra-light compression scheme (generally lossless for most content), it excels in extending 4K audio/video streams (HDMI or DisplayPort) and data over the network.

Pass-through mode supports advanced HDMI content such as HDR, 10-bit colour, and multi-channel HD Bitstream audio. With high-quality 10 Gigabit Ethernet ports and Cat.6A or superior cable, it enables point-to-point transmission of the video signal up to 100m. The system supports the transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB 2.0, and Ethernet, offering a comprehensive AV extension solution.



Features

  • HDMI 2.0 and DVI 1.0 compatible
  • HDCP 2.2 and HDCP 1.x compliant
  • 1 Cat.6A input
  • 1 HDMI output
  • 1 analogue stereo input & 1 analogue stereo output
  • 2 USB 2.0 (Type-A) ports and 1 USB 2.0 (Mini-B) port
  • IP routable with minimum latency (requires optional IP Master Controller or control software)
  • Ultra-light compression, lossless for most content
  • Extension up to 100m in Point-to-Point mode (with Cat.6A cable)
  • Supports independent breakaway A/V matrix switching with minimum latency, video wall generation, and multi-view compositing (requires optional IP Master Controller/control software)
  • Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
  • Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI or DP sources
  • Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software
  • Unit can be powered directly by PoE when connected to a 10 Gigabit Ethernet (10GbE) switch that provides PoE (802.3at)
  • Basic configuration via front panel buttons with an OSD
  • Supports the use of an external control centre (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information)

CYP SDV-C2-RX SchematicSpecification

  • Inputs:
    • 1x RJ45 [1x SDVoE CAT HDMI & Propriety Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x Phoenix (3 pin) [1x RS-232]
    • 1x RJ45 [1x LAN Propriety Data]
    • 1x USB Micro [1x Service Port Propriety Data]
  • Outputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 2x USB Type A [2x Propriety Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • POE PSU: PoE
  • PSU: 12V/3A
  • Dimensions: 108mm [W] x 231mm [D] x 25mm [H]
  • Net Weight: 700g
  • Gross Weight: 1700g


About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

  • Inputs:
    • 1x RJ45 [1x SDVoE CAT HDMI & Propriety Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x Phoenix (3 pin) [1x RS-232]
    • 1x RJ45 [1x LAN Propriety Data]
    • 1x USB Micro [1x Service Port Propriety Data]
  • Outputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 2x USB Type A [2x Propriety Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • POE PSU: PoE
  • PSU: 12V/3A
  • Dimensions: 108mm [W] x 231mm [D] x 25mm [H]
  • Net Weight: 700g
  • Gross Weight: 1700g
