CYP PUV-44XPL-AVLC-KIT – 4 x 4 HDMI Full 4K HDBase1 LITE Matrix with AVLC & Audio De-embedding

£2,650.62 £2,208.85
SKU
PUV-44XPL-AVLC-KIT
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP PUV-44XPL-AVLC-KIT is a 4 x 4 HDMI matrix that supports 4K UHD video with HDR and Dolby Vision, featuring Adaptive Visually Lossless Compression (AVLC) technology for high-quality transmission over HDBaseT. It offers flexible control options, audio de-embedding, and Power over HDBaseT, making it ideal for professional AV setups.

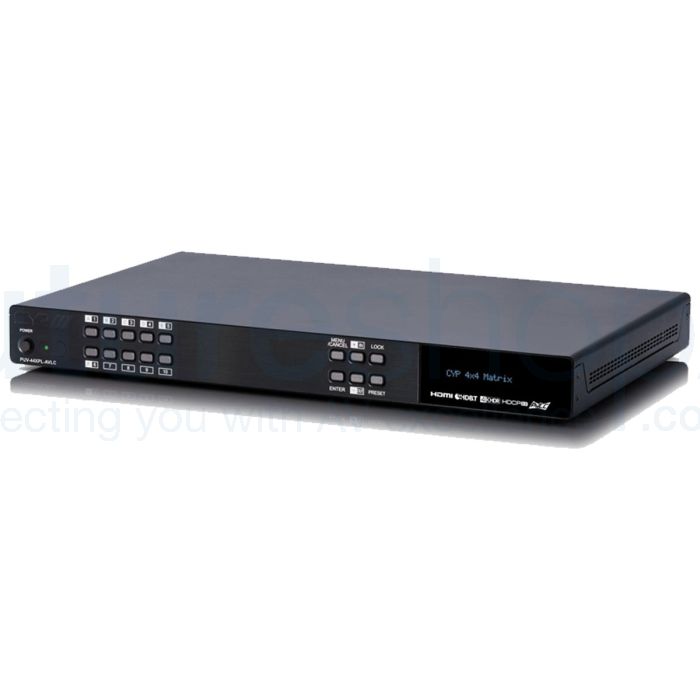

CYP PUV-44XPL-AVLC-KIT – 4 x 4 HDMI Full 4K HDBase1 LITE Matrix with AVLC & Audio De-embedding



If you are in need of a high-quality, reliable 4 x 4 HDMI matrix, then the CYP PUV-44XPL-AVLC-KIT is the perfect choice for you. This next generation matrix has taken inspiration from its successful predecessor, the PUV-44XPL-4K22, and improved upon it to offer an even better performance.

One of the standout features of the PUV-44XPL-AVLC is its ability to support the transmission of video in resolutions up to 4K UHD with HDR and Dolby Vision, HDCP 2.2, and HDMI 2.0. This means you can enjoy stunning, high-definition visuals from your HDMI sources without any loss of quality. Additionally, with the AVLC (Adaptive Visually Lossless Compression) technology, you can transmit data rates of up to 18Gbps, even with the 10.2Gbps limitation of HDBaseT technology.

The matrix also offers independent video output scaling on two of the HDBaseT outputs, allowing you to transmit a 4K HDR image to a standard 1080p HD display within an AV setup. This makes it a versatile and convenient solution for a variety of setups.

Furthermore, the HDBaseT outputs allow for transmission of audio and video via a single CAT5e/6/7 cable up to 60m (40m for HDR content). This ensures a clean and clutter-free setup while still delivering high-resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio.

The PUV-44XPL-AVLC also boasts audio breakout with de-embedded analogue L/R audio outputs for each of the HDBaseT zones, as well as Power over HDBaseT (PoH) function to power the supplied PUV-1710LRX-AVLC receivers. This matrix also supports 2-way IR and RS-232 pass-through for seamless control and integration into your system.

Control of the matrix is easy and convenient with options such as manual selection buttons, IR, RS-232, Telnet, or web GUI. CYP even provides control drivers for all major control systems, making it an ideal choice for any professional AV setup.



Features

  • HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
  • Routes 4 HDMI sources to 4 displays using 4 HDBaseT outputs
  • High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
  • AVLC (Adaptive Visually Lossless Compression)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings up to 40 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports HDCP repeating and CEC functions
  • Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • 2U rack mounted design

PUV-44XPL-AVLC-KIT

Specification

Inputs:

  • 4x HDMI [4x HDMI  Uncompressed AV and Data]
  • 5x 3.5mm Stereo mini-jack [5x Infra Red Receiver]
  • 1x 9pin Dsub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x Service Port Propriety Data]

Outputs:

  • 4x RJ45 [4x HDBaseT - AVLC HDMI & Propriety Data]
  • 8x RCA [4x Analogue  Stereo (L/R)]
  • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
  • POE PSU: PoH
  • PSU: 24V/6.25A
  • Dimensions: 438mm [W] x 270mm [D] x 44mm [H]
  • Net Weight: 3.642kg
  • Gross Weight: 6.50kg



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

Inputs:

  • 4x HDMI [4x HDMI  Uncompressed AV and Data]
  • 5x 3.5mm Stereo mini-jack [5x Infra Red Receiver]
  • 1x 9pin Dsub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x Service Port Propriety Data]

Outputs:

  • 4x RJ45 [4x HDBaseT - AVLC HDMI & Propriety Data]
  • 8x RCA [4x Analogue  Stereo (L/R)]
  • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
  • POE PSU: PoH
  • PSU: 24V/6.25A
  • Dimensions: 438mm [W] x 270mm [D] x 44mm [H]
  • Net Weight: 3.642kg
  • Gross Weight: 6.50kg
