CYP PUV-2608TX – HDBaseT2 Transmitter & Multi-Format Switch with USB for the Reverse Power PUV-2600 Series

£715.51 £596.26
SKU
PUV-2608TX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

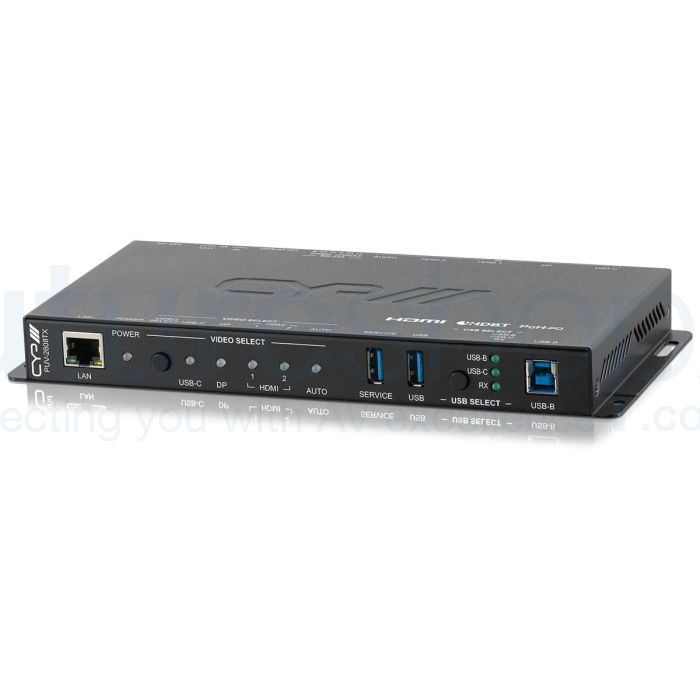

The CYP PUV-2608TX is a versatile HDBaseT2 Transmitter & Multi-Format Switch that supports HDMI, DisplayPort, and USB-C inputs, transmitting uncompressed audio/video, Ethernet, USB, IR, and RS-232 over a single Cat.6/7 cable up to 100 meters. It features advanced capabilities like reverse PoH, KVM extension, 4K@60Hz resolution support, per-input EDID management, and multiple control options, making it a comprehensive solution for high-quality and efficient signal management.

CYP PUV-2608TX – HDBaseT2 Transmitter & Multi-Format Switch with USB for the Reverse Power PUV-2600 Series



The CYP PUV-2608TX is a must-have for anyone looking for a high-performance HDBaseT2 Transmitter & Multi-Format Switch with USB capabilities. This versatile product offers two HDMI, a DisplayPort, and USB-C inputs, making it compatible with a wide variety of devices. With its USB connectivity, audio embedding, and advanced features such as reverse PoH, this product is a game-changer in the world of HDBaseT technology.

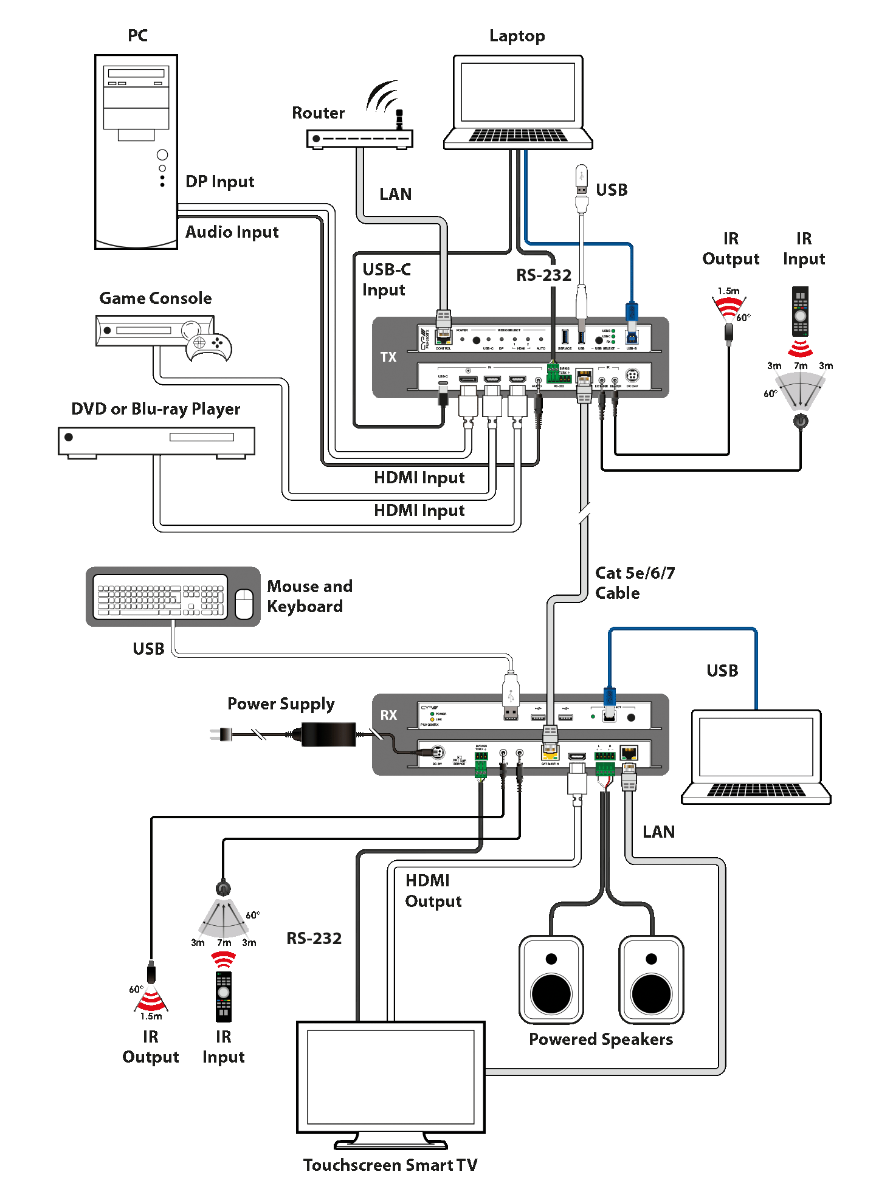

One of the most impressive features of the PUV-2608TX is its ability to send uncompressed audio/video, along with Ethernet, USB, IR, and RS-232, over a single Cat.6/7 cable for up to 100 meters. This eliminates the need for multiple cables, making installations hassle-free and cost-effective. Additionally, its HDMI, DisplayPort, and USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit), ensuring a high-quality viewing experience.

The PUV-2608TX also offers a highly flexible KVM extension configuration, with 3 selectable USB host connections and 5 USB device ports. This allows for seamless control of multiple devices, making it a convenient option for any setup. Moreover, the USB-C input can provide up to 60W of power to connected devices, making it a versatile choice for charging devices.

Signal management features such as automatic source switching and advanced EDID and HDCP management make this product a user-friendly and efficient option. It also offers basic signal event automation, which can automatically send customised commands to external devices. With its front panel buttons, webGUI, Telnet, and RS-232 control options, the PUV-2608TX offers easy configuration and control.

Not only is the PUV-2608TX a powerful and feature-packed product, but it is also compliant with HDMI 2.0, DisplayPort 1.4, USB-C, and DVI 1.0 standards. It also supports various audio formats and offers per-input EDID management, ensuring compatibility with a wide range of devices.



Features

  • HDMI 2.0, DisplayPort 1.4, USB-C, and DVI 1.0 compliant
  • HDCP 1.x and 2.2 compliant
  • 1 HDBaseT output
  • Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input
  • Supports Deep Colour input up to 12-bit
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input
  • HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic down conversion to 1080p for any sources that exceed HDBaseT’s bandwidth limitations, such as 4K@60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources
  • Supported HDBaseT feature set: HD Video & Audio, PoH (PD), and Control Extension (Bi-directional IR/RS-232/USB)
  • Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
  • Analogue audio may be embedded with all sources
  • USB Type-C input can provide power (up to 60W) to any connected device (only available when the unit is powered locally)
  • Per-input EDID management with internal or external EDID options
  • Supports manual input selection or automatic input selection with hot plug detection
  • Basic signal event automation (via RS-232 or CEC)
  • Supports optionally being powered via PoH from a compatible HDBaseT receiver
  • Controllable via front panel button, WebGUI, Telnet, or RS-232

PUV-2608TX

Specification

Inputs:

  • 2x HDMI [2x HDMI Uncompressed AV and Data]
  • 1x Display Port [1x Uncompressed AV]
  • 1x USB-C [1x USB-C / Thunderbolt]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • 1x Phoenix (3 pin) [1x Console port RS-232]
  • 1x Phoenix (3 pin) [1x Bypass RS-232]
  • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • 1x RJ45 [1x IP Control Propriety Data]
  • 1x USB 3 Type B [1x USB Power & Data]

Outputs:

  • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • 2x USB Type A [2x USB Propriety Data]
  • POE PSU: PoH
  • PSU : 24V/3.75A
  • Dimensions: 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight: 600g
  • Gross Weight: 1400g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

Inputs:

  • 2x HDMI [2x HDMI Uncompressed AV and Data]
  • 1x Display Port [1x Uncompressed AV]
  • 1x USB-C [1x USB-C / Thunderbolt]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
  • 1x Phoenix (3 pin) [1x Console port RS-232]
  • 1x Phoenix (3 pin) [1x Bypass RS-232]
  • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • 1x RJ45 [1x IP Control Propriety Data]
  • 1x USB 3 Type B [1x USB Power & Data]

Outputs:

  • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
  • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • 2x USB Type A [2x USB Propriety Data]
  • POE PSU: PoH
  • PSU : 24V/3.75A
  • Dimensions: 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight: 600g
  • Gross Weight: 1400g
