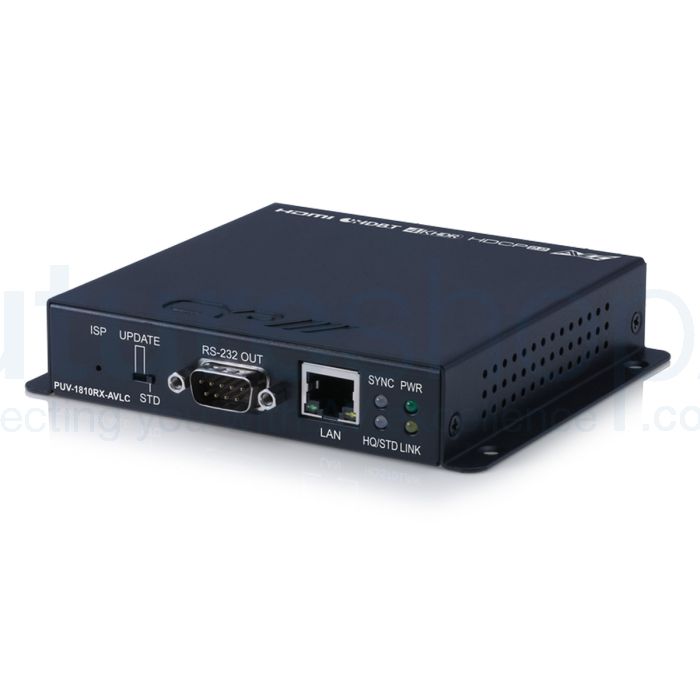

CYP PUV-1810RX-AVLC 100m HDBaseT™ HDR Receiver

£357.74 £298.12
SKU
CYP PUV-1810RX-AVLC
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PUV-1810RX-AVLC by CYP is capable of receiving HDMI, IR, RS-232 and PoH signals over a single CAT6a/7 cable, with a video resolution of up to 4K/60Hz and the additional ability to receive LAN signals. This product is designed to be paired with a compatible transmitter.

CYP PUV-1810RX-AVLC 100m HDBaseT™ HDR Receiver (4K, HDCP2.2, PoH, LAN, 18Gbps)



The PUV-1810RX-AVLC by CYP is capable of receiving HDMI, IR, RS-232 and PoH signals over a single CAT6a/7 cable, with a video resolution of up to 4K/60Hz and the additional ability to receive LAN signals. This product is designed to be paired with a compatible transmitter.



What CYP say



​The new PUV-1810RX-AVLC Receiver enables video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals from a distance of 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 70m.

Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a compatible transmitter. The result is a perfect 6G 4K visually lossless image delivered to the display screen.



Features



  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals



Specification



  • Inputs-
    • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x 9pin Dsub [1x RS-232 Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
    • 1x RJ45 [1x LAN Serving]
  • POE PSU- PoH
  • Dimensions- 116mm [W] x 128mm [D] x 16mm [H]
  • Net Weight- 357g
  • Gross Weight- 572g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
