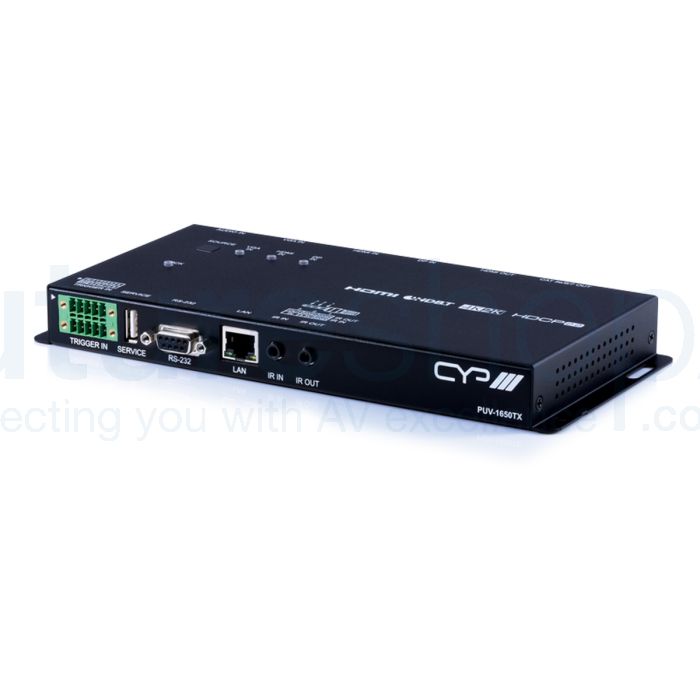

CYP's PUV-1650-TX can transmit 4K/60Hz signals up to 100m over HDBaseT and can be powered by PoE from the compatible RX receiver.
CYP's PUV-1650-TX can transmit 4K/60Hz signals up to 100m over HDBaseT and can be powered by PoE from the compatible RX receiver.
The PUV-1650TX has been designed with collaboration in mind, it's the perfect turnkey solution for extending and switching video in commercial applications. The PUV-1650TX/RX not only provide total AV conversion and extension, they also add a level of system control throughout the meeting space. The unit includes HDMI, DisplayPort & VGA inputs offering total meeting space compatibility.
Sources can be transmitted up to 100m (1080p) and 4K@60Hz (4:2:0 8-bit) can be transmitted over 70m over CAT 6/7 cable. The compatible receiver can scale the HDBaseT video source or local HDMI input to match the connected displays resolution requirements.
The PUV-1650 differs from other HDBaseT extender sets with its additional layer of control. This unit provides an interface for a remote control keypad or trigger interface which could be placed in a variety of installation scenarios (Lecterns, meeting room tables, podiums, etc...). This interface allows the user to control a wide range of devices and macro commands from the touch of a button over the local network. Complimentary control products within the CYP range include the CR-TG1 & CR-KP products.
The TX also features 'Top Panel' controls for direct control of the device (with OSD) and the added benefit of a WebGUI, RS232 and LAN control. Using the WebGUI interface timed events can be stored on the unit for added system control.
A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing meeting room solutions.
CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
