CYP PUV-1530RX 100m HDBaseT™ Slimline Receiver (4K, HDCP2.2, PoH, LAN, OAR)

£350.50 Special Price £327.10 £272.58
SKU
CYP PUV-1530RX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

​​The PU-1530RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), OAR (Optical Audio Return), and LAN signals up to 100m. Product code: PUV-1530RX

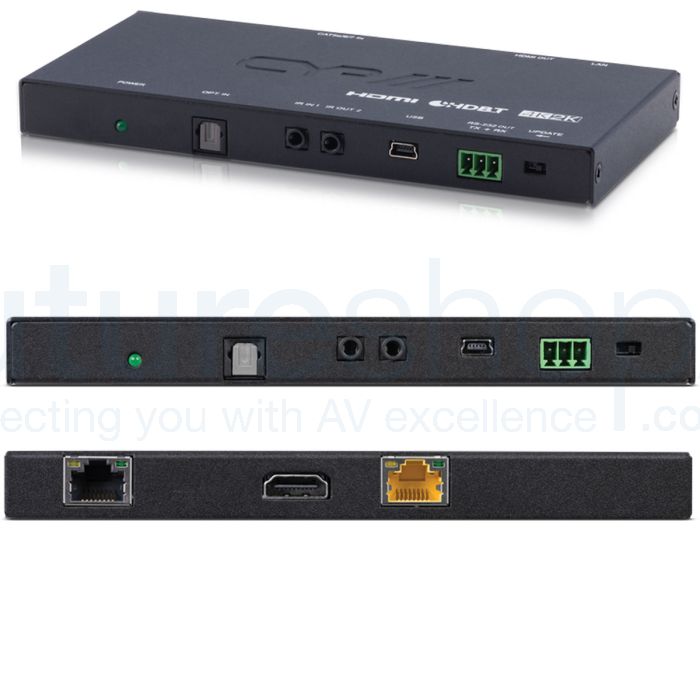

CYP PUV-1530RX 100m HDBaseT™ Slimline Receiver (4K, HDCP2.2, PoH, LAN, OAR)



​​​​The PU-1530RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), OAR (Optical Audio Return), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m.



Features:

  • HDCP2.2 Compliant
  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Optical Audio Return (OAR)
  • Supports optical sampling rate up to 48kHz
  • Supports HDCP repeating and CEC functions
  • Supports 3D signals

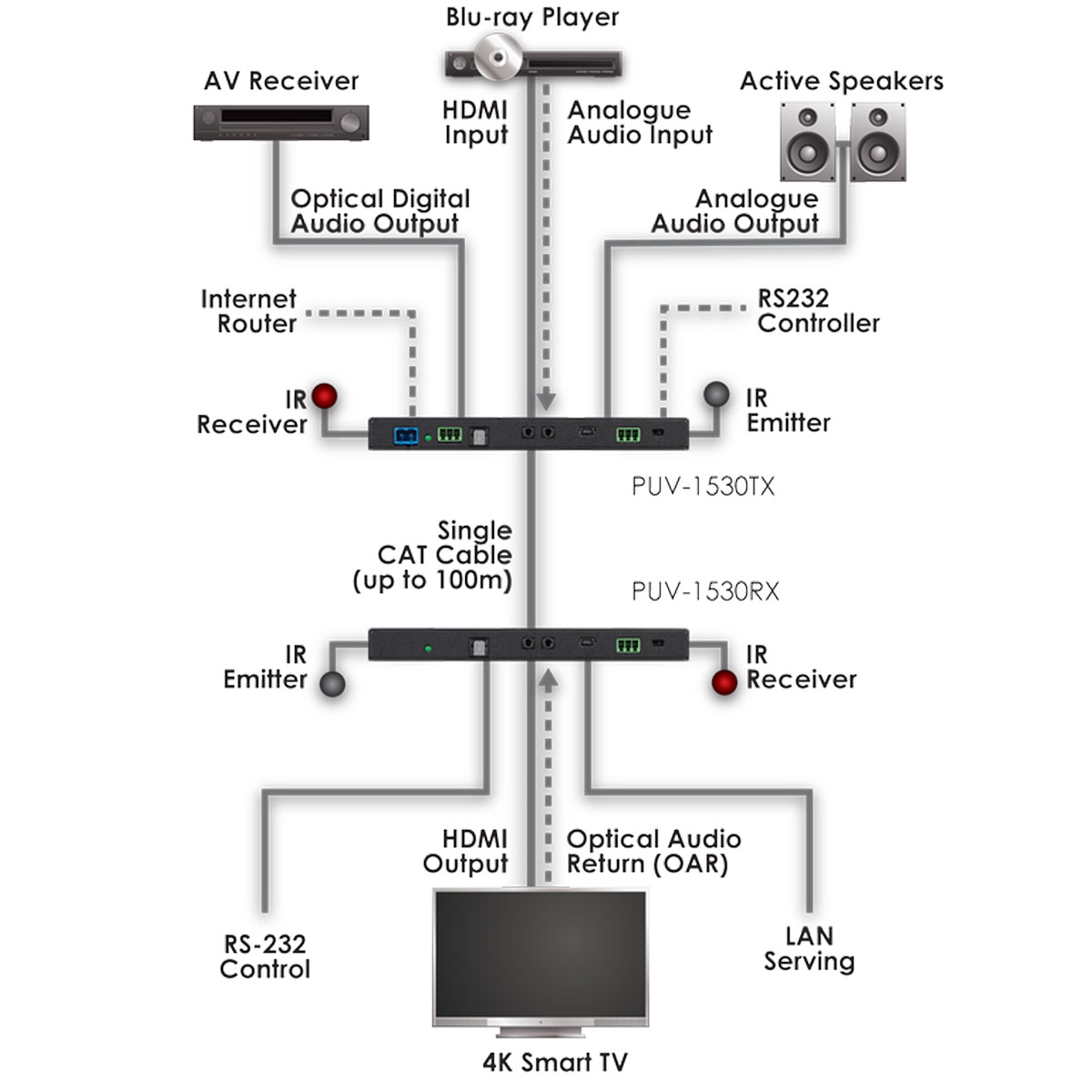

Schematics



Specification:

  •  Inputs:
    • 1x RJ45 [1x HDBaseT - HDMI & Propriety Data]
    • 1x Toslink [1x OAR digital pathway - 2 Channel LPCM / DTS / Dolby Digital]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs:
    • 1x HDMI [1x HDMI - Uncompressed AV and Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
    • 1x RJ45 [1x LAN Serving]
    • 1x Phoenix (3 pin) [1x RS-232]
  • POE PSU: PoH
  • Dimensions: 80mm [W] x 165mm [D] x 20mm [H]
  • Net Weight: 335g
  • Gross Weight: 950g



8bit 10bit 12bit 3d3 POH 4KUD LAN SERVING HDBT 4k-2k HDMI



Box Contains:

  • 1x PUV-1530RX
  • 1x Manual

Specification:

  •  Inputs:
    • 1x RJ45 [1x HDBaseT - HDMI & Propriety Data]
    • 1x Toslink [1x OAR digital pathway - 2 Channel LPCM / DTS / Dolby Digital]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs:
    • 1x HDMI [1x HDMI - Uncompressed AV and Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
    • 1x RJ45 [1x LAN Serving]
    • 1x Phoenix (3 pin) [1x RS-232]
  • POE PSU: PoH
  • Dimensions: 80mm [W] x 165mm [D] x 20mm [H]
  • Net Weight: 335g
  • Gross Weight: 950g
