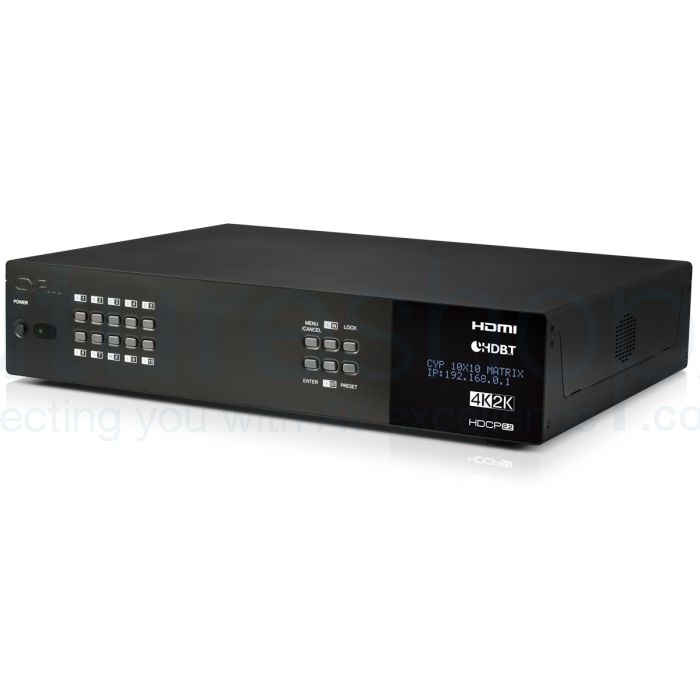

CYP PUV-1082PL-4K22N 10 x 10 4K HDMI HDBase1 LITE Matrix with OAR, Audio I/O Zones and full Audio Matrix

£5,216.60 £4,347.17
SKU
PUV-1082PL-4K22N
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP PUV-1082PL-4K22N 10 x 10 4K HDMI HDBaseT LITE Matrix offers extensive video and audio management with support for 4K2K@60Hz, HDCP 2.2, and HDMI 2.0, making it ideal for high-resolution content transmission. It features an advanced audio matrix with 14 outputs and 10 inputs, HDBaseT lite convergence, PoH, multiple control options, and supports various HD audio formats, ensuring comprehensive and seamless integration for both video and audio applications.

CYP PUV-1082PL-4K22N 10 x 10 4K HDMI HDBase1 LITE Matrix with OAR, Audio I/O Zones and full Audio Matrix



This CYP PUV-1082PL-4K22N HDMI/HDBaseT Matrix is a must-have for anyone looking for top-of-the-line video and audio transmission capabilities. With support for resolutions up to 4K2K@60Hz, HDCP 2.2, and HDMI2.0, this matrix can handle all of your high-resolution content with ease.

What sets this matrix apart is its advanced audio matrix, featuring 14 audio outputs and 10 audio inputs. These can not only be used for de-embedding HDMI audio to the audio outputs, but also for embedding audio to the HDBaseT and HDMI outputs. This allows for seamless integration with remote sources and audio zones, providing a comprehensive audio management system.

The PUV-1082PL-4K22N also boasts impressive features such as HDBaseT lite convergence, Power over HDBaseT (PoH) capabilities, and control options including manual selection buttons, IR, RS-232, Telnet, and Web GUI. It even comes with pre-gain volume control on all audio inputs, automation via CEC sending, and an advanced pattern generator.

Furthermore, this matrix supports pass-through of HD audio formats, including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio. It also has Optical Audio Return (OAR) technology, allowing the optical input on the receiver to be routed back to the audio matrix.

In addition to its impressive audio and video capabilities, this matrix also offers advanced EDID management, bi-directional IR support, and an on-screen display for input and output naming. And with its sleek 2U rack mounted design, it's both functional and stylish.



Features

  • HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
  • Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs
  • HDBaseT lite convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K@24Hz 4:2:2 HDR
  • Supports resolutions up to 4K@60 (YUV 4:4:4) on HDMI output ports
  • Supports automatic 4K@60 YUV 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs
  • Supports automatic 4K HDR conversion for HDBaseT outputs as required
  • Supports HDMI inputs and HDBaseT / HDMI outputs HEX based CEC messaging
  • Supports HDBaseT output downscaling
  • 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
  • Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, fully independent audio only zones and HDMI audio embedding and de-embedding
  • Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration
  • Supports on-board audio over CAT inputs and outputs for transmission up to 150m
  • Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs
  • Supports Audio Pre-Gain level adjustment for all digital and analogue audio inputs
  • HDBaseT outputs with Optical Audio Return (OAR) system
  • Audio mixer function
  • Advanced internal and external EDID management with 4 sets of configurable EDID settings
  • Internal test pattern generation for self-testing and sink device testing.
  • Bi-directional IR support over HDBaseT
  • Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • Supports OSD for input and output naming plus banner text
  • 2U rack mounted design

PUV-1082PL-4K22NSpecification

Inputs:

  • 10x HDMI [10x HDMI Uncompressed AV and Data]
  • 8x RCA [4x Configurable Analogue Audio Stereo (L/R)]
  • 2x RJ45 [2x Bi-directional Audio plus Propriety Data]
  • 9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]
  • 1x RJ45 [1x Control IP]
  • 1x 9pin Dsub [1x RS-232 Data]
  • 2x Toslink [2x Optical 2 Channel LPCM]
  • 2x RCA [2x Coaxial 2 Channel LPCM]

Outputs:

  • 8x RJ45 [8x HDBaseT HDMI & Propriety Data]
  • 2x HDMI [2x HDMI Uncompressed AV and Data]
  • 24x RCA [12x Zone and Extended Audio Stereo (L/R)]
  • 11x 3.5mm Stereo mini-jack [11x Infra Red Emitter]
  • POE PSU: PoH
  • PSU : 24V/6.25A
  • Dimensions: 438mm [W] x 316mm [D] x 88mm [H]
  • Net Weight: 6000g
  • Gross Weight: 10500g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

Inputs:

  • 10x HDMI [10x HDMI Uncompressed AV and Data]
  • 8x RCA [4x Configurable Analogue Audio Stereo (L/R)]
  • 2x RJ45 [2x Bi-directional Audio plus Propriety Data]
  • 9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]
  • 1x RJ45 [1x Control IP]
  • 1x 9pin Dsub [1x RS-232 Data]
  • 2x Toslink [2x Optical 2 Channel LPCM]
  • 2x RCA [2x Coaxial 2 Channel LPCM]

Outputs:

  • 8x RJ45 [8x HDBaseT HDMI & Propriety Data]
  • 2x HDMI [2x HDMI Uncompressed AV and Data]
  • 24x RCA [12x Zone and Extended Audio Stereo (L/R)]
  • 11x 3.5mm Stereo mini-jack [11x Infra Red Emitter]
  • POE PSU: PoH
  • PSU : 24V/6.25A
  • Dimensions: 438mm [W] x 316mm [D] x 88mm [H]
  • Net Weight: 6000g
  • Gross Weight: 10500g
