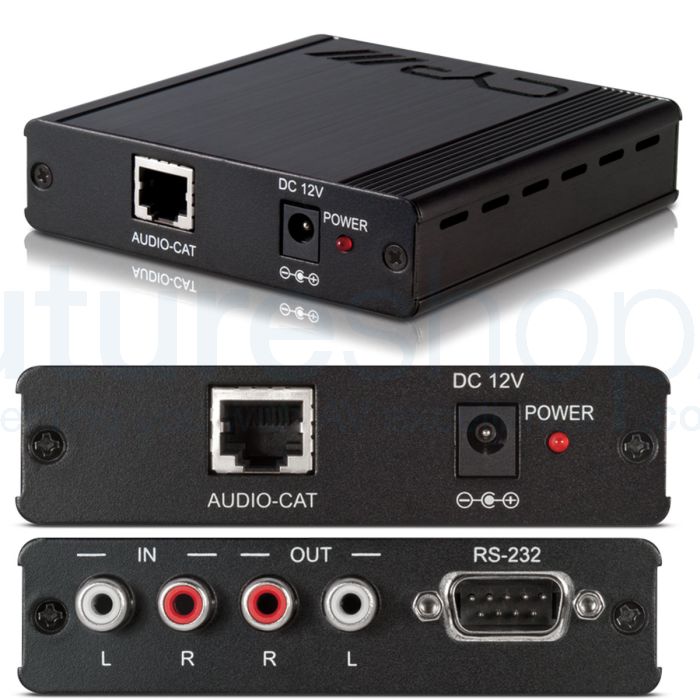

CYP PU-305BDA-RX Bi-Directional Analogue Audio over Single CAT Receiver

£165.88 £138.23
SKU
CYP PU-305BDA-RX
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PU-305BDA-RX is an analogue Stereo over CAT5e/6/7 Receiver which can send and receive analogue audio signals over a single run of CAT5e/6 cable up to 300m. Product Code - PU-305BDA-RX.

CYP Bi-Directional Analogue Audio over Single CAT Receiver



The PU-305BDA-RX is an analogue Stereo over CAT5e/6/7 Receiver which can send and receive analogue audio signals over a single run of CAT5e/6 cable up to 300m.

It has the added benefit of RS-232 pass-through allowing control of devices and the Power over Ethernet (PoE) function can power the receiver unit eliminating the need for a second power supply. As the unit has bi-directional capabilities, this device can also send audio signals back to the connected transmitter.

This receiver is designed to be used with the PU-305BDA-TX Analogue Audio Transmitter or the PU-305BD-TX Digital Audio Transmitter. When combined with the PU-305BD-TX digital transmitter, the analogue audio signal will be converted and outputted as digital audio by the transmitters' built-in digital to analogue converter (DAC).



Features:

  • Product Code - PU-305BDA-RX
  • Supports bi-directional transmission (in/out) of analogue audio and RS-232 pass-through
  • Supports Power over Ethernet (PoE) to the Receiver unit
  • Bi-directional RS-232 control
  • 2 Years Warranty

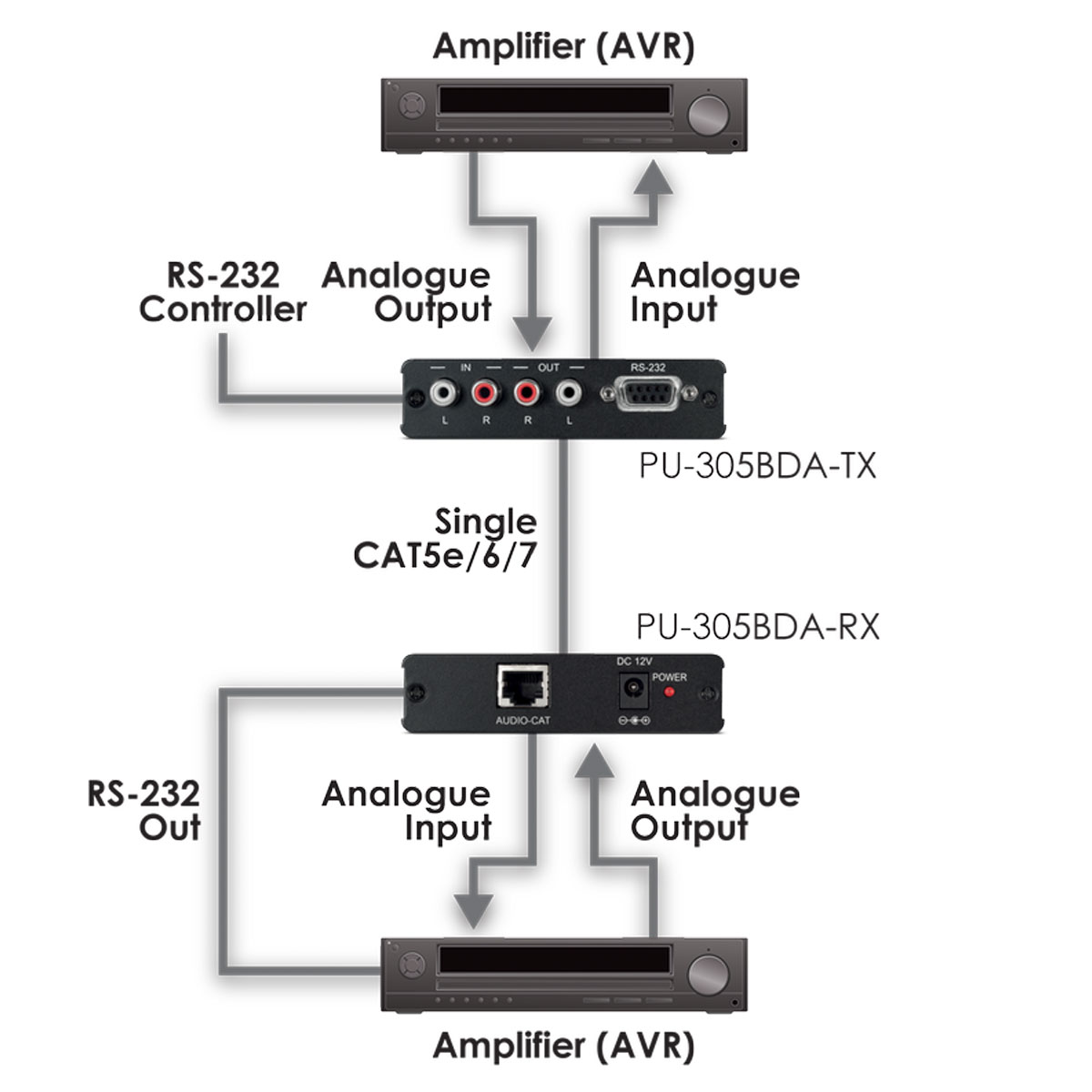

Schematics



Specifications:

  • Inputs: 2x RCA [1x Analogue Stereo (L/R)], 1x RJ45 [1x Bi-directional Audio plus Propriety Data]
  • Outputs: 2x RCA [1x Analogue Stereo (L/R)], 1x 9pin Dsub [1x RS-232 Data]
  • PSU: Bi-directional POE
  • Dimensions (WxDxH): 100mm x 110mm x 25mm
  • Net Weight: 120g
  • Gross Weight: 360g



poc



Box Contains:

  • CYP Bi-Directional Analogue Audio over Single CAT Receiver
  • User's Manual

Specifications:

  • Inputs: 2x RCA [1x Analogue Stereo (L/R)], 1x RJ45 [1x Bi-directional Audio plus Propriety Data]
  • Outputs: 2x RCA [1x Analogue Stereo (L/R)], 1x 9pin Dsub [1x RS-232 Data]
  • PSU: Bi-directional POE
  • Dimensions (WxDxH): 100mm x 110mm x 25mm
  • Net Weight: 120g
  • Gross Weight: 360g
