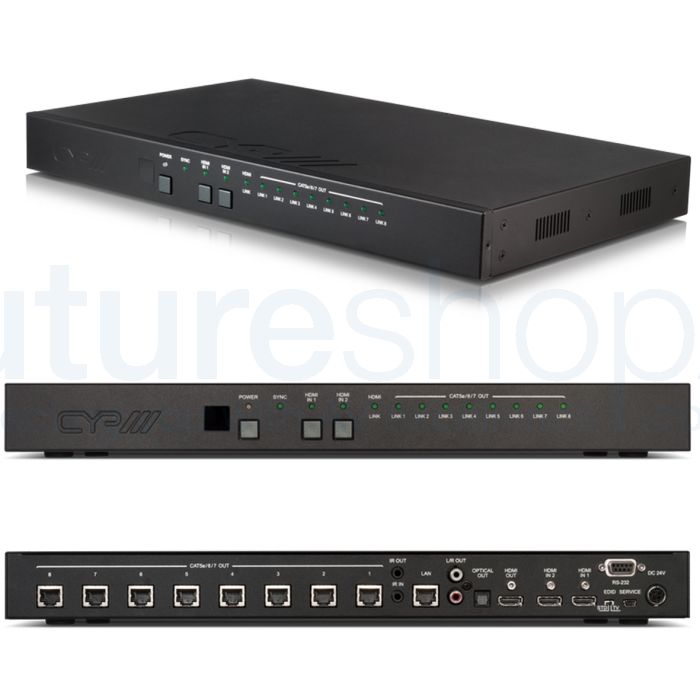

CYP PU-2H8HBTE-AD 2x8 HDBaseT Switch with Audio

£2,636.90 £2,197.42
SKU
CYP PU-2H8HBTE-AD
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PU-2H8HBTE HDBaseT switch has two HDMI inputs and eight HDBaseT outputs, plus a single HDMI output. Product Code - PU-2H8HBTE-AD.

CYP PU-2H8HBTE-AD 2x8 HDBaseT Switch with Audio



The PU-2H8HBTE HDBaseT switch has two HDMI inputs and eight HDBaseT outputs, plus a single HDMI output. This device allows the user to select either HDMI source for distribution to all screens simultaneously. Each HDBaseT output supports the transmission of video (resolutions up to 1080p Full HD, plus 4K Ultra High Definition, and 1920x1200@60Hz), multi-channel audio, single LAN serving, and control via 2-way IR, RS-232 or Web GUI/Telnet IP over a single CAT5e/6/7 cable (up to 100m).

The HDMI output supports the same video resolutions and high definition audio via certified HDMI cables up to 15m. For additional flexibility, the PU-2H4HBTE is provided with Audio De-Embedding functionality allowing easy audio integration into a wider AV system or direct connection to an AVR. Audio outputs are via a single Optical connection or an Analogue Stereo output (2x RCA).

The HDBaseT outputs are designed to be used with any compatible HDBaseT Receiver as follows: PU-507RX / PU-507RX-2H / PU-507RX-SCD / PU-507WPRX / PU-1109RX. These Receivers support Power over Ethernet (PoE) function so do not require a separate PSU for power. Use the LAN serving capabilities of this switch to add internet connectivity to every HDBaseT output zone. In addition, this switch also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Control 4.



Features:

  • Product Code - PU-2H8HBTE-AD
  • HDMI, HDCP and DVI complaint
  • Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA, 1920x1200@60Hz
  • High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
  • Uncompressed data transfer over single CAT cable for HDBaseT outputs (100m - CAT6/7; 80m - CAT5e)
  • Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit
  • Supports RS-232, 2-Way IR, Manual Selection Buttons, and Web GUI/Telnet IP for control
  • HDBaseT outputs support Power over Ethernet (PoE) with compatible receiver units
  • Supports LAN serving to all connected HDBaseT zones
  • Supports 3D signals and 4K Ultra High Definition
  • 2 Years Warranty



Specifications:

  • Inputs: 2x HDMI [2x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x RJ45 [1x LAN Serving], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x USB Mini B [1x Service Port Propriety Data]
  • Outputs: 8x RJ45 [8x HDBaseT HDMI & Propriety Data], 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 2x RCA [1x Analogue Stereo (L/R)], 1x Toslink [1x Optical 2 Channel LPCM]
  • Dimensions (WxDxH): 440mm x 280mm x 50mm
  • Gross Weight: 4460g



8bit 10bit 12bit HDBT IpControl LAN SERVING 3d POC HDMI



Box Contents:

  • CYP 2x8 HDBaseT Switch with Audio
  • UK Power Supply
  • User's Manual



Specifications:

  • Inputs: 2x HDMI [2x HDMI Uncompressed AV and Data], 1x 9pin Dsub [1x RS-232 Data], 1x RJ45 [1x LAN Serving], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x USB Mini B [1x Service Port Propriety Data]
  • Outputs: 8x RJ45 [8x HDBaseT HDMI & Propriety Data], 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter], 2x RCA [1x Analogue Stereo (L/R)], 1x Toslink [1x Optical 2 Channel LPCM]
  • Dimensions (WxDxH): 440mm x 280mm x 50mm
  • Gross Weight: 4460g
