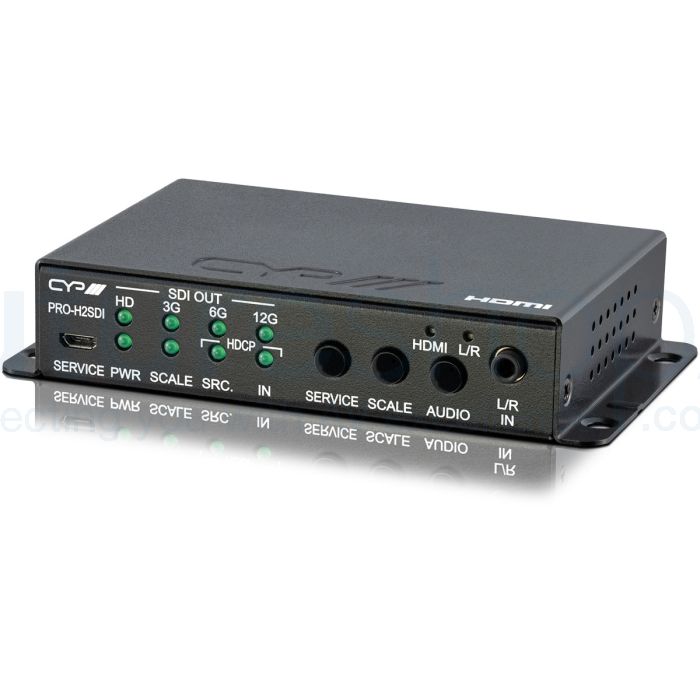

CYP PRO-H2SDI – Full 4K HDMI to 12G SDI converter

£839.10 £699.25
SKU
PRO-H2SDI
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP PRO-H2SDI converter efficiently converts HDMI signals to SDI, supporting up to 4K UHD+ digital video input at 18Gbps, and offers three mirrored outputs (2×12G-SDI, 1×HDMI) for simultaneous display on multiple screens. It features compatibility with various HDMI, DVI, and HDCP standards, supports long-distance signal transmission, and includes user-friendly controls and audio pass-through capabilities.

CYP PRO-H2SDI – Full 4K HDMI to 12G SDI converter



The CYP PRO-H2SDI converter is a must-have for any professional in the audio-visual industry. This powerful device allows you to easily convert HDMI signals to SDI, making it possible to display your high definition work on two SDI displays. With a high bit rate of 12 Gbit/s, you can rest assured that your signal will maintain its high resolution without any loss.

One of the standout features of this converter is its ability to support up to 4K UHD+ digital video input at a staggering 18Gbps. This means you can work with the latest technology and display your content at its highest quality. Additionally, the device is compliant with HDMI 2.0, DVI 1.0, and HDCP 1.x and 2.2 standards, ensuring compatibility with a wide range of equipment.

The PRO-H2SDI also offers versatility with its 3 mirrored outputs - 2x12G-SDI and 1xHDMI. This means you can display your work on multiple screens simultaneously, making it ideal for presentations, events, and large-scale productions. The SDI output supports various SMPTE standards, giving you even more flexibility in your workflow.

Furthermore, this converter boasts impressive signal extension distances, allowing you to transmit your signal up to 200 meters for 3G-SDI and 260 meters for HDSDI. This makes it a reliable and efficient tool for long-distance transmission. And for those who prefer local monitoring, the PRO-H2SDI can optionally downscale 4K sources to 1080p for lower cost monitoring options.

In addition to its technical capabilities, the PRO-H2SDI also offers user-friendly features such as front panel controls and pass-through of LPCM audio up to 8 channels from the HDMI input or 2 channels from the analogue audio input. And with a built-in default EDID and recordable EDID, this device guarantees image display compatibility with a variety of source equipment.



Features

  • HDMI 2.0 and DVI 1.0 compliant
  • HDCP 1.x and 2.2 compliant
  • 1 HDMI video input & 1 analogue stereo audio input
  • 3 mirrored outputs (2×12G-SDI, 1×HDMI)
  • Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input
  • SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10
  • SDI signal extension distance varies based on signal type: 80 meters (12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HDSDI)
  • 4K sources can be optionally downscaled to 1080p when output over the HDMI output to support lower cost local monitoring options
  • Supports pass-through of LPCM audio (up to 8 channels) from the HDMI input, or 2 channels from the analogue audio input
  • Controllable via front panel controls

PRO-H2SDISpecification

Inputs:

  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]

Outputs:

  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 2x BNC [2x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]
  • PSU : 5V/2.6A
  • Dimensions: 130mm [W] x 35mm [D] x 24mm [H]
  • Net Weight: 340g
  • Gross Weight: 740g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

Inputs:

  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]

Outputs:

  • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • 2x BNC [2x SDI HD-SDI / 3G-SDI / 6G_SDI / 12G-SDI]
  • PSU : 5V/2.6A
  • Dimensions: 130mm [W] x 35mm [D] x 24mm [H]
  • Net Weight: 340g
  • Gross Weight: 740g
