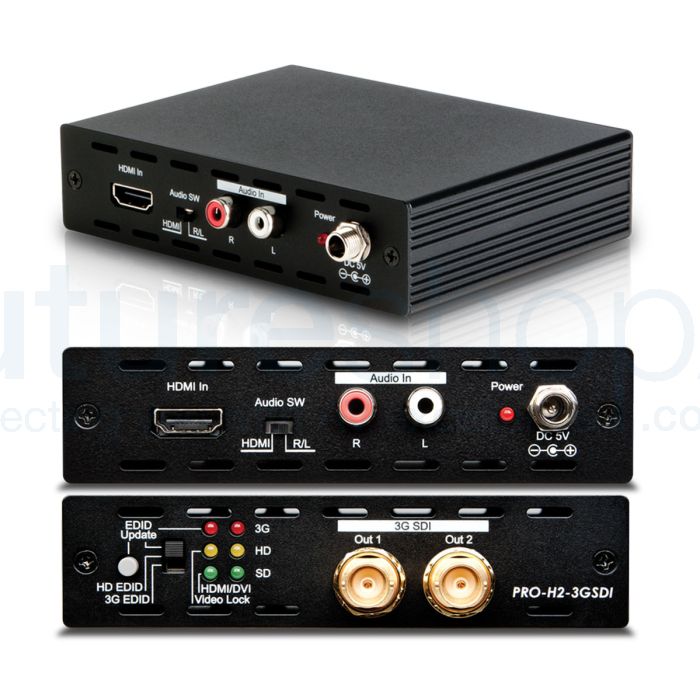

CYP PRO-H2-3GSDI HDMI to 3G-SDI Dual Output Converter

£283.20 £236.00
SKU
CYP PRO-H2-3GSDI
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PRO-H2-3GSDI Dual Output Converter accepts non-HDCP protected HDMI content and will convert to dual 3G-SDI outputs simultaneously. Product Code - PRO-H2-3GSDI

CYP PRO-H2-3GSDI HDMI to 3G-SDI Dual Output Converter



The new CYP Professional Distribution Solutions offer the ultimate in flexibility and robust signal distribution for the broadcast market. The Professional Range includes SDI distribution and HDMI conversion solutions that enable engineers to confidently manage complex broadcast signal environments.

The PRO-H2-3GSDI Dual Output Converter accepts non-HDCP protected HDMI content and will convert to dual 3G-SDI outputs simultaneously. This is perfect for extending HDMI signals over long distances (300m for SD signals) to two displays.

This device benefits from a 2-channel (L/R) audio input allowing DVI signals with 2-channel audio to be converted to SDI. In addition, the PRO-H2-3GSDI has a built-in EDID management system, with EDID recorder, which ensures the highest level of source and screen compatibility.



Features:

  • Product Code - PRO-H2-3GSDI
  • Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
  • This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video outputted
  • Simultaneous display HDMI source on two SDI displays
  • When a DVI signal goes through HDMI, the L/R audio can be sent with it to the 3G SDI output
  • Integrated audio embedded up to 8 channel PCM 48kHz for HDMI or 2CH for DVI audio
  • Choose between a selectable EDID and recordable EDID
  • Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
  • Connect with other units (SDI to HDMI) to extend your signal over long distances
  • Frequency Bandwidth 225MHz/link (HDMI 1.3)
  • Auto video mode detection (3G/SD/HD)
  • Supports signal transmission distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
  • Supplied with Locking PSU
  • 2 Years Warranty

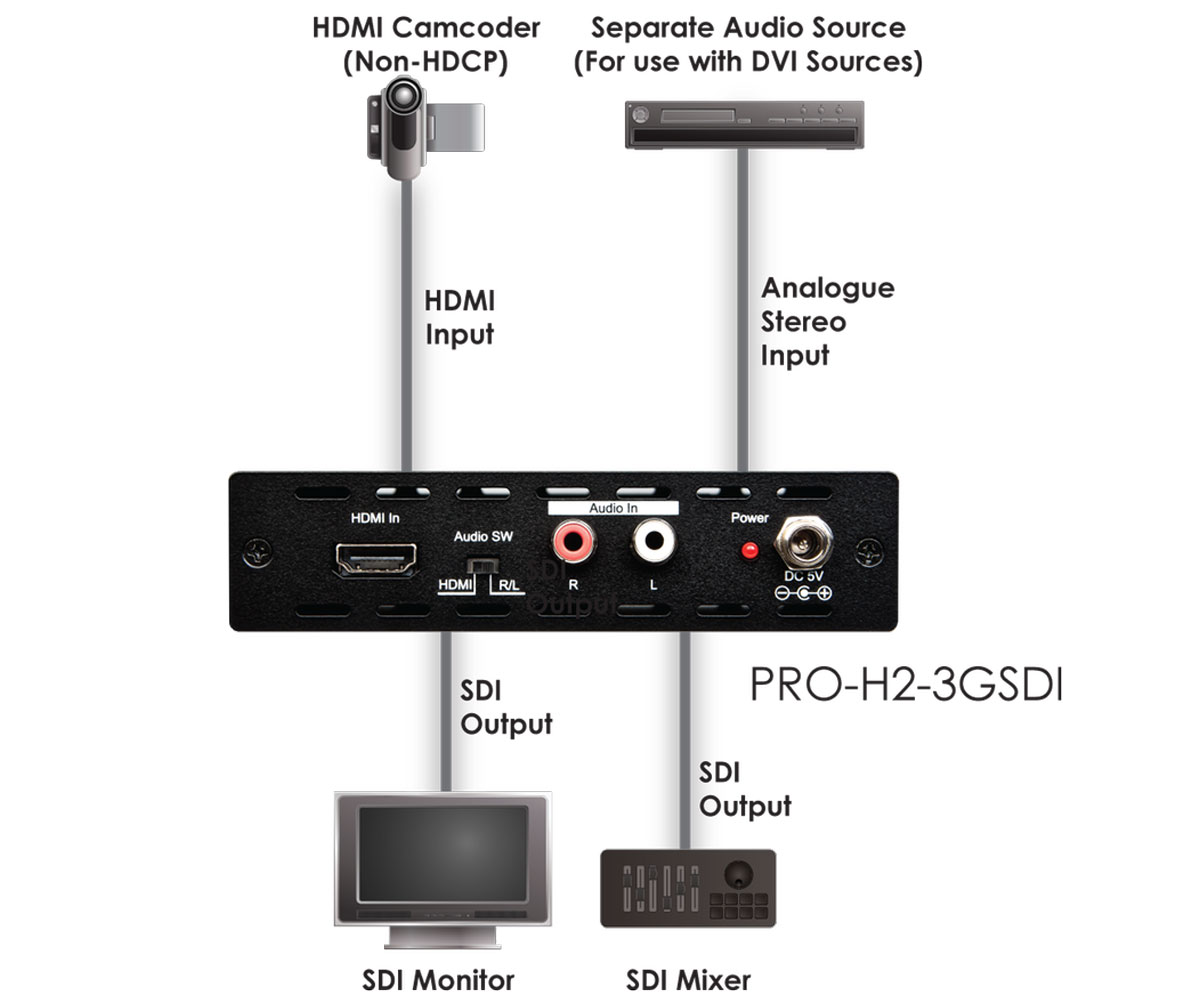

Schematics



Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 2x RCA [1x Analogue Stereo (L/R)]
  • Outputs: 2x BNC [2x SD-SDI / HD-SDI / 3G-SDI]
  • Power: 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified)
  • Dimensions: 125mm (W) x 115mm (D) x 30mm (H)
  • Gross Weight: 660g



Box Contains:

  • CYP HDMI to 3G-SDI Dual Output Converter
  • UK Power Supply
  • User's Manual

Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 2x RCA [1x Analogue Stereo (L/R)]
  • Outputs: 2x BNC [2x SD-SDI / HD-SDI / 3G-SDI]
  • Power: 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified)
  • Dimensions: 125mm (W) x 115mm (D) x 30mm (H)
  • Gross Weight: 660g
