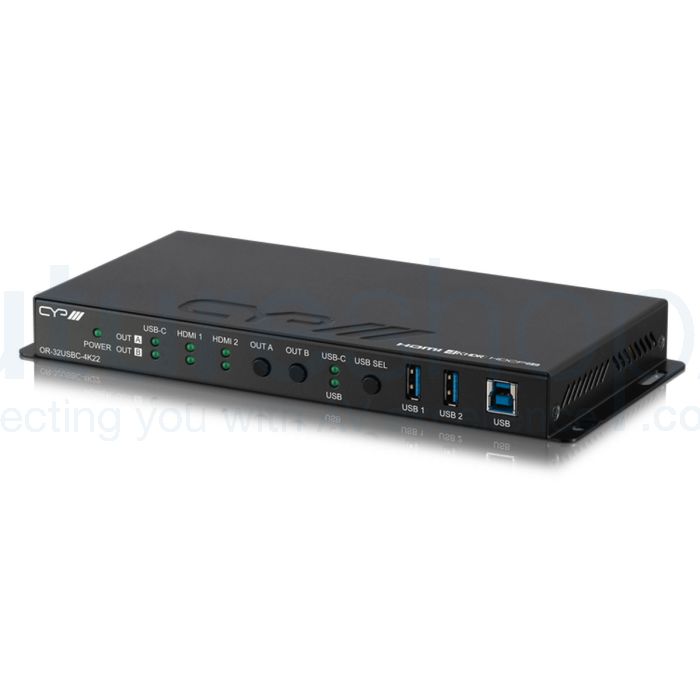

CYP OR-32USBC-4K22 3 x 2 USBC and HDMI matrix with USB Ethernet Hub

£679.72 £566.43
SKU
CYP OR-32USBC-4K22
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.

CYP OR-32USBC-4K22 3 x 2 USBC and HDMI matrix with USB Ethernet Hub



The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The two most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility. This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specs and supports AV, device charging as well as network connection.

This matrix also includes a USB 3.0 hub with two host ports (Type-B and Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion. This unit is controllable via front panel controls, WebGUI, Telnet and RS-232.


Features

  • 2 x HDMI and 1 USB-C 4K60Hz 4:4:4 inputs
  • 2 x Matrixed HDMI output with output A supporting 4K downscaling to 1080p
  • USB-C port supports USB 3.0 speed, device powering 20V/3A and one gigabit Ethernet at best
  • Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
  • Supports 4K HDR formats by HDR10, HLG and Dolby Vision
  • Support USB 3.0 with one USB type B and one USB type C interface for connection to a host PC, plus two USB type A ports for peripheral devices such as keyboard, mouse and storage extension
  • Supports auto-switch functionality with a “last memory” feature for both input ports and USB ports
  • Supports basic signal event automation (via RS-232, IP or CEC) ​


Specification

  • Inputs:
    • 1x USB-C [1x USB-C / Thunderbolt]
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 2x USB Type A [2x USB Propriety Data]
    • 1x Phoenix (4 pin) [1x RS-232 local control]
    • 1x RJ45 [1x LAN Serving]
  • Outputs:
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 1x USB 3 Type B [1x Power & Data]
    • 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
    • 1x Phoenix (4 pin) [1x RS-232 local output]
  • PSU: 24V/5A
  • Dimensions: 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight: 750g
    Gross Weight: 1670g
