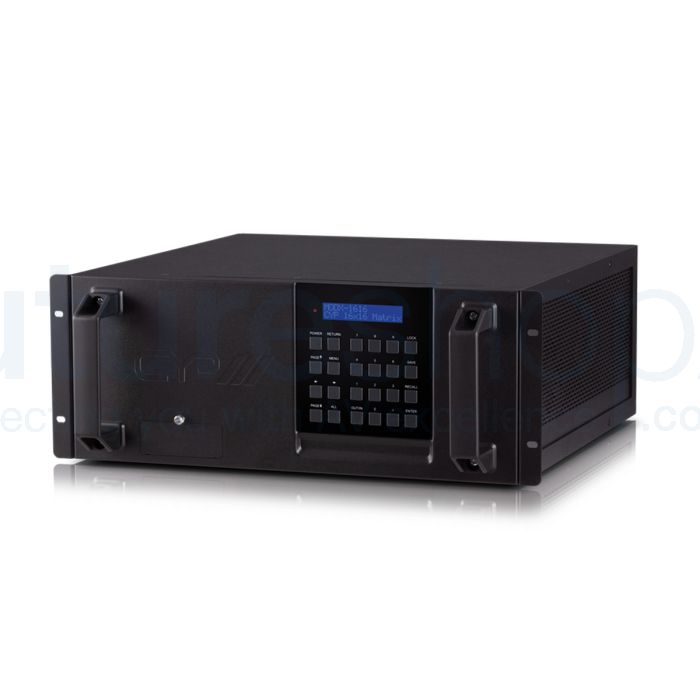

CYP MODX-1616 16 x 16 Modular 4KUHD HDR (6G) Matrix Chassis
£6,504.52 £5,420.43
SKU
CYP MODX-1616
Free UK Delivery
5 Years
New
24 hours
The MODX-1616 by CYP is their flagship modular matrix, supporting up to 4 input and 4 output cards, and comes with a system control card installed. This matrix can support either HDMI or HDBaseT input/output cards.
Related Products
CYP MODX-1616 16 x 16 Modular 4KUHD HDR (6G) Matrix Chassis
The MODX-1616 by CYP is their flagship modular matrix, supporting up to 4 input and 4 output cards, and comes with a system control card installed. This matrix can support either HDMI or HDBaseT input/output cards.
What CYP say
Our Flagship MODX-1616 offers the latest in Modular Matrix technology from CYP, now capable of delivering 4KUHD (4:4:4 @ 60hz/HDR10 Dolby Vision) signals from Input to Output. Due to the flexibility of the MODX's I/O structure, up to 4 input/Output cards can be loaded into the chassis providing total installation flexibility.
Up to 16 inputs (in multiples of 4) can be independently routed to any of the 16 output ports. Each HDMI card is capable of delivering up to four independent 18Gbps (6G) video signals simultaneously to any of the chosen HDBaseT or HDMI output ports, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR are fully supported. All ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats. I/O cards using the HDMI interface (HDMI 2.0, HDCP 2.2) and HDBaseT 2.0 are available to increase installation flexibility.
Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be extended to a PUV-2100RX-AVLC receiver. The result is a perfect 4K 6G visually lossless image delivered to the display screen.
The MODX-1616 also includes an analogue audio matrix enabling audio to be independently routed from any of the input cards to any audio output cards within the chassis. The audio matrix can be controlled and configured with the MODX WebGUI. The chassis is powered by a pair of high-quality, 'hot-swappable', load-sharing power supplies with an integrated failure alarm system ensuring that mission-critical installations can stay online 24/7.
Features
- Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signals
- DVI 1.0 compliant with the use of an HDMI-DVI adapter
- HDCP 1.x and 2.2 compliant
- 8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 16×16
- 1 CPU and control card slot
- Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit colour
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamOutput cards have an integrated scaling function which supports upscale to 4K@60Hz and downscale to 1080p@60Hz if required by the connected display
- Advanced EDID Management for rapid integration of sources and displays
- Field updatable firmware
- 3U rack mounted design
- Spare power supply for redundancy
- Control via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote
- 4-port HDMI input and 4-port HDMI output cards available
- 4-port HDBaseT (with AVLC) input and output cards available
- 1 system control card slot (with support for 1 high-bandwidth input port and 1 high-bandwidth output port)
- System Control Card’s HDMI ports support UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
- System Control Card’s HDMI ports support 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color
INX-HDMI
Featuring 4 x HDMI input ports capable of delivering 4KUHD HDR signals to any one of the available HDMI or HDBaseT output ports without compromise. 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR are fully supported. All ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats.
In addition to 4K UHD video transmission, the INX-HDMI features 4 x 3.5mm Stereo Audio Inputs for the transmission of audio independently to any of the desired output cards. The INX-HDMI interface also supports HDMI 2.0, HDCP 2.2 and 4 x IR outputs.
INX-2100-AVLC HDBaseT
Featuring 4 x HDBaseT™ inputs capable of receiving video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN from a distance of 100m. HDBaseT™ 2.0 technology provides advanced signal management ensuring reliable results in the most demanding of installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable.
Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be received using AVLC (Adaptive Visually Lossless Compression) Technology. The receiver card enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be received from a OUTX-2100-AVLC. The result is a perfect 6G 4K visually lossless image received from the source.
In addition to 4 x 4K UHD HDBaseT 2.0 video inputs, the INX-2100-AVLC features 4 x Digital Optical Toslink Audio Inputs for the transmission of audio independently delivered by the MODX-1616's Input cards. The INX-2100-AVLC interface also features 4 x IR Inputs for added system control.
OUTX-HDMI
Featuring 4 x HDMI output ports capable of delivering 4KUHD HDR signals. 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR are fully supported (HDR10/Dolby Vision). All ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats.
In addition to 4K UHD video transmission, the OUTX-HDMI features 4 x 3.5mm Stereo Audio Outputs for the transmission of audio independently delivered by the MODX-1616's Input cards. The OUTX-HDMI interface also supports HDMI 2.0, HDCP 2.2 and 4 x IR outputs.
OUTX-2100-AVLC HDBaseT
Featuring 4 x HDBaseT™ outputs capable of delivering video resolutions up to 4K UHD including 10/12-bit HDR & Dolby Vision, to be received along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN from a distance of 100m. HDBaseT™ 2.0 technology provides advanced signal management ensuring reliable results in the most demanding of installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable.
Despite the 10.2Gbps limitation of HDBaseT™ technology, this groundbreaking product enables data rates of up to 18Gbps to be transmitted using AVLC (Adaptive Visually Lossless Compression) Technology. The transmitter card enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (Including Dolby Vision) to be transmitted to a PUV-2100RX-AVLC. The result is a perfect 6G 4K visually lossless image delivered to the display.
In addition to 4K UHD video transmission, the OUTX-2100-AVLC features 4 x 3.5mm Stereo audio outputs for the transmission of audio independently delivered by the MODX-1616's Input cards. The OUTX-2100-AVLC interface also features 4 x IR Inputs for added system control.
Specification
- Inputs-
- 16x Modular I/O board [4x I/O cards]
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 2x USB Type A [2x Service Ports Propriety Data]
- 2x RJ45 [2x IP]
- Outputs-
- 16x Modular I/O board [4x I/O cards]
- 1x HDMI [1x HDMI Uncompressed AV and Data]
- 11x 3.5mm Stereo mini-jack [11x Infra Red Emitter]
- POE PSU- PoH
- PSU- IEC
- Dimensions- 482mm [W] x 484mm [D] x 177mm [H]
- Net Weight- 20000g
- Gross Weight- 23000g
About CYP
CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
Features
- Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signals
- DVI 1.0 compliant with the use of an HDMI-DVI adapter
- HDCP 1.x and 2.2 compliant
- 8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 16×16
- 1 CPU and control card slot
- Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit colour
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamOutput cards have an integrated scaling function which supports upscale to 4K@60Hz and downscale to 1080p@60Hz if required by the connected display
- Advanced EDID Management for rapid integration of sources and displays
- Field updatable firmware
- 3U rack mounted design
- Spare power supply for redundancy
- Control via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote
- 4-port HDMI input and 4-port HDMI output cards available
- 4-port HDBaseT (with AVLC) input and output cards available
- 1 system control card slot (with support for 1 high-bandwidth input port and 1 high-bandwidth output port)
- System Control Card’s HDMI ports support UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
- System Control Card’s HDMI ports support 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color
UK Delivery
1. We use Royal Mail 1st Class Services as a Standard Postage Option
