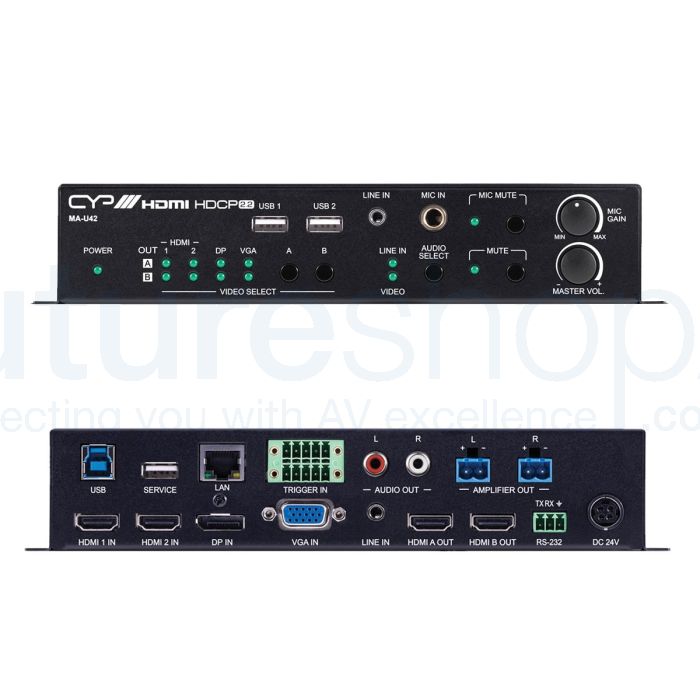

CYP MA-U42 – 4 x 2 HDMI matrix with Amplifier & USB Hub

£568.10 £473.42
SKU
CYP MA-U42
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The MA-U42 is a versatile 4×2 matrix switch with an amplifier, designed for environments requiring flexibility in inputs, outputs, and control. It incorporates HDMI, DisplayPort, and VGA with stereo audio inputs, offering broad source compatibility. HDCP 2.2 compliant, it supports resolutions up to 4K@60Hz (4:4:4, 8-bit) for HDMI and DisplayPort.



CYP MA-U42 – 4 x 2 HDMI matrix with Amplifier & USB Hub



The MA-U42 is a versatile 4×2 matrix switch with an amplifier, designed for environments requiring flexibility in inputs, outputs, and control. It incorporates HDMI, DisplayPort, and VGA with stereo audio inputs, offering broad source compatibility. HDCP 2.2 compliant, it supports resolutions up to 4K@60Hz (4:4:4, 8-bit) for HDMI and DisplayPort.

Featuring a microphone input with optional 48V phantom power and automatic ducking, it connects to a DSP mixer for impactful presentations or voiceovers. Pass-through of digital audio formats, including LPCM (up to 8 channels) and bitstream, is supported. The integrated stereo amplifier delivers 40 watts of power (20W per channel) for local speakers, enhancing audio flexibility. A USB 3.0 hub with one host port and three device ports facilitates a flexible KVM setup.

The matrix is suitable for meeting rooms, classrooms, and auditoriums, providing comprehensive video and audio integration with USB expansion. Control options include front panel controls, Web GUI, Telnet, Triggers, and RS-232 for versatile management.



Features

  • HDMI 2.0 and DVI 1.0 compliant
  • HDCP 1.x and 2.2 compliant
  • 4 video inputs (2×HDMI, 1×DisplayPort, 1×VGA w/ analogue audio)
  • 2 matrixed HDMI outputs
  • HDMI and DisplayPort inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • VGA input supports resolutions up to 1080p60Hz
  • HDMI outputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI/ DisplayPort only)
  • Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
  • Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input
  • Microphone input supports 48V phantom power and feeds into a DSP mixer allowing adjustable mix levels, automatic ducking, audio output mixing, volume, and mute controls
  • High performance, 2 channel, class D amplifier with 20 watts of power per channel and independent volume control
  • USB 3.0 hub with one host port (Type-B) and three device ports (Type-A)
  • Trigger Control Keypad support for easy, single-button, function activation (Optional CR-TG1)
  • Comprehensive EDID and HDCP management
  • Controllable via front panel controls, RS-232, Telnet, Web GUI, and triggers

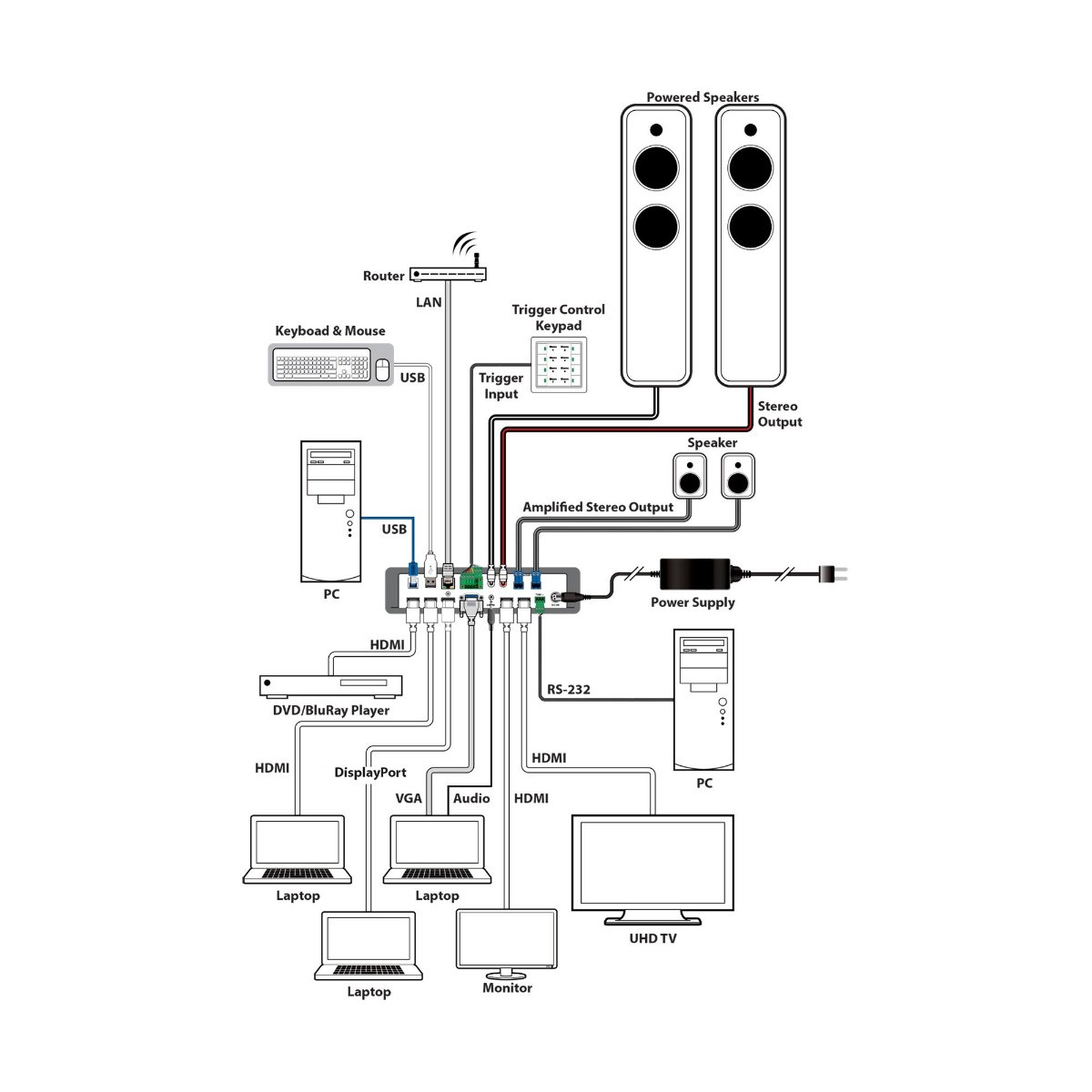

CYP MA-U42 Schematic

Specification

  • Inputs:
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 1x Display Port [1x Uncompressed AV]
    • 1x 15pin Dsub [1x VGA RGBHV]
    • 2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
    • 1x 6.35mm Stereo Jack [1x Microphone]
    • 1x USB Type B [1x USB Propriety Data]
    • 1x USB Type A [1x Service Port Propriety Data]
    • 1x RJ45 [1x IP Control]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x Phoenix (3 pin) [1x RS-232]
  • Outputs:
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 2x RCA [1x Analogue Stereo (L/R)]
    • 2x Phoenix (2 pin) [1x Speaker Level Stereo Output]
    • 2x USB Type A [2x USB Propriety Data]
  • PSU: 24V/3.75A
  • Dimensions: 231mm [W] x 158mm [D] x 44mm [H]
  • Net Weight: 1200g
  • Gross Weight: 2300g


About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

  • Inputs:
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 1x Display Port [1x Uncompressed AV]
    • 1x 15pin Dsub [1x VGA RGBHV]
    • 2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
    • 1x 6.35mm Stereo Jack [1x Microphone]
    • 1x USB Type B [1x USB Propriety Data]
    • 1x USB Type A [1x Service Port Propriety Data]
    • 1x RJ45 [1x IP Control]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x Phoenix (3 pin) [1x RS-232]
  • Outputs:
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 2x RCA [1x Analogue Stereo (L/R)]
    • 2x Phoenix (2 pin) [1x Speaker Level Stereo Output]
    • 2x USB Type A [2x USB Propriety Data]
  • PSU: 24V/3.75A
  • Dimensions: 231mm [W] x 158mm [D] x 44mm [H]
  • Net Weight: 1200g
  • Gross Weight: 2300g
