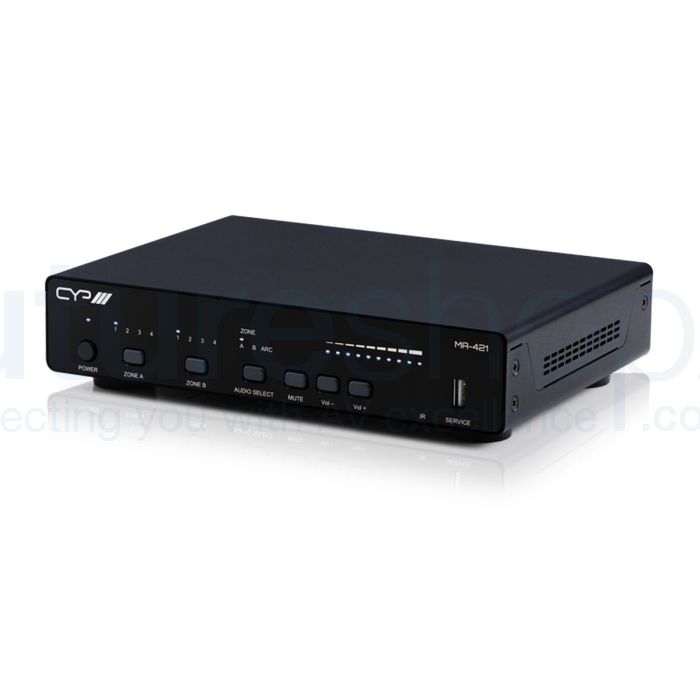

CYP MA-421 4x2+1 HDMI Input & HDBaseT/HDMI Output Matrix and Amplifier

£1,408.60 £1,173.83
SKU
CYP MA-421
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The MA-421 by CYP has 4 HDMI inputs and can output up to 4K/60Hz. This kit includes a compatible PUV-1710LRX-AVLC Receiver, and is the first CYP Distribution Matrix to be controllable using the CYP Control App.



CYP MA-421 4x2+1 HDMI Input & HDBaseT/HDMI Output Matrix and Amplifier with AVLC, 4KHDR



The MA-421 by CYP has 4 HDMI inputs and can output up to 4K/60Hz. This kit includes a compatible PUV-1710LRX-AVLC Receiver, and is the first CYP Distribution Matrix to be controllable using the CYP Control App.



What CYP say



Introducing the Brand New MA-421, the perfect AV distribution solution for apartments and small residential installations or even family homes. Offering four HDMI inputs, one HDBaseT output, one HDMI with mirrored HDBaseT output, 20w power amplifier and app control, the MA-421 is our latest AV Distribution Matrix and the first to feature our new CYP Control app.

Included in the system is a compatible PUV-1710LRX-AVLC Receiver, giving you instant flexibility to add a second zone to your system.

Small enough to be placed in an AV cabinet, the MA-421 has been designed for simplicity. Our AVLC (Adaptive Visually Lossless Compression) technology ensures full 4K60 and 4K HDR/Dolby® Vision compatibility out to both HDBaseT outputs, whilst the on-board amplifier adds sound reinforcement by using the ARC audio return pathway to pull the audio signal back from the connected TV to the built-in amplifier and line output, the perfect partner with any soundbar or bookshelf speakers you way wish to use!

Any of the three outputs can be scaled to accommodate a 1080p display that might be included in your home set up! IR control with learning function (RS-232 and WebGUI is also available) enables it to be used with a programmable remote control. To further enhance the user-experience, our new CYP Control app can be programmed with all sources and display device controls, offering a single universal remote control for the whole system.



Features



  • HDBaseT feature support: HD Video and Audio, 48V PoH and Control (bi-directional IR pass-through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
  • AVLC (Adaptive Visually Lossless Compression)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
  • Supports CEC Bypass
  • 4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings upto 35 Metres
  • IOS & Android
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports 3D signals
  • Individual output scaling on HDMI & HDBaseT Outputs down to 1080p
  • CYP Control APP
  • IR Learning and remote control programming
  • 2 x 20w D Class Power Amplifier
  • 3.5mm Line Level Output
  • New CONTROL 4 Simple Device Discovery Protocol (SDDP) support (from v2.16 onward)



Specification



  • Inputs-
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 1x 9pin Dsub [1x RS-232 Data]
    • 1x RJ45 [1x IP Control]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 2x RJ45 [2x HDBaseT HDMI & Propriety Data]
    • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
    • 2x Phoenix (2 pin) [1x Speaker Level Stereo Output]
    • 1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
  • PSU- 24V/2.7A
  • Dimensions- 219mm [W] x 156mm [D] x 43mm [H]
  • Net Weight- 1300g
  • Gross Weight- 2200g



About CYP

CYP's vision is simple, to deliver market leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry leading after sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs-
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 1x 9pin Dsub [1x RS-232 Data]
    • 1x RJ45 [1x IP Control]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 2x RJ45 [2x HDBaseT HDMI & Propriety Data]
    • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
    • 2x Phoenix (2 pin) [1x Speaker Level Stereo Output]
    • 1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
  • PSU- 24V/2.7A
  • Dimensions- 219mm [W] x 156mm [D] x 43mm [H]
  • Net Weight- 1300g
  • Gross Weight- 2200g
