CYP MA-401 – 4×1 HDMI Switcher and Amplifier with AV Control System

£718.78 £598.98
SKU
CYP MA-401
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP MA-401 is a versatile 4×1 HDMI switcher featuring a built-in 20W Stereo Amplifier, designed for high-performance audio and video support with HDR and ARC capabilities, making it well-suited for both residential and corporate installations. It allows routing of up to four high-bandwidth (18Gbps) HDMI sources to the local HDMI output with automatic input switching support.



CYP MA-401 – 4×1 HDMI Switcher and Amplifier with AV Control System



The CYP MA-401 is a versatile 4×1 HDMI switcher featuring a built-in 20W Stereo Amplifier, designed for high-performance audio and video support with HDR and ARC capabilities, making it well-suited for both residential and corporate installations. It allows routing of up to four high-bandwidth (18Gbps) HDMI sources to the local HDMI output with automatic input switching support. The unit ensures pass-through of various digital audio formats, including LPCM 7.1, Bitstream, and advanced HD Bitstream, with audio sampling rates up to 192kHz.

Additionally, it incorporates specialized IR learning and smart-routing functionality, enabling the learning and recall of IR codes from connected sources' remotes using the dedicated remote control or a mobile app for iOS/Android devices. Intelligent IR routing ensures precise control, and the mobile app allows sending IR commands to any connected source and the TV. Control options include front panel buttons, RS-232, IR remote, Telnet, and Web GUI for diverse and convenient operation.



Features

  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input / output
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports CEC Bypass
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • CYP Control APP
  • IR Learning and remote control programming
  • 20w D Class Stereo Power Amplifier
  • 3.5mm Analogue audio Line Level Output

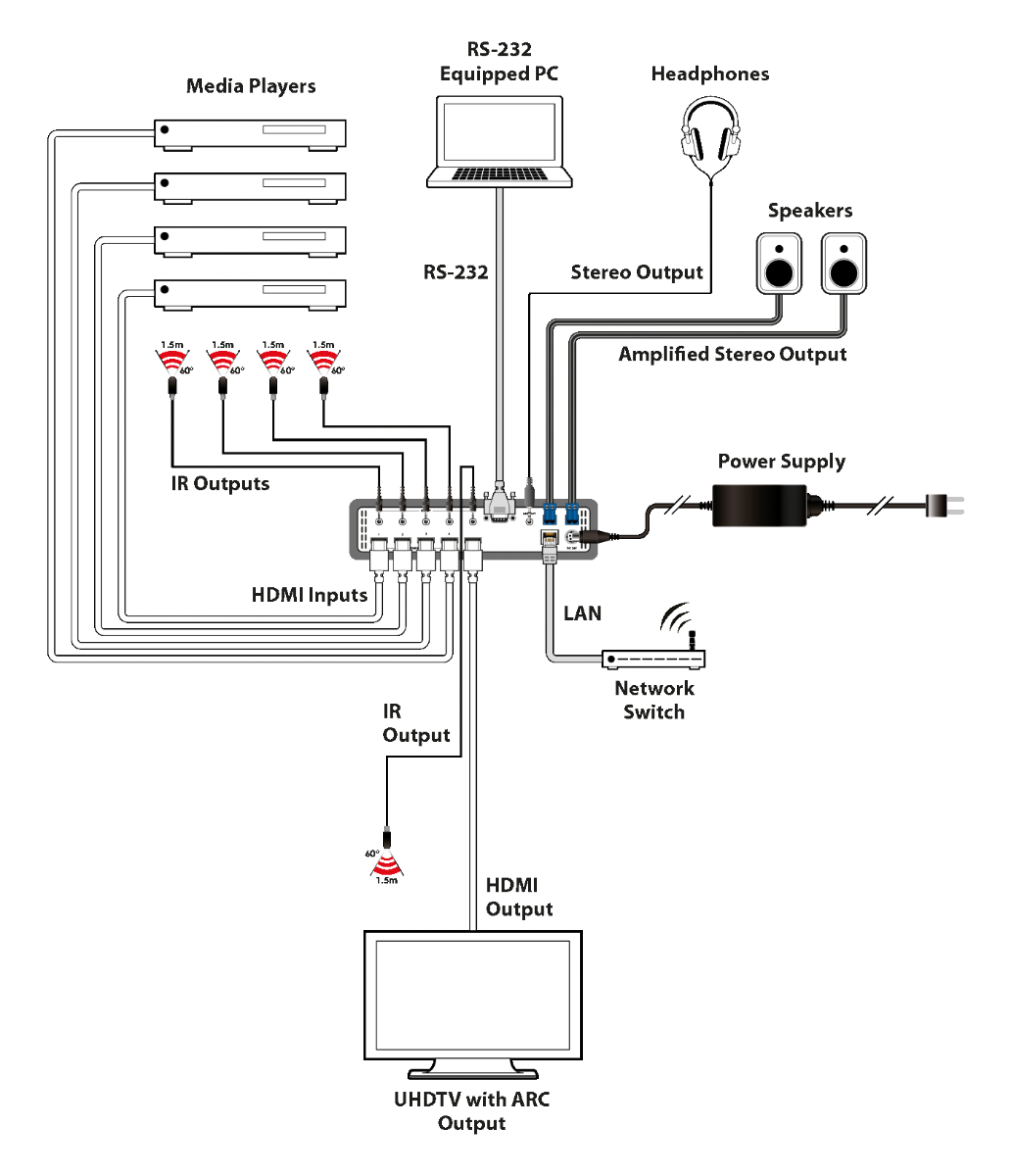

CYP MA 401 Schematic

Specification

  • Inputs:
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 1x RJ45 [1x LAN IR Propriety Data]
    • 1x 9pin Dsub [1x RS-232 Data]
  • Outputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
    • 1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
    • 4x Phoenix (2 pin) [2x Phoenix Speaker Level Stereo Output]
  • PSU: 24V/2.7A
  • Dimensions: 219mm [W] x 156mm [D] x 43mm [H]
  • Net Weight: 1172g
  • Gross Weight: 2200g


About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

  • Inputs:
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 1x RJ45 [1x LAN IR Propriety Data]
    • 1x 9pin Dsub [1x RS-232 Data]
  • Outputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
    • 1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
    • 4x Phoenix (2 pin) [2x Phoenix Speaker Level Stereo Output]
  • PSU: 24V/2.7A
  • Dimensions: 219mm [W] x 156mm [D] x 43mm [H]
  • Net Weight: 1172g
  • Gross Weight: 2200g
