CYP EL-31C-4K22 4K Multi-Format Switcher

£193.60 £161.33
SKU
CYP EL-31C-4K22
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

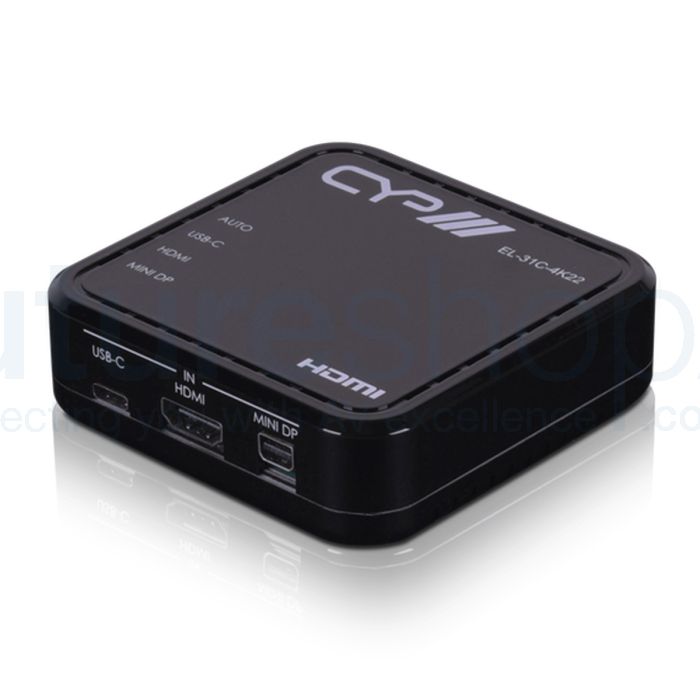

The EL-31C-4K22 is a 3x1 Multi-Format to HDMI Switcher with 4K@60Hz (4:4:4) switching featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. This unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design.

CYP EL-31C-4K22 4K Multi-Format USB-C, MiniDP, HDMI to HDMI Switcher



The EL-31C-4K22 is a 3x1 Multi-Format to HDMI Switcher with 4K@60Hz (4:4:4) switching featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. This unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design.


Features

  • HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
  • HDCP 1.x and 2.2 compliant
  • HDMI, 1 Mini DisplayPort, and 1 USB Type-C input
  • Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
  • Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
  • Supports auto-switch functionality with a “last memory” feature
  • EDID bypass with an optimized algorithm to ensure optimal resolution and feature support
  • Easy to read LEDs to indicate input selection and operational mode
  • Powered via the Mini-USB port (1.2 Amps required)
  • Small and portable switch box design


Specification

  • Inputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB-C [1x USB-C USB-C / Thunderbolt]
    • 1x Display Port [1x Mini DP Uncompressed AV]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU: 5V/1.2A USB
  • Dimensions: 85mm [W] x 85mm [D] x 25mm [H]
  • Net Weight: 80g
  • Gross Weight: 350g


About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.


From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs:
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x USB-C [1x USB-C USB-C / Thunderbolt]
    • 1x Display Port [1x Mini DP Uncompressed AV]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU: 5V/1.2A USB
  • Dimensions: 85mm [W] x 85mm [D] x 25mm [H]
  • Net Weight: 80g
  • Gross Weight: 350g
