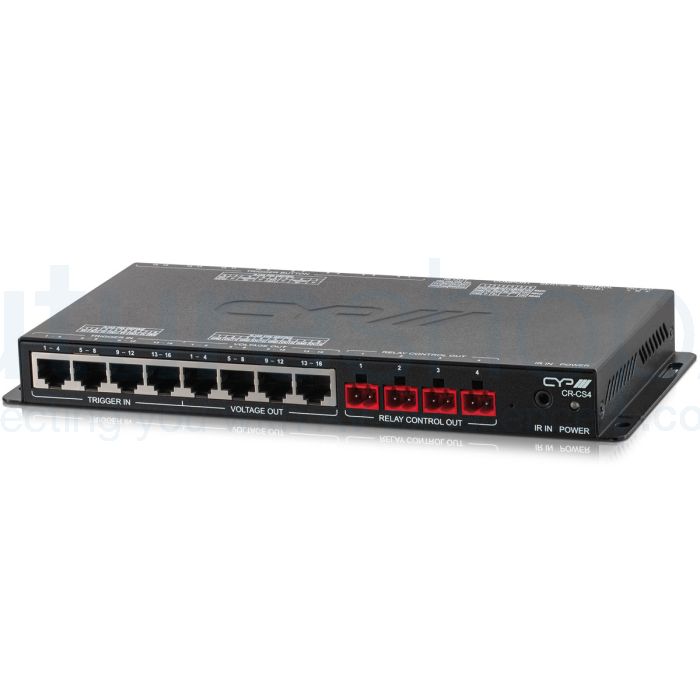

CYP CR-CS4 – Hardware System Control I/O Centre

£487.85 £406.54
SKU
CR-CS4
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CYP CR-CS4 Hardware System Control I/O Centre is a versatile control hub ideal for integrators, offering 16 trigger inputs, 32 user-defined macros, and compatibility with Ethernet, IR, serial ports, relays, and direct voltage. It features a battery-backed clock for scheduling, PoE power option, and can be installed in a rack chassis or mounted on any flat surface, with control accessible via WebGUI, Telnet, and external triggers.

CYP CR-CS4 – Hardware System Control I/O Centre



The CR-CS4 Hardware System Control I/O Centre is an essential tool for any integrator looking to streamline their control capabilities. With its ability to control a wide variety of devices and its convenient trigger activation options, this product is a must-have for any professional setup.

One of the standout features of the CR-CS4 is its 16 external trigger connections, which can be activated in two ways: the traditional twin-wire short method or using specially designed Trigger Buttons. The inclusion of one Trigger Button with the product allows for immediate control activation, and additional buttons can be purchased as needed. This makes it easy to customise and tailor the control system to your specific needs.

In addition to its impressive trigger capabilities, the CR-CS4 also offers 32 user-defined macros that can be activated via WebGUI, Telnet, or on a defined schedule. This allows for effortless control of remote devices through Ethernet, IR, serial ports, relays, or direct voltage. With its integrated IR code learning function, this product is compatible with nearly any standard IR remote, making it incredibly versatile and user-friendly.

The CR-CS4 also boasts a battery-backed clock that allows for detailed event scheduling, whether it be on a daily/weekly basis or for single events. This adds a level of flexibility and convenience for users who require precise control over their devices. Additionally, the unit can be powered via PoE, eliminating the need for an external power adapter and providing even more installation flexibility.

Not only is the CR-CS4 functional, but it is also well-designed. It can be installed within the RAX-600 Rack Chassis or mounted directly onto any flat surface, making it a seamless addition to any space. And with its ability to be controlled via WebGUI, Telnet, and external triggers, it offers a user-friendly and intuitive experience for any operator.



Features

  • 16 trigger inputs linked directly to 16 user macros allowing for instant control activation
  • 16 additional macros (32 total) that can be activated via Ethernet, or on a defined schedule
  • 4 power relays to control devices such as projector screens, lighting, etc
  • 4 IR outputs to control devices such as TVs, media players, etc
  • Integrated IR input for IR code learning functionality
  • 2 serial ports for controlling RS-232/422/485 devices
  • 16 variable voltage outputs for controlling low power devices (20mA total) or activating external triggers : Note: Trigger Buttons and Voltage Out ports cannot be used at the same time
  • Battery backed up clock for scheduling events
  • Can optionally be powered via PoE (802.3at Type 2)
  • CR-CS4 is designed to be installed within our RAX-600 6U Rack Chassis or it can be mounted directly onto any flat surface
  • Controllable via WebGUI, Telnet, and external triggers

CR-CS4Specification

Inputs:

  • 1x 3.5mm Stereo mini-jack [1x IR Learning port Infra Red Receiver]
  • 1x RJ45 [1x Control & PoE port IP Control]
  • 1x USB Type A [1x Service Port Propriety Data]
  • 4x RJ45 [4x Trigger in (4)]
  • 8x RJ45 [8x Trigger Button Port (2)]

Outputs:

  • 4x Phoenix (2 pin) [4x Contact Closure Relay Outputs]
  • 4x RJ45 [4x Voltage Outputs (4)]
  • 4x Phoenix (6 pin) [2x Com Ports]
  • 4x Phoenix (2 pin) [4x IR outs]
  • POE PSU: PoE
  • PSU : 24V/1A
  • Dimensions: 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight: 700g
  • Gross Weight: 1400g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.



Specification

Inputs:

  • 1x 3.5mm Stereo mini-jack [1x IR Learning port Infra Red Receiver]
  • 1x RJ45 [1x Control & PoE port IP Control]
  • 1x USB Type A [1x Service Port Propriety Data]
  • 4x RJ45 [4x Trigger in (4)]
  • 8x RJ45 [8x Trigger Button Port (2)]

Outputs:

  • 4x Phoenix (2 pin) [4x Contact Closure Relay Outputs]
  • 4x RJ45 [4x Voltage Outputs (4)]
  • 4x Phoenix (6 pin) [2x Com Ports]
  • 4x Phoenix (2 pin) [4x IR outs]
  • POE PSU: PoE
  • PSU : 24V/1A
  • Dimensions: 231mm [W] x 108mm [D] x 25mm [H]
  • Net Weight: 700g
  • Gross Weight: 1400g
