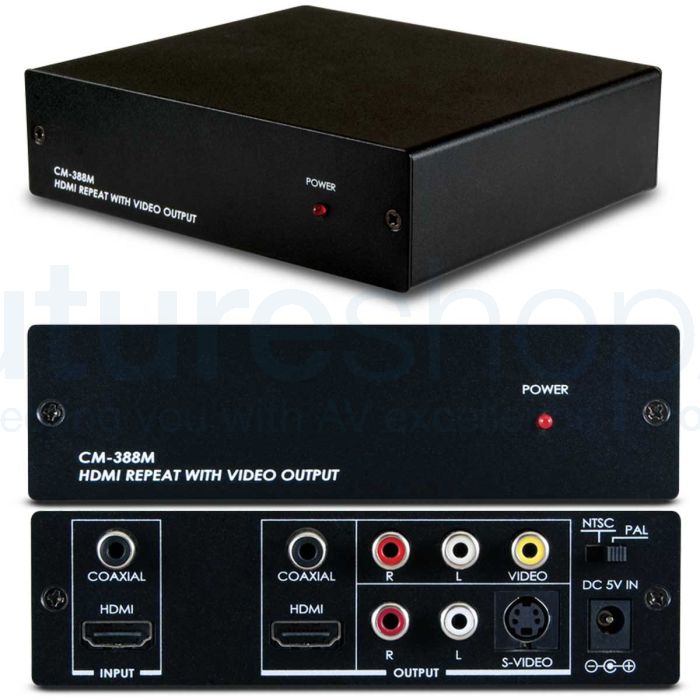

CYP CM-388M HDMI Down-Scaler with Bypass Output

£373.80 £311.50
SKU
CYP CM-388M
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The CM-388 converts digital signals from HDMI (or DVI + Coaxial) to S-Video or Composite, plus analogue stereo audio. Product Code - CM-388M.

CYP CM-388M HDMI Down-Scaler with Bypass Output



An extensive range of format converters providing multiple solutions in any home and professional installation scenario. This range includes converters of PC, YUV and SCART sources to HDMI.

The CM-388M is designed to convert digital signals from a HDMI (or DVI + Coaxial) source to Composite Video or S-Video for NTSC or PAL systems with L/R stereo audio.

Besides Composite Video and S-Video outputs, this device also provides one HDMI bypass output to deliver the original signal, and a simultaneous Coaxial output to send S/PDIF digital audio to an audio amplifier.



Features:

  • Product Code - CM-388M
  • HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant
  • Convert HDMI source signals to Composite Video or S-Video, with selectable NTSC or PAL compatibility
  • Converts digital audio from a HDMI source to analog stereo audio
  • HDMI bypass with simultaneous de-embedded S/PDIF Digital Audio via a Coaxial output
  • Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (Reduced Blanking)
  • Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz
  • When the signal from HDMI or DVI source is protected by HDCP (High bandwidth Digital Content Protection), the HDMI or DVI display needs to supports HDCP to be able to show picture
  • When receving content that is HDCP encrypted, the CV & SV output will not display images
  • 2 Years Warranty

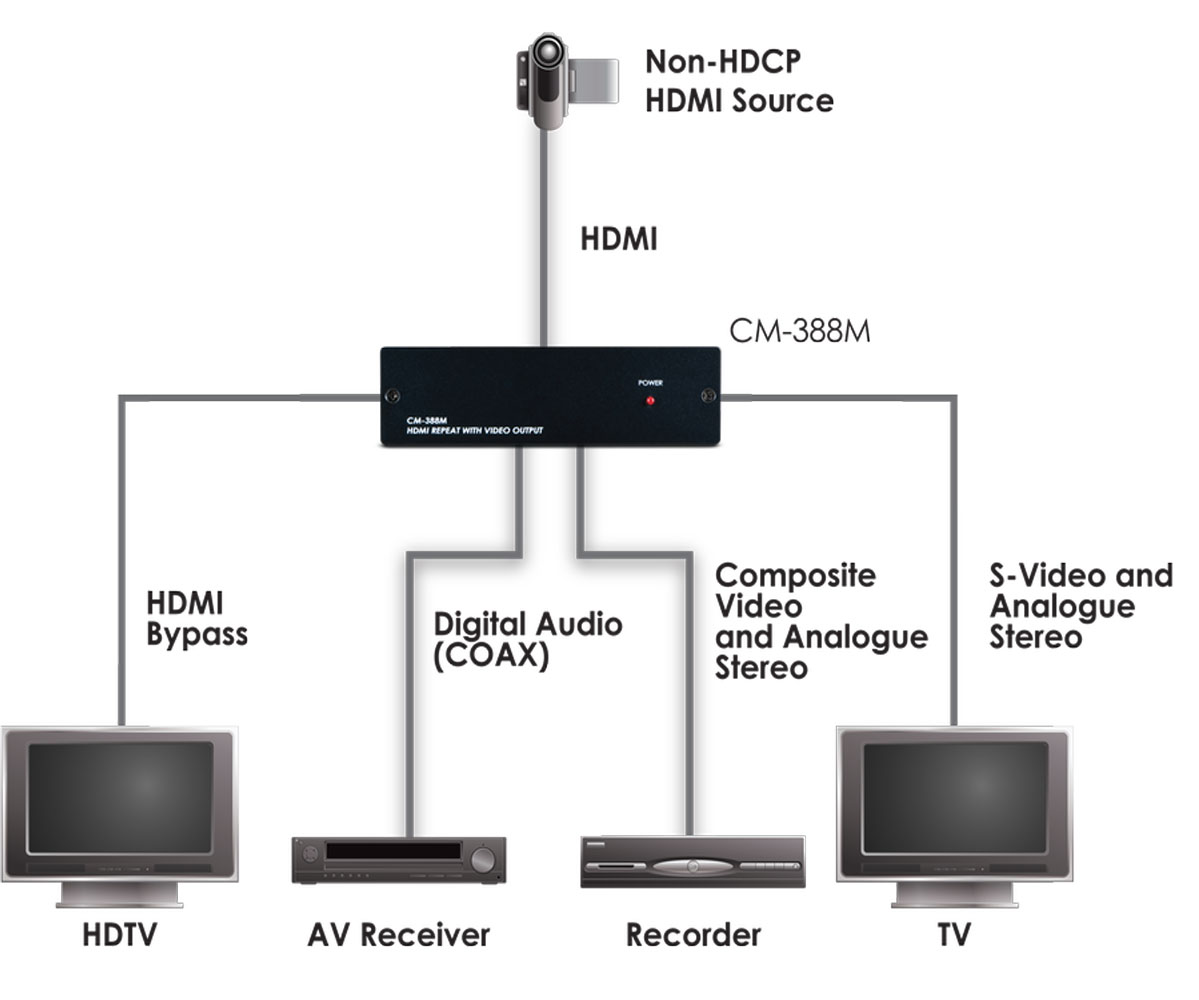

Schematics



Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data] & 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]
  • Outputs: 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM], 1x HDMI [1x HDMI (Bypass) Uncompressed AV and Data], 1x RCA [1x Composite], 1x S-video plug [1x S-video] & 4x RCA [2x Analogue Stereo (L/R)]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 140mm x 128mm x 38mm
  • Net Weight: 540g
  • Gross Weight: 1000g



Box Contains:

  • CYP HDMI Down-Scaler with Bypass Output
  • UK Power Supply
  • User's Manual



Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data] & 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]
  • Outputs: 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM], 1x HDMI [1x HDMI (Bypass) Uncompressed AV and Data], 1x RCA [1x Composite], 1x S-video plug [1x S-video] & 4x RCA [2x Analogue Stereo (L/R)]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 140mm x 128mm x 38mm
  • Net Weight: 540g
  • Gross Weight: 1000g
