CYP AU-11CA-4K22 HDMI Audio Embedder with built-in Repeater (4K, HDCP2.2, HDMI2.0)

£292.74 £243.95
SKU
CYP AU-11CA-4K22
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The AU-11CA-4K22 Audio Embedder enables you to insert an external audio signal into any HDMI source signal. Product Code - AU-11CA-4K22.

CYP  AU-11CA-4K22 HDMI Audio Embedder with built-in Repeater (4K, HDCP2.2, HDMI2.0)



The CYP Audience range offers practical solutions for audio conversion and distribution within any AV installation. Products in the range include digital to analogue converters (DAC’s), switching devices and audio breakout from HDMI. These products offer real world solutions for both the audio enthusiast and professional installer alike. The AU-11CA-4K22 Audio Embedder enables you to insert an external audio signal into any HDMI source signal.

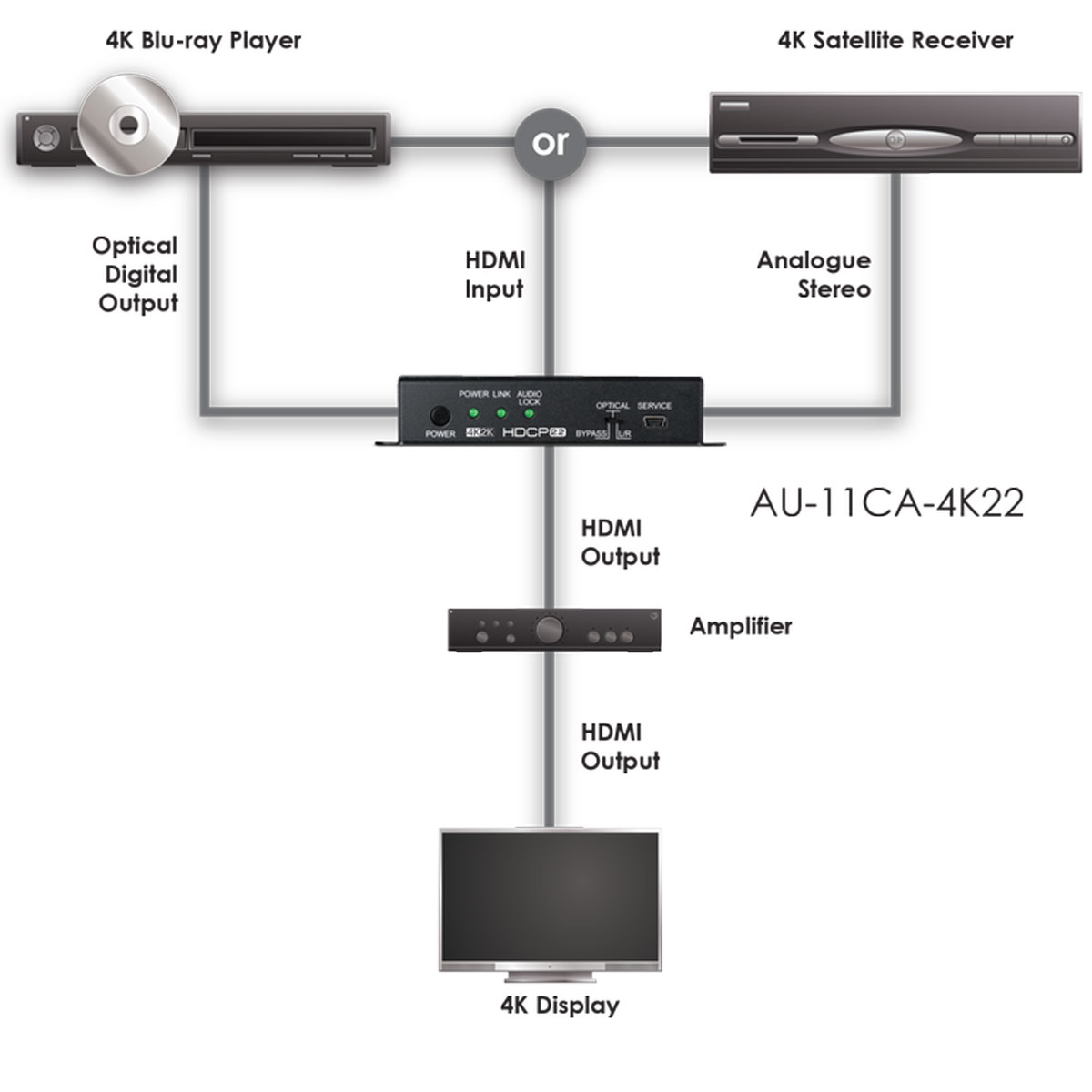

This device allows you to insert analogue or digital stereo and multi-channel digital surround sound signals (via Optical) to give users the flexibility to manage their audio signals within a wider AV installation. In addition to it's primary function as an audio embedder, AU-11CA-4K22 also acts as a HDMI repeater by boosting the HDMI signal enabling up to 10m HDMI cables to be run from the HDMI output .

This device supports HDMI 2.0, HDCP 2.2 and 4K resolutions enabling flexible audio signal management into 4K ultra high definition video signal paths.



Features:

  • Product Code - AU-11CA-4K22
  • HDMI 2.0, HDCP 2.2 and DVI compliant
  • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/ 50/60 YUV_444 & 4096x2160@24/25/30/50/60 YUV_444)
  • Supports HDMI high resolution digital audio format bypass, LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
  • HDMI supports high-bit-rate (HBR) audio
  • Select which audio source you require to be embedded onto the HDMI output
  • Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz
  • Supports LPCM Stereo, DTS and Dolby Digital via Optical input
  • Features CEC bypass
  • HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p
  • 2 Years Warranty



 AU-11CA_Square01



Specifications:

  • Inputs: 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)], 1x Toslink [1x Optical 2 Channel LPCM] & 1x USB Mini B [1x Service - Propriety Data]
  • Outputs: 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 118mm x 128mm x 25mm
  • Net Weight: 382g
  • Gross Weight: 818g



Icon 4KHdr hdmi Icon Icon 4k-2k 4k-2k





Box Contains:

  • CYP HDMI Audio Embedder with built-in Repeater (4K, HDCP2.2, HDMI2.0)
  • UK Power Supply
  • User's Manual



Specifications:

  • Inputs: 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)], 1x Toslink [1x Optical 2 Channel LPCM] & 1x USB Mini B [1x Service - Propriety Data]
  • Outputs: 1x HDMI [1x HDMI 2.0 Uncompressed AV and Data]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 118mm x 128mm x 25mm
  • Net Weight: 382g
  • Gross Weight: 818g
