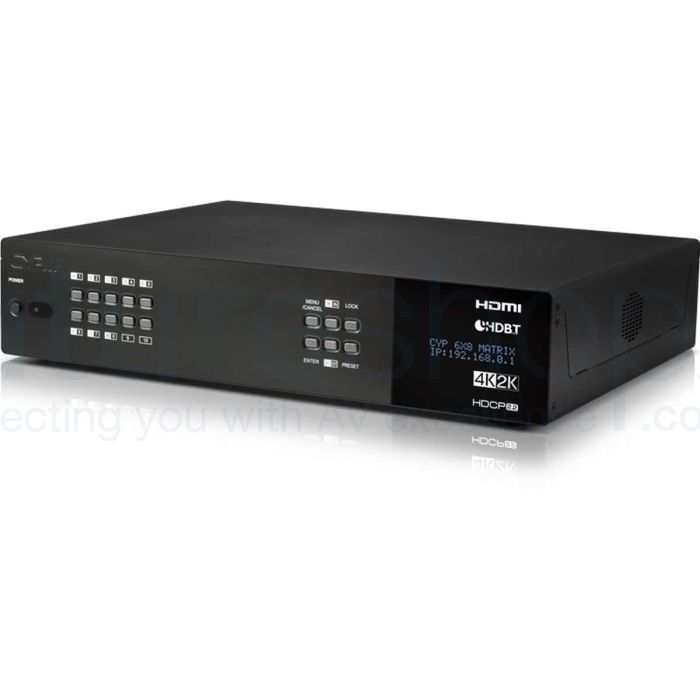

CYP 6x8 HDMI HDBaseT Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)

£6,244.43 Special Price £5,993.65 £4,994.71
SKU
PUV-662-4K22
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The PUV-662-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT outputs and 2 independent HDMI2.0 outputs.

CYP 6x8 HDMI HDBaseT Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)



​​The PUV-662-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.

The PUV-662-4K22 matrix incorporates an independent audio matrix with 8 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1530RX receiver to be routed back to the audio matrix.

LAN connectivity provides a 100BaseT network for smart TV's or games consoles in every zone. The matrix has a built-in pattern generator which can be used to verify the video signal on any of its 8 output ports. The Power over HDBaseT (PoH) function provides power to compatible receivers.

Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through to the receivers.

The PUV-662-4K22 is designed to be used with PUV-1530RX or PUV-1510RX receivers that can utilise the PoH capabilities of the matrix.



Features:

  • HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
  • Routes six HDMI sources to eight displays using six HDBaseT outputs and two independent HDMI outputs
  • HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • Supports resolutions up to 4K@60 (RGB 4:4:4) on HDMI output ports
  • Supports automatic 4K@60 RGB 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs
  • 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio zone selection, and fully independent audio only zones
  • Supports Digital to Analogue Conversion (DAC) and Analogue to Digital Conversion (ADC) for audio integration
  • Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on direct audio outputs
  • Optical Audio Return (OAR)
  • Advanced internal and external EDID management with 4 sets of configurable EDID settings
  • Internal test pattern generation for self-testing and sink device testing. (Internal test patterns up to and including 4K signals)
  • Supports HDCP repeating and CEC functions
  • Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • 2U rack mounted design

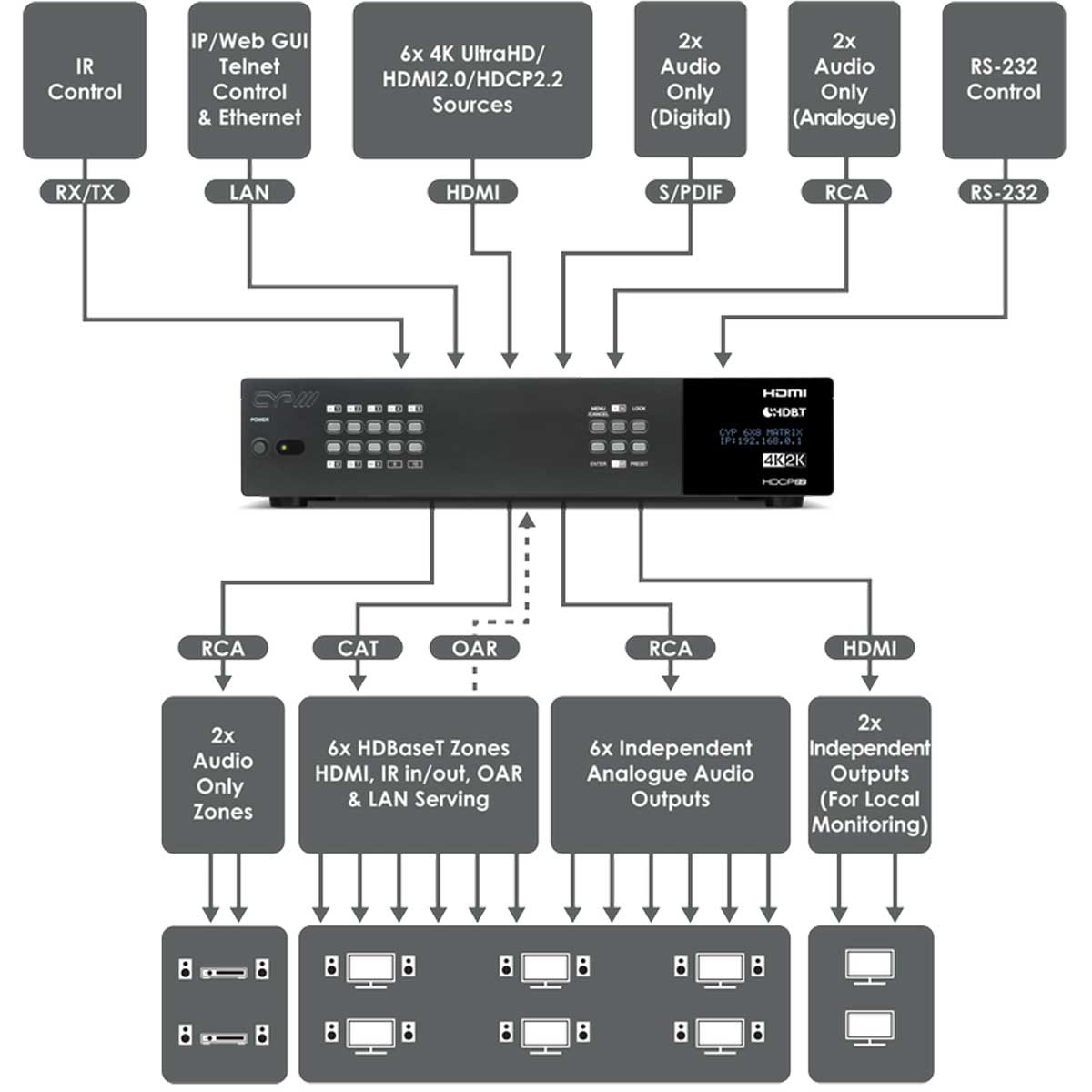

Schematics



Specification:

  • Inputs:
    • 6x HDMI [6x HDMI Uncompressed AV and Data]
    • 4x RCA [2x Analogue Stereo (L/R)]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
    • 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]
    • 7x 3.5mm Stereo mini-jack [7x Infra Red Receiver]
    • 1x 9pin Dsub [1x RS-232 Data]
    • 1x RJ45 [1x IP Control / LAN Serving]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 6x RJ45 [6x HDBaseT HDMI & Propriety Data]
    • 12x RCA [6x Zone - Analogue Stereo (L/R)]
    • 4x RCA [2x Extended - Analogue Stereo (L/R)]
    • 7x 3.5mm Stereo mini-jack [7x Infra Red Emitter]
  • POE PSU: PoH
  • PSU: 24V/6.25A
  • Dimensions: 316mm [W] x 438mm [D] x 96mm [H]
  • Net Weight: 6000g
  • Gross Weight: 8000g



Box Contains:

  • 1x PUV-62-4K22
  • 1x Manual
  • 1x Remote Control (CR-163)
  • 2x IR Extender Cable
  • 2x IR Blaster Cable
  • 2x 24V/6.25A DC Power Adaptor
  • 2x Power Cord
  • 1x Rack Ear Set



LAN SERVING HDMI POH ? 12bit IpControl HDBT 3d3 8bit8 4KUD 10bit

Specification:

  • Inputs:
    • 6x HDMI [6x HDMI Uncompressed AV and Data]
    • 4x RCA [2x Analogue Stereo (L/R)]
    • 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
    • 1x RCA [1x Coaxial DTS / Dolby Digital / 2 Channel LPCM]
    • 7x 3.5mm Stereo mini-jack [7x Infra Red Receiver]
    • 1x 9pin Dsub [1x RS-232 Data]
    • 1x RJ45 [1x IP Control / LAN Serving]
    • 1x USB Type A [1x Service Port Propriety Data]
  • Outputs
    • 2x HDMI [2x HDMI Uncompressed AV and Data]
    • 6x RJ45 [6x HDBaseT HDMI & Propriety Data]
    • 12x RCA [6x Zone - Analogue Stereo (L/R)]
    • 4x RCA [2x Extended - Analogue Stereo (L/R)]
    • 7x 3.5mm Stereo mini-jack [7x Infra Red Emitter]
  • POE PSU: PoH
  • PSU: 24V/6.25A
  • Dimensions: 316mm [W] x 438mm [D] x 96mm [H]
  • Net Weight: 6000g
  • Gross Weight: 8000g
