CYP 4-Way 4K HDMI Switcher with advanced EDID management, IP, RS-232, & IR Control

£263.37 £219.47
SKU
EL-41S-4K
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The 4x1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. Product Code - EL-41S-4K

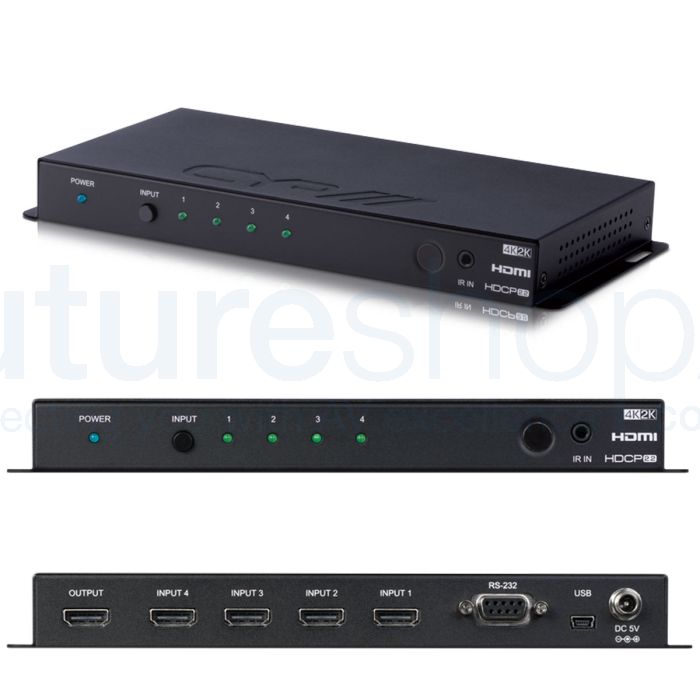

CYP 4-Way 4K HDMI Switcher with advanced EDID management, IP, RS-232, & IR Control



The 4x1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays.

It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def. lossless audio. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232, Telnet and WebGUI control.



Features:

  • Product Code - EL-41S-4K
  • HDMI (with 3D & 4K2K supported) and HDCP compliant
  • Select any one of four 4K HDMI sources and display on a 4K HDTV display with fast switching between sources
  • Supports 3D signals pass-through
  • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 50/60 YUV_420 & 4096x2160@24, 50/60 YUV_420)
  • Supports HDMI data rate from 300Mbps to 3Gbps and 'Deep Color' up to 1080p/36-bit
  • Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
  • Supports Audio pass-through of High-definition Audio formats (LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio)
  • HDMI inputs support ‘Standard’ and ‘Apple’ HDCP modes. Selecting ‘Apple’ mode guarantees the compatibility of Apple devices with this matrix
  • Supports Telnet and WebGUI control
  • 2 Years Warranty

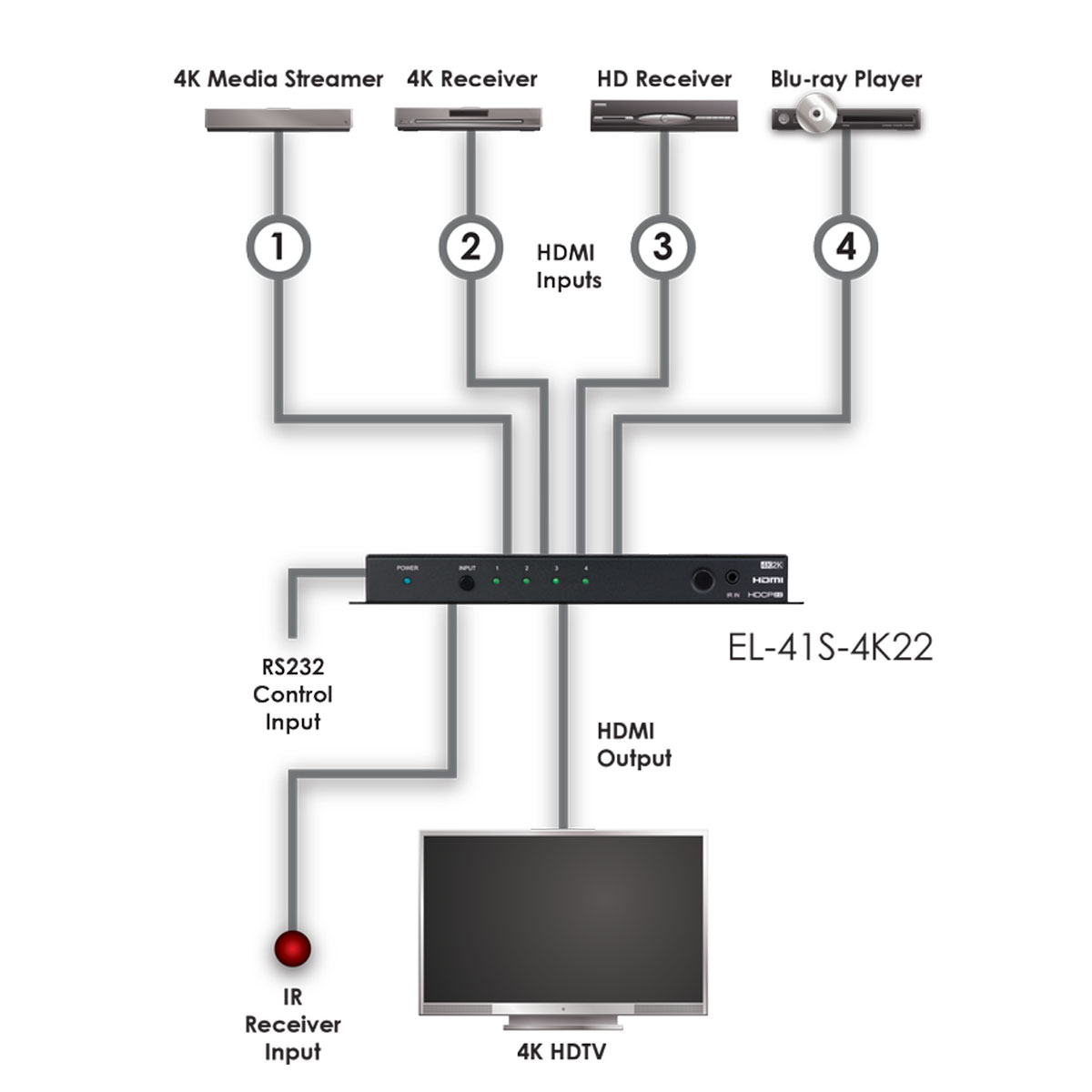

Schematics



Specifications:

  • Inputs: 4x HDMI [4x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x 9pin Dsub [1x RS-232 Data], 1x RJ45 [1x IP Control], 1x USB Type A [1x Service Port Propriety Data]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 215mm x 140mm x 50mm
  • Net Weight: 400g
  • Gross Weight: 1160g



8bit 10bit 12bit 4k-2k 4KUHD
3d



Box Contains:

  • CYP 4-Way HDMI Switcher with advanced EDID management, IP, RS-232, & IR Control (4K resolution support)
  • UK Power Supply
  • User's Manual



Specifications:

  • Inputs: 4x HDMI [4x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver], 1x 9pin Dsub [1x RS-232 Data], 1x RJ45 [1x IP Control], 1x USB Type A [1x Service Port Propriety Data]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
  • PSU: 5V/2.6A
  • Dimensions (WxDxH): 215mm x 140mm x 50mm
  • Net Weight: 400g
  • Gross Weight: 1160g
