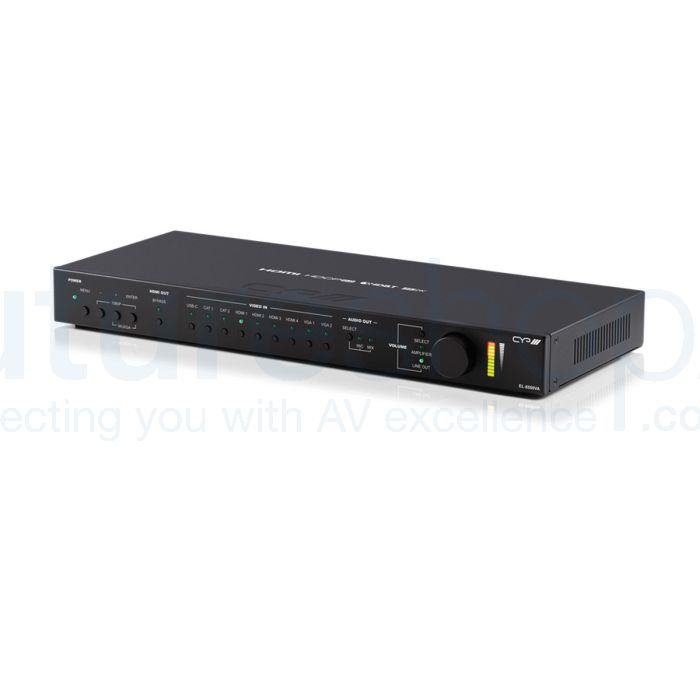

CY EL-8500VA Advanced 4K HDMI, USB Type C, VGA, and HDBaseT Presentation Switch

£2,575.79 £2,146.49
SKU
CY EL-8500VA
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The EL-8500VA supports 4 different video inputs (HDMI, USB-C, HDBaseT and VGA) alongside a microphone, making it an extremely versatile Presentation Switch that delivers 4K/60 .

CY EL-8500VA Advanced 4K HDMI, USB Type C, VGA, and HDBaseT Presentation Switch



The EL-8500VA supports 4 different video inputs (HDMI, USB-C, HDBaseT and VGA) alongside a microphone, making it an extremely versatile Presentation Switch that delivers 4K/60 .



What CYP say



The EL-8500VA is a multi-format scaling HDMI, USB Type C, HDBaseT, and VGA input presentation switch, which allows the user to output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.

This unit also includes multiple analogue stereo audio inputs and a microphone input along with an amplified analogue stereo output to provide a range of audio routing and mixing flexibility. The built-in audio mixer function allows the user to mix audio from any analogue input with the microphone input for presentation or lecture theatre usage. The ability to switch back and forth between mixed and non-mixed audio simplifies the presentation experience.

A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate functions with the simple press of a button. Standard control is available via front panel buttons with an On-Screen Display (OSD), WebGUI, Telnet and RS-232.





Specification

  • Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
  • HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
  • Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Audio mixer function allows the mixing of audio from any analog input with the microphone input
  • Built in 2 x 20 watts audio amplifier
  • Trigger Control Keypad support for easy, single-button, function activation (Optional)
  • Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT Receiver (PD) (compatible Receivers only)
  • Comprehensive EDID and HDCP management (HDCP 2.2)
  • Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers
  • USB for service/firmware updates



  • Inputs
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 2x RJ45 [2x HDBaseT HDMI & Propriety Data]
    • 2x 15pin Dsub [2x VGA RGBHV]
    • 1x 6.35mm Stereo Jack [1x Microphone]
    • 6x 3.5mm Stereo mini-jack [6x Stereo(L/R)]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x 9pin Dsub [1x RS-232 Control RS-232 Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x RJ45 [1x Control IP]
    • 1x USB-C [1x USB-C / Thunderbolt]
  • Outputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
    • 2x 3.5mm Stereo mini-jack [2x Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • POE PSU- PoH
  • PSU- 24V/6.25A
  • Dimensions- 432mm [W] x 194mm [D] x 49mm [H]
  • Net Weight- 2500g
  • Gross Weight- 4100g



About CYP

Our vision is simple, to deliver market leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. We have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that we can always provide our partners with innovative application of the very latest technology.

From our European headquarters in Shepperton (UK), we support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry leading after sales support and training, we provide our partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in our products that makes us the perfect manufacturer partner.





  • Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
  • HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
  • Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Audio mixer function allows the mixing of audio from any analog input with the microphone input
  • Built in 2 x 20 watts audio amplifier
  • Trigger Control Keypad support for easy, single-button, function activation (Optional)
  • Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT Receiver (PD) (compatible Receivers only)
  • Comprehensive EDID and HDCP management (HDCP 2.2)
  • Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers
  • USB for service/firmware updates



  • Inputs
    • 4x HDMI [4x HDMI Uncompressed AV and Data]
    • 2x RJ45 [2x HDBaseT HDMI & Propriety Data]
    • 2x 15pin Dsub [2x VGA RGBHV]
    • 1x 6.35mm Stereo Jack [1x Microphone]
    • 6x 3.5mm Stereo mini-jack [6x Stereo(L/R)]
    • 1x Phoenix (10 pin) [1x Trigger In (8)]
    • 1x 9pin Dsub [1x RS-232 Control RS-232 Data]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
    • 1x RJ45 [1x Control IP]
    • 1x USB-C [1x USB-C / Thunderbolt]
  • Outputs
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
    • 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
    • 2x 3.5mm Stereo mini-jack [2x Stereo(L/R)]
    • 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
  • POE PSU- PoH
  • PSU- 24V/6.25A
  • Dimensions- 432mm [W] x 194mm [D] x 49mm [H]
  • Net Weight- 2500g
  • Gross Weight- 4100g
