Blustream SW41HDBT 4-way HDBaseT and HDMI Input Switch

£1,034.88 £862.40
SKU
SW41HDBT
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Blustream SW41HDBT is a 4-way HDMI switch supporting 4K HDR and HDBaseT™ technology for seamless audio and video distribution. Ideal for professional settings, it offers PoC, multiple control options, and easy setup with advanced CSC technology, ensuring reliable connectivity and high-quality transmission up to 70m for boardrooms, classrooms, and more.

promotional_banner_4
promotional_banner_4

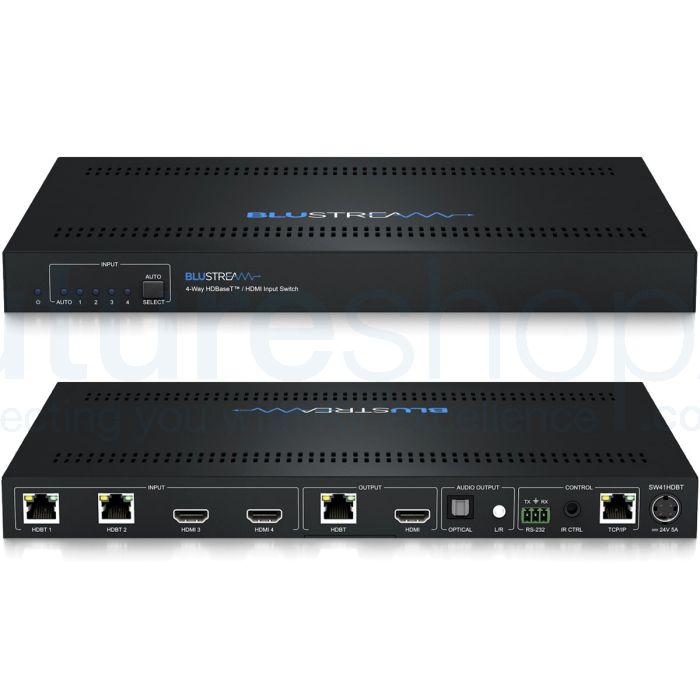

Blustream SW41HDBT 4-way HDBaseT HDMI Input Switch



The Blustream SW41HDBT 4-Way HDBaseT HDMI Input Switch is a versatile HDMI switcher designed for seamless 4K video and audio distribution, perfect for boardrooms, classrooms, and collaborative spaces. With support for 4 HDMI 2.0 and HDBaseT™ inputs, this switch enables simultaneous HDMI/HDBaseT™ output using advanced Colour Space Conversion (CSC) technology for flawless 4K HDR transmission. It features Power over Cable (PoC) to power compatible Blustream devices, offers multiple control options (front panel, IR, RS-232, TCP/IP), and an intuitive web GUI for configuration. Ideal for complex setups, the SW41HDBT simplifies connectivity with advanced downscaling and extended transmission up to 70m, delivering a dynamic audio-visual experience.



Here is what Blustream say about the SW41HDBT



Our SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilising CSC technology to deliver HDMI and HDBaseT™ inputs to simultaneous HDMI / HDBaseT™ outputs.

The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.

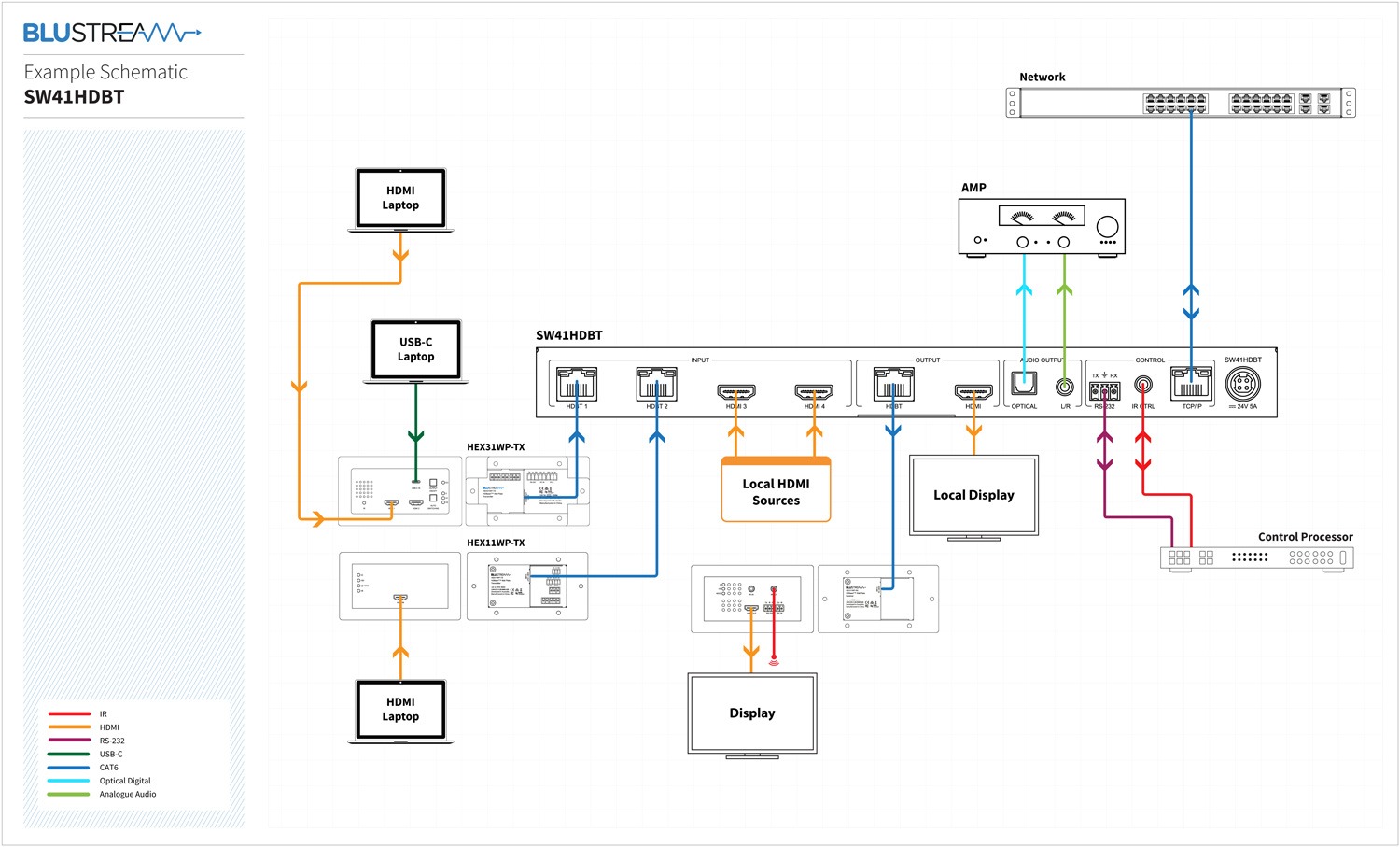

The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.



Features

  • Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT™
  • HDBaseT™ input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT™ output supports 4K UHD video up to 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*
  • Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers*
  • Compatible with all Blustream HDBaseT™ transmitters and receivers*
  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
  • Web interface module for configuration and control of switch
  • Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP
  • Auto source selection supported by compatible Blustream HDBaseT™ transmitters only*
  • HDCP 2.2 compliant with advanced EDID management

*Technical performance is subject to the features supported on the connected HDBaseT™ transmitter / receiver





Specification

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC

Box Contents

  • 1 x SW41HDBT
  • 1 x 24V/5A DC Power Supply
  • 1 x IR Receiver
  • 1 x IR Control Cable - 3.5mm - 3.5mm
  • 1 x RS-232 Control Cable
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC

Box Contents

  • 1 x SW41HDBT
  • 1 x 24V/5A DC Power Supply
  • 1 x IR Receiver
  • 1 x IR Control Cable - 3.5mm - 3.5mm
  • 1 x RS-232 Control Cable
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide
