Blustream SP24AB-8K 4-Way 8K HDMI Splitter

£339.00 £282.50
SKU
SP24AB-8K
Free UK Delivery
5 Years
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The SP24AB-8K HDMI 2.1 splitter is Blustream's first HDMI switcher splitter solution supporting the latest 8K resolutions.

promotional_banner_4
promotional_banner_4

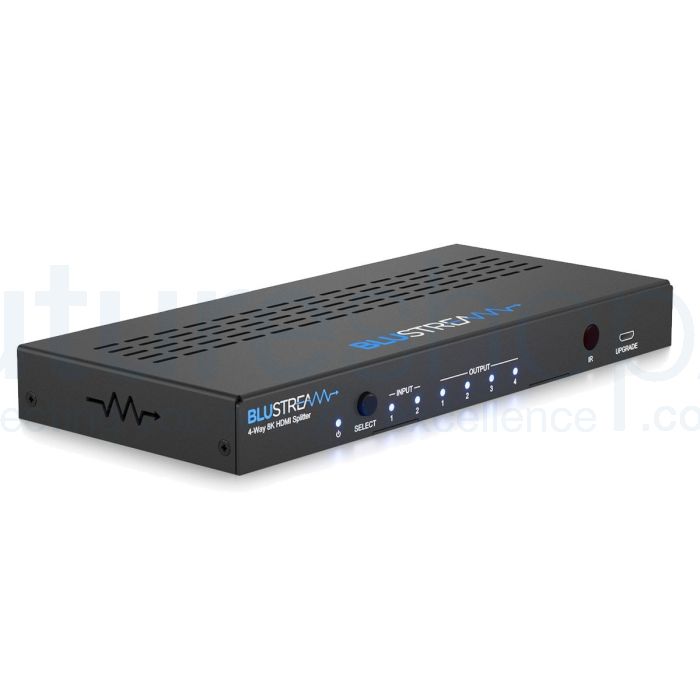

Blustream SP24AB-8K 4-Way 8K HDMI Splitter with Audio Breakout, and EDID Management



Blustream's SP24AB-8K HDMI 2.1 splitter is the perfect solution for those who need to distribute a single Ultra HD signal up to 8K 60Hz and 4K 120Hz.

With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5V hot plug, a new TMDS signal; or manually using IR or the front panel. Analogue and coaxial digital (S/PDIF) audio breakout allows for audio integration, HDCP2.3 compliant, and advanced EDID management.



Key Features

  • Features 2x selectable HDMI 2.1 inputs that are split to 4x HDMI outputs
  • Supports HDMI 2.1 specification including HDR (40Gbps maximum)
  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Auto HDMI source switching via 5V and / or TMDS signal sensing
  • Manual HDMI source switching via front panel and IR
  • Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
  • 5V / 12V IR Compatible
  • HDCP 2.3 compliant with advanced EDID management



Specification

  • Video Input Connectors: 2x HDMI Type A, female
  • Video Output Connectors: 4x HDMI Type A, Female RJ45 connector
  • Audio Output Connectors: 1x Analogue left / right audio (3.5mm stereo jack), 1x Optical S/PDIF socket
  • IR Input Port: 1x 3.5mm stereo jack
  • Upgrade Port: 1x Micro USB connector
  • Casing Dimensions (W x D x H): 212mm x 94mm x 23mm
  • Power Supply: 12V/2.5A DC connector
  • Box Dimensions (W x D x H): 265 x 135 x 90mm
  • Shipping Weight: 1kg
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)



Box Contents

  • 1 x SP24AB-8K
  • 1 x 12V/2.5A DC power supply
  • 1 x IR Receiver
  • 1 x Mounting kit
  • 4 x Rubber Feet
  • 1 x Quick Reference Guide



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 2x HDMI Type A, female
  • Video Output Connectors: 4x HDMI Type A, Female RJ45 connector
  • Audio Output Connectors: 1x Analogue left / right audio (3.5mm stereo jack), 1x Optical S/PDIF socket
  • IR Input Port: 1x 3.5mm stereo jack
  • Upgrade Port: 1x Micro USB connector
  • Casing Dimensions (W x D x H): 212mm x 94mm x 23mm
  • Power Supply: 12V/2.5A DC connector
  • Box Dimensions (W x D x H): 265 x 135 x 90mm
  • Shipping Weight: 1kg
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)
